4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity 288 Cores

China 4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity 288 Cores supplier
4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity 288 Cores supplier 4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity 288 Cores supplier 4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity 288 Cores supplier 4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity 288 Cores supplier

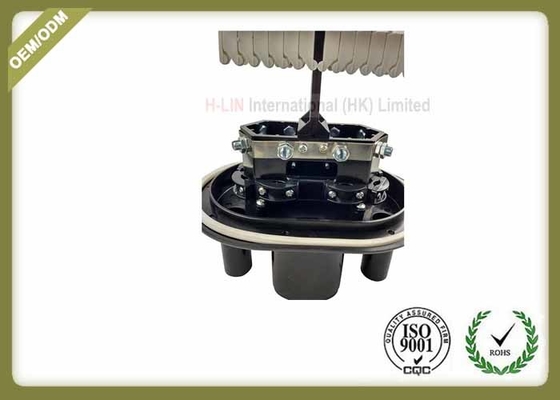

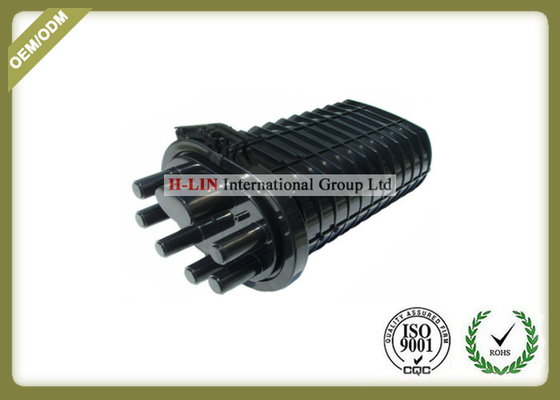

Large Image :  4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity 288 Cores

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: Rohs/CE
Model Number: HL-FOSC-V306

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: negotiable
Packaging Details: 1pc for a separate box 4pcs for a carton,size:58*52*51.5cm
Delivery Time: 1week after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Cable Port: 6 Small Ports 1 Big Port Capacity: Max 288core
Material: PC Dimension (cm): Long:50cm Diameter:25cm
Cable Diameter: 8-40MM Weight/pc: 4kg
Sealing Way: Rubber Ring The Application Of Temperature: -40℃~65℃
High Light:

fiber optic cable joint closure

,

fiber enclosure box

4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity 288 Cores





Description about Fiber Optic Closure:





Fiber Optic Closure, also called the cable connection box, is the end of the local access cable, and then through the optical fiber jumper access to optical switch, which prevent the nature of hot and cold, light, oxygen and microbial materials caused by aging, and has excellent mechanical strength.The shell of optical closure and its body structure can bear the worst environmental change, at the same time, flame retardant, waterproof, shock, impact, stretch and twist protected cable.



This model Fiber Optical Closure, with innovative design, manufacturing and material selection, excellent sealing technology, to ensure the reliability and stability of the product. It can provide reliable, solid and flexible protection for the direct, terminal or divergent splicing of optical fiber.





Features:


Aging resistance: good stability for heat, heat radiation, air, ozone and so on.


Corrosion resistance: strong resistance to dilute acids, salts, oxidants, aliphatic hydrocarbons and so on.


Sealing technology: The use of reusable components to open seal to ensure good airtightness and

waterproof performance.


Mechanical properties: The use of high-strength engineering plastic shell ,and the external fasteners components are made of high quality stainless steel,that able to withstand harsh conditions such as vibration, impact, cable stretch distortion and strong temperature changes.


Locking device: Does not require special tools, easy to install and open the duplicate.


Divergence function: 6 small 1 big inlet and outlet design


Connection function: using stacked flip type structure, it does not need to disassemble other splice tray.

Splice Tray capacity: single core bundle, 12 cores per splice tray, double core bundles, 24 cores per splice tray.
Maximum capacity fiber optic cable access: the largest diameter of the port optical cable is 40cm
The maximum holds 12 splice trays.





Specifiaction:



Product outlook size Long:500mm Diameter:250
Product material quality PC(Polycarbonate)
Product weight Approximately4kg
Suitable Dia of cable 8-40mm
Fibers/Tray 12 Or24
Max capacity(F) 288 in two layers
Outside box size 58*52*51.5
Each packing quantity 4 pieces





Components:



(1)a cover

(2), an optical fiber fusion disc

(3), a pressing clamp

(4), a silicone rubber

(5) for sealing, an overhead hanger

(6), and other parts.

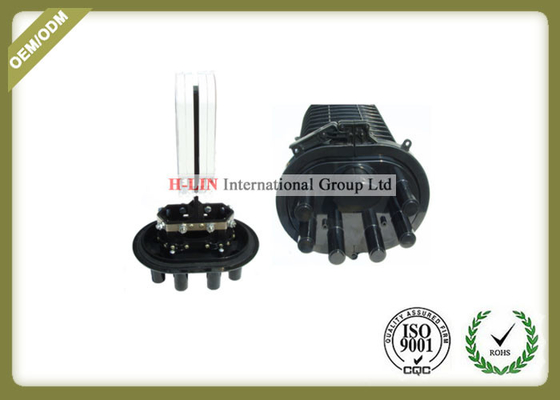

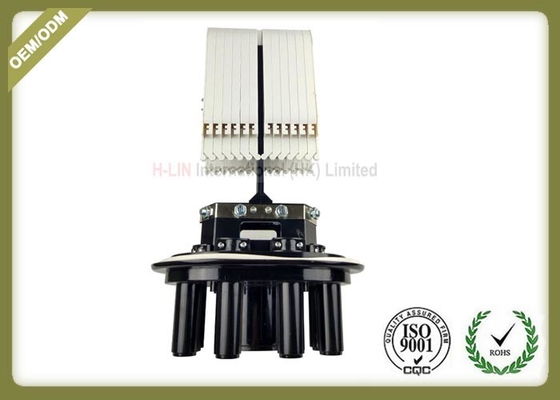

4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity 288 Cores



4 In 4 Out Dome Type Optical Fiber Cable Joint Closure Big Capacity 288 Cores





Shipping

  • If the quantity of order is not very big ,we could send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS
  • If order is big,we will use air shipment or sea shipment.
