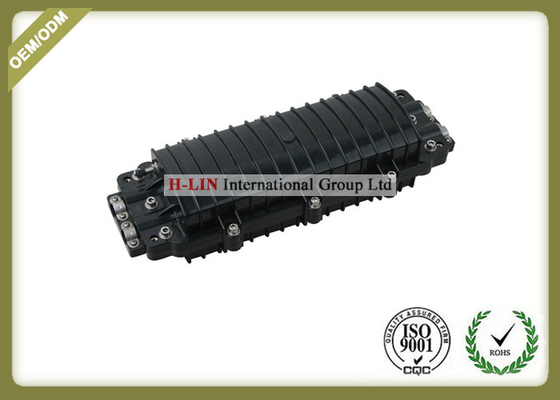

48 Cores Horizontal Fiber Optic Closure For Splicing And Protecting Inline Type

China 48 Cores Horizontal Fiber Optic Closure For Splicing And Protecting Inline Type supplier
48 Cores Horizontal Fiber Optic Closure For Splicing And Protecting Inline Type supplier 48 Cores Horizontal Fiber Optic Closure For Splicing And Protecting Inline Type supplier

Large Image :  48 Cores Horizontal Fiber Optic Closure For Splicing And Protecting Inline Type

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: ISO
Model Number: HL-FOSC-H201

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: negotiable
Packaging Details: 1pc for a separate box 8pcs for a carton,size:50*40*55cm
Delivery Time: 1week after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Cable Port: 2 In 2out Capacity: Max 48core
Material: PC Dimension (cm): 46.5*18*12.2
Cable Diameter: 8-22MM Weight/pc: 2.5kg
Sealing Way: Silica Gel The Application Of Temperature: -40℃~65℃

In-Line type 2 in 2 out 48cores Horizontal Fiber Optic Splice Closure with PC material



1) It can be used for splicing and protecting optical fibers in straight-through

or branching applications


2) High strengthened sealant, fixed bolts and cable fixed hoop ensures waterproof,
long-term reliability and usage





Description about Fiber Optic Closure:



Fiber Optic Closure, also called the cable connection  box, is the end of the local access cable, and then through the optical fiber jumper access to optical switch, which prevent the nature of hot and cold, light, oxygen and microbial materials caused by aging, and has excellent mechanical strength.The shell of optical closure and its body structure can  bear the worst environmental change, at the same time, flame retardant, waterproof, shock, impact, stretch and twist protected cable.



Features:



The Fiber Optic Closure has the function for protecting and splicing,The body adopts the reinforced plastic material, which has the advantages of high strength, corrosion resistance, mature structure, reliable sealing and convenient construction.



Detailed Description:





This model Fiber Optical Closure, with innovative design, manufacturing and material selection, excellent sealing technology, to ensure the reliability and stability of the product. It can provide reliable, solid and flexible protection for the direct, terminal or divergent splicing of optical fiber.

Performance:
Aging resistance: good stability for heat, heat radiation, air, ozone and so on.
Corrosion resistance: strong resistance to dilute acids, salts, oxidants, aliphatic hydrocarbons and so on.
Sealing technology: The use of reusable components to open seal  to ensure good airtightness and waterproof performance.
Mechanical properties: The use of high-strength engineering plastic shell that able to withstand harsh conditions such as vibration, impact, cable stretch distortion and strong temperature changes.
Locking device: Does not require special tools, easy to install and open the duplicate.
Connection function: using stacked flip type structure, it does not need to disassemble other splice tray.
Capacity:
Splice Tray capacity: single core bundle, 12 cores per splice tray,
double core bundles, 24 cores per splice tray
Maximum capacity fiber optic cable access: the largest diameter of the port optical cable is 22cm
The maximum holds 4 splice trays.





Application:
aerial, direct-buried, wall-mounting, duct-mounting





Specifiaction:



48 Cores Horizontal Fiber Optic Closure For Splicing And Protecting Inline Type





Components:





48 Cores Horizontal Fiber Optic Closure For Splicing And Protecting Inline Type



Package:





48 Cores Horizontal Fiber Optic Closure For Splicing And Protecting Inline TypeFactory Price FTTH Indoor 24FO ABS Fiber Terminal Enclosure  with splice tray
