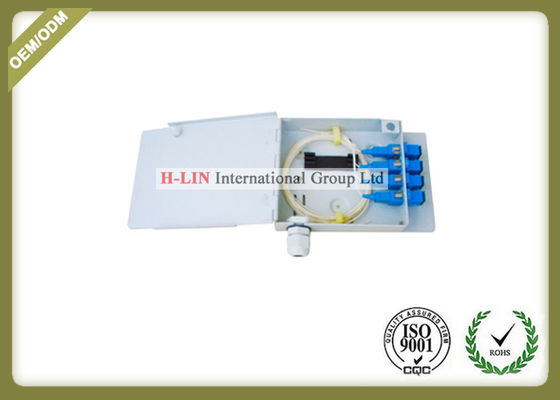

Metal Fiber Optic Connection Box 4 Core 8 Core 12 Core For Indoor Wall Mount

China Metal Fiber Optic Connection Box 4 Core 8 Core 12 Core For Indoor Wall Mount supplier

Large Image :  Metal Fiber Optic Connection Box 4 Core 8 Core 12 Core For Indoor Wall Mount

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE ISO9001
Model Number: HL-MOTB-004

Payment & Shipping Terms:

Minimum Order Quantity: 20Pieces
Price: negotiable
Packaging Details: 1pc/box,22pcs/carton,24kg/carton,size;61*37*37cm
Delivery Time: 1week after get payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400Pieces per Day
Contact Now
Detailed Product Description
Application: FTTH System Dimension Of 8core: 200x165x40 Mm
Material: Metal Or Cold-roll Steel Capacity: 4core,8cores Or 12cores,16cores
Adapters: 4~16 Adapters

Metal Fiber Optic Termination Box 4c 8c or 12cores for indoor wall mounting use





Applications:

* widely used in FTTH access network.

* Telecommunication Networks

* CATV Networks

* Data communications Networks

* Local Area Networks



Description:



Fiber optic terminal box is a FTTH mini optic terminal box,It is used in the end termination of residential buildings andvillas, to fix and splice with Pigtails or connected fast connectors can be installed on the outside wall.



Optical fiber terminal box is a cable terminal,one side is cable, the other side is pigtail, it equals to split cable into a single fiber cable equipment, installed on the wall at the user cable terminal box.Its function is to provide the welding between optical fibers, between fibers and pigtails, and the transfer of optical connectors. And provide mechanical protection and environmental protection for optical fiber and its components, and allow appropriate inspection to maintain the highest standard optical fiber management





1. provide a protective connection for cable and wiring pigtail.
2. make the metal component of optical cable insulated from the end shell of optical cable, and can easily lead out the grounding
3. provide the location of optical cable terminal and the space of optical fiber storage at the remaining end, so as to facilitate the installation operation.
4. the box body with enough impact strength is fixed, which is convenient for installation in different occasions.
5. may choose the hanging wall installation or directly placed in the groove and other installation methods.




Features:
Cold-roll steel, electrostatic painting
Suitalbe for different adapters: FC, SC, ST, LC …
4~16 fibers splicing module inside
4~16 adapters can be loaded
Hinge and convenient press-pull button lock design
Indoor using





Drawing:





Metal Fiber Optic Connection Box 4 Core 8 Core 12 Core For Indoor Wall Mount



Metal Fiber Optic Connection Box 4 Core 8 Core 12 Core For Indoor Wall Mount





Specification:





Metal Fiber Optic Connection Box 4 Core 8 Core 12 Core For Indoor Wall Mount







Production & Packing:





Metal Fiber Optic Connection Box 4 Core 8 Core 12 Core For Indoor Wall Mount





Metal Fiber Optic Connection Box 4 Core 8 Core 12 Core For Indoor Wall Mount
