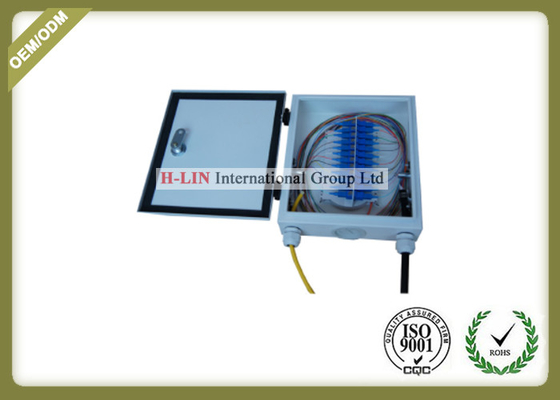

Outdoor Fiber Optic Termination Box 12 Cores With Cold Roll Steel Material
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | FTTH System | Dimension Of 8core: | 300x230x70 Mm |
|---|---|---|---|
| Material: | Metal Or Cold-roll Steel | Capacity: | 12cores, |
| Adapters: | 12 Adapters | ||
| High Light: | fiber termination cabinet,fiber optic terminal block |
||
Outdoor Metal Fiber Optic Termination Box 12cores with Cold roll steel material
Features:
Cold-roll steel, electrostatic painting
3 cable ports, cables diameter: φ8.5-φ18mm
3 cable ports, cables diameter: φ8.5-φ18mm
ABS splice tray, 12 fibers per tray
Max capacity: adapters installed capacity is 12F
Max capacity: adapters installed capacity is 12F
Environmental temperature: -40℃~70℃
Different types of adapters could be installed, such as SC, ST, FC, LC, etc.
Different types of adapters could be installed, such as SC, ST, FC, LC, etc.
Outdoor, indoor using, IP65
Description:
Fiber optic terminal box is a FTTH mini optic terminal box,It is used in the end termination of residential buildings andvillas, to fix and splice with Pigtails or connected fast connectors can be installed on the outside wall.
Optical fiber terminal box is a cable terminal,one side is cable, the other side is pigtail, it equals to split cable into a single fiber cable equipment, installed on the wall at the user cable terminal box.Its function is to provide the welding between optical fibers, between fibers and pigtails, and the transfer of optical connectors. And provide mechanical protection and environmental protection for optical fiber and its components, and allow appropriate inspection to maintain the highest standard optical fiber management
1. provide a protective connection for cable and wiring pigtail.
2. make the metal component of optical cable insulated from the end shell of optical cable, and can easily lead out the grounding
3. provide the location of optical cable terminal and the space of optical fiber storage at the remaining end, so as to facilitate the installation operation.
4. the box body with enough impact strength is fixed, which is convenient for installation in different occasions.
5. may choose the hanging wall installation or directly placed in the groove and other installation methods.
Applications:
* widely used in FTTH access network.
* Telecommunication Networks
* CATV Networks
* Data communications Networks
* Local Area Networks
Specification:
Production & Packing:
