Planar Lightwave Circuit PLC Fiber Optic Splitter 2XN Series High Reliability

China Planar Lightwave Circuit PLC Fiber Optic Splitter 2XN Series High Reliability supplier

Large Image :  Planar Lightwave Circuit PLC Fiber Optic Splitter 2XN Series High Reliability

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: 2*N

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 2pcs per plastic bag,or as request
Delivery Time: 3~5 working days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Fiber Type: Corning SMF-28e Operating Wavelength (nm): 1260~1650
Connector: SC, FC, ST, LC, Etc Operating Temperature (℃): -40~85
Length: 1~2meter Fiber Size: 0.9mm,2.0mm Or 3.0mm
Package Type: Bare, Module, Rack Mount, LGX, Tray, Insert, Wall Mount Application: GPON

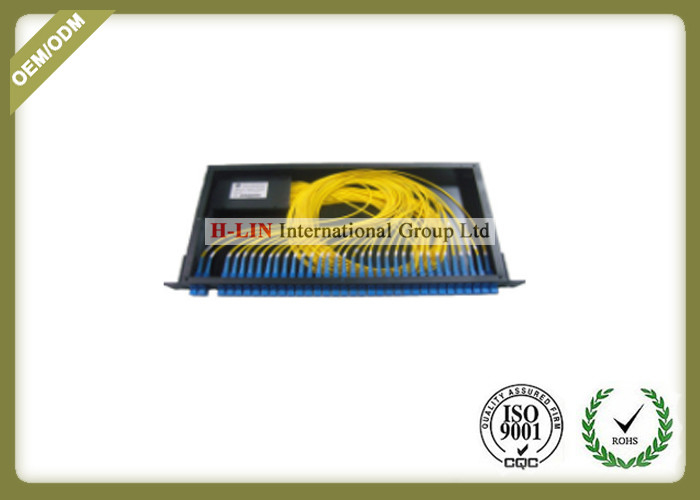

2XN Series PLC(Planar Lightwave Circuit) Splitter Installed at 19" 1U black Rack Mount



Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. H-LIN provides whole series of 1*N and 2*N splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Features


Low Insertion loss
Low PDL
High Reliability and Stability



Typical Usage



1. FTTX Systems

2. PON Networks

3. CATV Links





2* N PLC Splitter



Planar Lightwave Circuit PLC Fiber Optic Splitter 2XN Series High Reliability



1. all measurement at room temperature,

2. specification exclude connector loss, if with connector, PC,UPC will be higher 0.2db,APC 0.3dB.

3. exclude connector



Planar Lightwave Circuit PLC Fiber Optic Splitter 2XN Series High Reliability
