Multi - Functional Fiber Optic Fusion Splicing Machine Welding machine for FTTH use With more than 8 language

China Multi - Functional Fiber Optic Fusion Splicing Machine Welding machine for FTTH use With more than 8 language supplier
Multi - Functional Fiber Optic Fusion Splicing Machine Welding machine for FTTH use With more than 8 language supplier Multi - Functional Fiber Optic Fusion Splicing Machine Welding machine for FTTH use With more than 8 language supplier Multi - Functional Fiber Optic Fusion Splicing Machine Welding machine for FTTH use With more than 8 language supplier

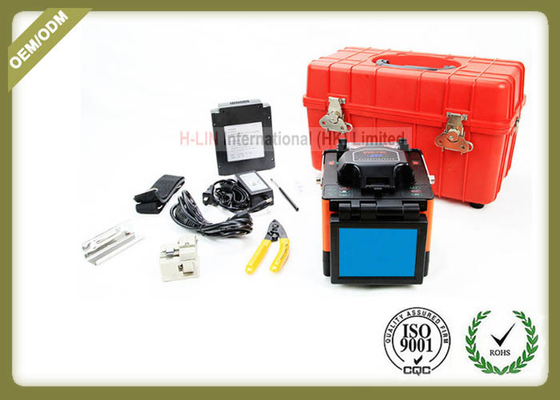

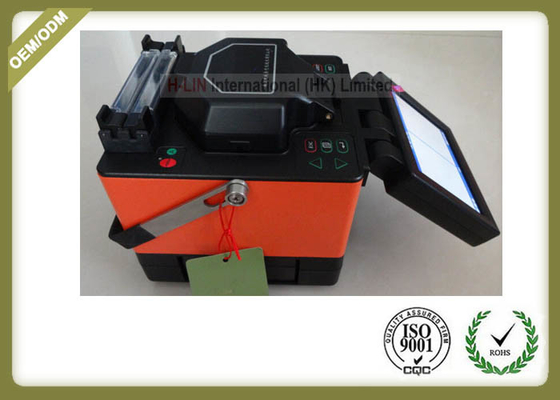

Large Image :  Multi - Functional Fiber Optic Fusion Splicing Machine Welding machine for FTTH use With more than 8 language

Product Details:

Place of Origin: China
Brand Name: HLIN
Certification: CE/FCC/ROHS
Model Number: HL-D750

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: HLIN PACKING
Supply Ability: 100 Piece/Pieces per Week
Contact Now
Detailed Product Description
Product Name: Digital Fiber Fusion Splicing Machine Dimension: 140(D)*150(W)*160(H)mm
Types Of Splicing Mode:: Auto & Manual Splicing Programs: SM, MM, DS, NZ-DS, EDF
Splice Time: 8s Applicable Fibers:: SM MM G655,G657a

Description:



DVP-750 optical fiber splicing machine is the latest research and development of a domestic multi-function optical fiber fusion machine. This type of optical fiber fusion machine uses the latest multi-functional one-piece fixture, can simultaneously weld leather cable, indoor jumper and bare optical fiber, truly achieve a multi-purpose machine. The new optical fiber fusion machine is compact and light in shape, and a rubber protective sleeve has been added to achieve better shock absorption effect, friendly and simple interface, fast and accurate fusion. It can be widely used in optical fiber cable engineering and maintenance in communication, radio and television, railway, petrochemical, electric power, military and other fields, as well as in Teaching and science research institutes.Research.



The built-in large capacity Li-Ion battery can support long-time fieldwork. The embedded sensors measured temperature, humidity and air pressure supply closed-loop feedback control, so the instrument can adopt all kinds of atrocious circumstance and the consistency of splicing loss was improved.





Key Features:



High definition LCD display

PAS technology

Core or cladding alignment

Double heaters,30 Sec.tube-heat time,

3 magnification modes,max.360 magnification,

4 display modes,fiber core visible,

8 Sec.splice time,

Lithium battery,

Max.wind velocity of 15m/s,

Splicing method:auto,manual,

Store 8000 groups of splice results,

USB interface



Specification:



Applicable fibers SM, MM, NZ-DS(G655), EDF and others
Average splice loss 0.02dB(SM),0.01dB(MM). 0.04dB(NZDS)
Return loss ≥60dB
Tension test 2.0N(200gf)(Standard)
Protection sleeve length 20mm, 40mm, 60mm and other series micro protection sleeves
Splicing program 80 groups
Language English, Chinese, Korean, Russian, Spanish , French, German,
Portuguese and others
Environment conditions -25~+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment -40~ +80°C (temperature) , 0~95%RH (humidity)
Power supply AC adaptor:85~260V input voltage
Internal battery: 12V,8Ah, up to 180 times of continuous splice and heat
Dimensions 140(D)×150(W)×160(H)mm
Weight 2.8kg





Features:



1. Superior qualified standard polishing;

2. 100% optic test: Insertion Loss: ≤0.3 (PC); ≤0.2 (APC); ≤0.2 (UPC);

3. 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC);

4. φ0.9mm, φ2.0mm, φ3.0mm cable optional;

5. Simplex and duplex connector available;

6. Good exchange ability and good durability;

7. Available in fiber bunch, ribbon fan-out, pigtail available;

8. Meets ISO9001, ROHS and Bell core GR 326-core standards;

9. Customized specifications are welcomed.
