GJXFH FTTH 2 Core Indoor Fiber Optic Drop Cable for home cabling system

China GJXFH FTTH 2 Core Indoor Fiber Optic Drop Cable for home cabling system supplier
GJXFH FTTH 2 Core Indoor Fiber Optic Drop Cable for home cabling system supplier GJXFH FTTH 2 Core Indoor Fiber Optic Drop Cable for home cabling system supplier GJXFH FTTH 2 Core Indoor Fiber Optic Drop Cable for home cabling system supplier GJXFH FTTH 2 Core Indoor Fiber Optic Drop Cable for home cabling system supplier

Large Image :  GJXFH FTTH 2 Core Indoor Fiber Optic Drop Cable for home cabling system

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE,Rohs
Model Number: FTTH-GJXH

Payment & Shipping Terms:

Minimum Order Quantity: 1 Roll/Rolls
Price: negotiable
Packaging Details: 1km/reel,2reels/carton or Package as per customer request
Delivery Time: 3-5Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Kilometer/Kilometers per Day
Contact Now
Detailed Product Description
Core Number: 2 Fiber Mode: Single Mode
Fiber Type: G.652,/G.655/G.657 Cable Diameter(mm): 2.0×3.1
Steel Messenger: FRP( Fiber Reinforced Plastic) Jacket Colour: White/balck
Operating Temperature: -20~+60℃ Application: FTTH , Access Network



2core FRP FTTH Indoor Fiber Optic Drop Cable



Brief Introduction

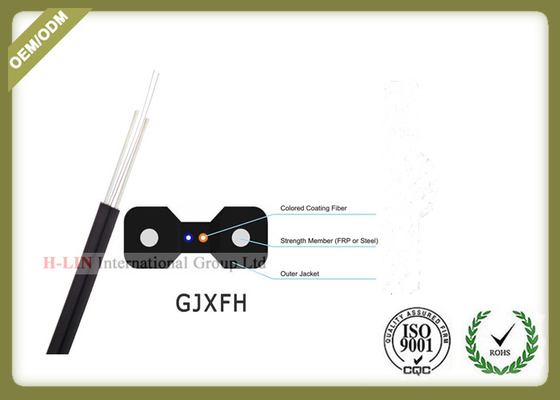

Introduction The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then, the cable is completed with a black or color LSZH sheath
Characteristics 1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2.Two parallel strength members ensure good performance of crush resistance to protect the fiber
3.Simple structure, light weight and high practicability
4.Low smoke,zero halogen and flame retardant sheath
5.Novel flute design, easily strip and splice, simplify the installation and maintenance
Application 1.Access network , fiber to the home
2.Support the Internet , CATV , telephone and more network service in the future
Standards Comply with standard YD/T 1258.2-2003,IECA-596,GR-409,IEC 60794-2-10/11,etc; and meet the requirements of UL approval for OFNR and OFNP


Order Optional Information



Jacket material: PVC (Environmental lame-retardant polyvinylchloride), LSZH (Environmental low smoke zero halogen flame retardant polyolefin), or other customerized material.



Jacket color: blue, orange, green, brown, gray, red, black, yellow, and violet, pink, aqua.



Fiber type: B1-G.652, B1.3-G.652.D, B4-G655, A1-50/125μm, A1b-62.5/125μm, M1-Maxband 150, M3-Maxband 300, M5-Maxband 550, E1- EasyBad G.657, E1.1- EasyBad Plus G.657, etc.



Cable Dimension: the nominal cable dimension, or other constomerized dimension.



Fiber Count: total number of fibers in the cable.



MOQ: 1km



Cable Code Cable Count Cable Diameter Cable Weight Tensile Crush Crush resistance
(mm) (kg/km) (N) (N/100mm) (mm)
Long Turn Short Turn Long Turn Short Turn Dynamic Static
GJXV-02(G.657A) 2 2.0*3.1 8.5 40 80 1100 2200 30D

15D



Application





GJXFH FTTH 2 Core Indoor Fiber Optic Drop Cable for home cabling system

1.Optical Distribution Frame
2.Computer Networks
3.Fiber Optic Communication Systems

4.Optical Access Networks

5.Local Area Network

6.Fiber Optic Sensors
7.Fiber Optic Data Communications

8.Fiber Optic Cable Television
9.Fiber Optic Test Equipment

10.Access wiring

11.Connecting Between Backbone Optical Cable and RX

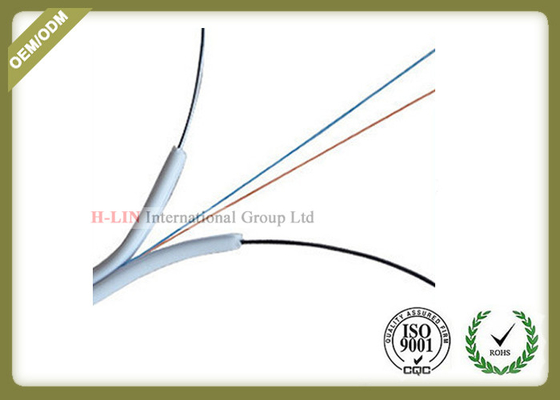

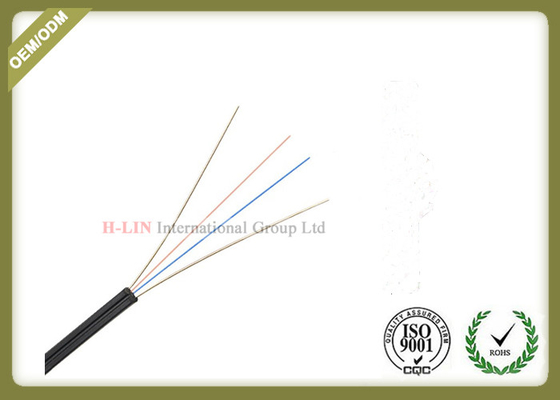

Product Show

GJXFH FTTH 2 Core Indoor Fiber Optic Drop Cable for home cabling system



GJXFH FTTH 2 Core Indoor Fiber Optic Drop Cable for home cabling system
