LSZH 2core G657 Bow type FTTH fiber cable with PVC or LSZH jacket

China LSZH 2core  G657 Bow type FTTH fiber cable with PVC or LSZH jacket supplier
LSZH 2core  G657 Bow type FTTH fiber cable with PVC or LSZH jacket supplier LSZH 2core  G657 Bow type FTTH fiber cable with PVC or LSZH jacket supplier

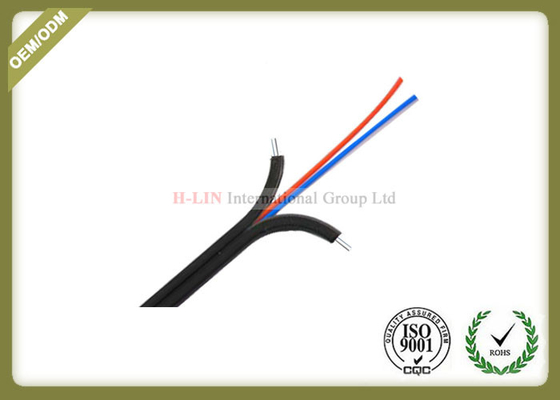

Large Image :  LSZH 2core G657 Bow type FTTH fiber cable with PVC or LSZH jacket

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE,Rohs
Model Number: FTTH-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Roll/Rolls
Price: negotiable
Packaging Details: 1km/reel,2 reels/carton,or Package as per customer request
Delivery Time: 3-5Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Kilometer/Kilometers per Day
Contact Now
Detailed Product Description
Core Number: 2 Jacket: LSZH
Fiber: G657A1 Diameter: 2.0*3.0mm
Sheath Color: White/black Application: FTTH
Strength Member: FRP/KFRP/Steel Wire Quality:: ISO9001

G657A1 indoor fiber optic drop cable with black color LSZH jacket



Product Description
FTTH (Fiber to The Home) is a kind of transmission cable used to connect directly to a home user or a business user. With no limits to its bandwidth, wavelength and transmission technology and being suitable for the application of various new services, FTTH cable is the best solution for the connection between the internet backbone to the user’s desktop.

Purchasing Risk
Many domestic small factories modified electric-wires equipment to produce FTTH cable. They used unqualified fibers which is with very cheap price 3USD/KM to imitate G657 bend-resistant fiber, waste electric-wires and rubber slippers smashed as pvc raw material for the LSZH outer sheath. Those inferior cables will cause many problems such as short transmission distance, low bandwidth, intermittent signal and easy-to-crack of the cable jacket in several months, etc.



Technical Parameters:



Outer sheath Diameter Fiber diameter Weight Minimum allowable Tensile Strength (N) Minimum allowance Crush load(N/100m) Minimum Bending Radius (mm)
(MM) (mm) (KG/KM) Short term Long term Short term Long term Short term Long term
2.1X3.1 250 8.50 500 50 2000 1000 20D 10D
2.0X5.0 250 10.50 500 50 2000 1000 20D 10D






FTTH Self-Support 1/2/3/4 Core Drop Optical Fiber Cable cable Technical Date:


ITEMS
UNITS SPECIFICATION
Attenuation dB/km ≤0.4 at 1310nm ≤0.3 at 1550nm
Chromatic Dispersion ps/nm.km ≤3.5 at 1285nm ~ 1330nm ≤18.0 at 1550nm
Zero Dispersion Wavelength nm 1300 ~ 1324
Zero Dispersion Slope ps/nm2.km ≤0.095
Cut-off Wavelength (λcc, 22m of a cabled fiber) nm ≤1260
Mode Field Diameter um 9.2±0.5
Mode Field Concentricity um ≤0.8
Cladding Diameter um 125±1.0
Cladding Non-circularity % ≤1.0
Coating cladding concentricity error um ≤12.5
Coating Diameter um 245±10
Bending loss (Bare fiber) Radius :7.5mm x 1 turn dB ≤0.5 at 1550nm
Proof Test kpsi ≥100





Characteristics

1 · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
3· Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
4· Simple structure, light weight and high practicability;
5· Novel flute design, easily strip and splice, simplify the installation and maintenance;
6· Low smoke, zero halogen and flame retardant sheath.It protect environment,can resist the ultraviolet rays,and prevent dehisce.


Application:

  1. Adopted to indoor distribution.
  2. As pigtail of communication equipment
  3. Suitable for communication equipment servrd
  4. Can be installed conveniently and perated simply




 LSZH 2core  G657 Bow type FTTH fiber cable with PVC or LSZH jacket
