Professional Fiber Optic Accessories SC UPC SM MM Fiber Fast Connector 52~55mm Length

China Professional Fiber Optic Accessories SC UPC SM MM Fiber Fast Connector 52~55mm Length supplier
Professional Fiber Optic Accessories SC UPC SM MM Fiber Fast Connector 52~55mm Length supplier Professional Fiber Optic Accessories SC UPC SM MM Fiber Fast Connector 52~55mm Length supplier Professional Fiber Optic Accessories SC UPC SM MM Fiber Fast Connector 52~55mm Length supplier

Large Image :  Professional Fiber Optic Accessories SC UPC SM MM Fiber Fast Connector 52~55mm Length

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/FCC/ROHS
Model Number: SC/UPC/SM Fast connector

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: negotiable
Packaging Details: standard export packing for Fiber Optic SC/UPC Quick/Fast Connector/Conector de fibra optica rapida
Delivery Time: 4days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Type: Splice Adapter Suitable Cable: 3.0x2.0mm Drop Cable Or 3.0/2.0/0.9mm Cable
Durability: ≤ 0.2db Typical Change, 1000 Times Connector: SC
Polishing: PC/UPC Fiber Mode: Single Mode /multi Mode SM/MM For Option
Weight: 6g Application: Fast Connectors Terminals

SC UPC SM MM Fiber Optic Sumitomo Fast/Quick Connector 52~55mm length





Description:





The fast connector is a connector that can well solve the wiring operation and the FTTH project. Assembly without glue, grinding and electrical tools ,which is widely used in the construction site. It provides a fast and stable connector for operation.



Optical Fast Connector takes use of the latest generation of Terminal technology. After terminating, both optical and mechanical performance reach the standard for patchcord, meet the demand for making patchcord on site by mechanical splicing, have greatly changed the idea in conventional optical splicing, providing the great support to FTTx implementation.

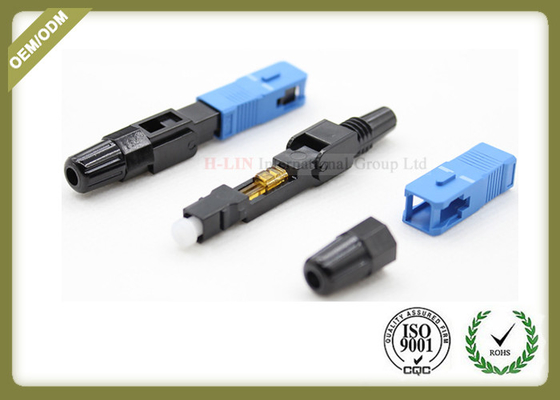

Professional Fiber Optic Accessories SC UPC SM MM Fiber Fast Connector 52~55mm Length

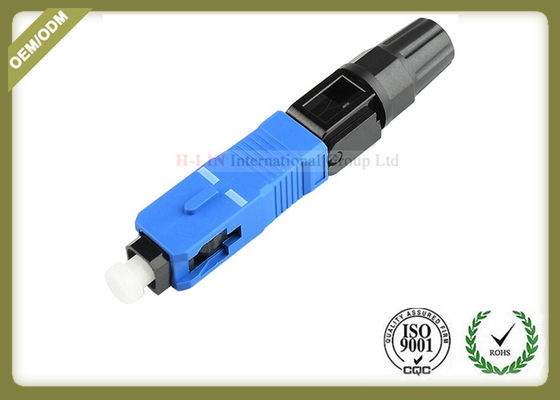

Professional Fiber Optic Accessories SC UPC SM MM Fiber Fast Connector 52~55mm Length







Specification:

  Singemode(UPC) Singemode(APC) Multimode
Insertion loss ≤ 0.2db ≤ 0.2db ≤ 0.25db
Return loss ≥55db ≥65db ≥30db
Durability ≤ 0.2db typical change, 1000 times mating
Operating Temperature -45 to +85 degree
Ferrule Hole Sizes 125.0+1/-0um, Concertricity:≤1.0um 125.0+1/-0um, Concertricity:≤0.5um 127.0um, Concertricity: ≤3.0um
125.5+1/-0um, Concertricity:≤1.0um 125.5+1/-0um, Concertricity:≤0.5um
126.0+1/-0um, Concertricity:≤1.0um 126.0+1/-0um, Concertricity:≤0.5um



Parameter



Cable Scope
2.0mm/3.0mm/3.0*2.0mm drop cable
Optical fiber diameter
125μ m ( 652 & 657 )
Tight buffer diameter (μ m)
900μ m
Fiber mode
Single & multi mode
Installation time
within 60s ( no fiber cut )
Insertion loss
≤ 0.3dB(1310nm & 1550nm)
Return loss
> 55dB
Fastening strength of naked fiber
> 5N
Fastening strength of naked fiber holder
> 10N
Tensile strength
> 50N
Working Temperature
-40~+75



Features:



1. Eliminates cable excess length and pigtail splice storage

2. Factory-installed fiber stub

3. No epoxy or polishing required

4. Quick and easy fiber termination in the field

5. No tool is required for the installation

6. Cost effective







Application:



Patch Panels sc apc upc sumitomo fast connector

Distribution frames sc apc upc sumitomo fast connector

Maintenance or emergency restoration of fiber networks

SC APC SC UPC Sumitomo Fast Connector SM MM Fiber Optic Sumitomo Fast Connector

FTTH outlets, sc apc upc sumitomo fast connector etc.





Packing:

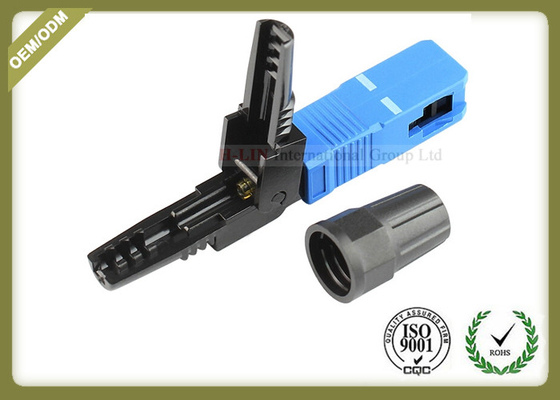

Professional Fiber Optic Accessories SC UPC SM MM Fiber Fast Connector 52~55mm Length









Note:



when installation, the operator should keep their hands clean and dry, open the peeling cable or strip the coating layer, please use good quality tools to reduce the fiber section damage.When cutting quantitative fiber, please correct use the long-term guide slot, and properly handle the waste fiber, so as to avoid the hurt of person. Insert the fiber to the connector, pay attention to the operation method and strength, so as to avoid the fiber break. Keep the fiber slightly bent to lock the lock buckle assembly. Pay attention to the construction site dust, too much dust may affect the communication data





In order to reduce the light loss, it is recommended to peel off the optical fiber coating and dip the dust with a small amount of alcohol to wipe the fiber and wipe it clean. If necessary, please repeat the cleaning, which can greatly reduce the light loss.
