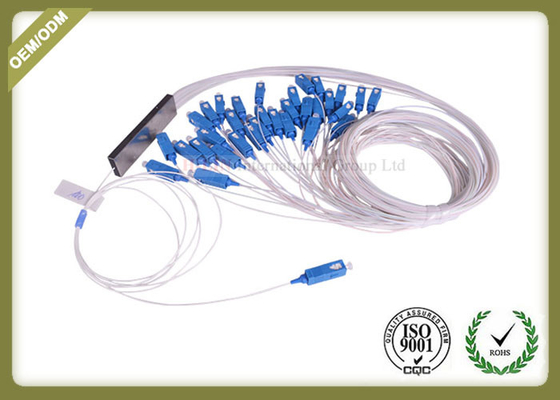

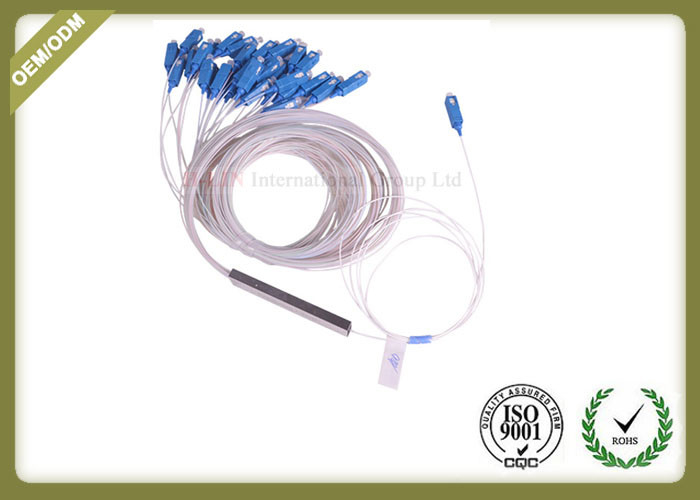

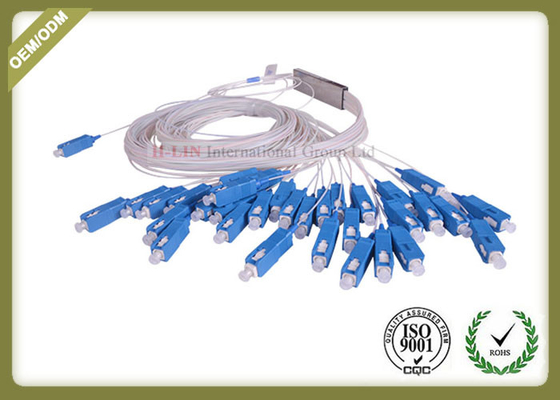

Steel Tube Fiber Optic Splitter , PLC Optical Splitter G657A Fiber 1 - 2meter Length

China Steel Tube Fiber Optic Splitter , PLC Optical Splitter G657A Fiber 1 - 2meter Length supplier
Steel Tube Fiber Optic Splitter , PLC Optical Splitter G657A Fiber 1 - 2meter Length supplier Steel Tube Fiber Optic Splitter , PLC Optical Splitter G657A Fiber 1 - 2meter Length supplier Steel Tube Fiber Optic Splitter , PLC Optical Splitter G657A Fiber 1 - 2meter Length supplier

Large Image :  Steel Tube Fiber Optic Splitter , PLC Optical Splitter G657A Fiber 1 - 2meter Length

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: HL-1*32 PLC Steel tube

Payment & Shipping Terms:

Minimum Order Quantity: 2 Piece/Pieces
Price: negotiable
Packaging Details: 1pcs per plastic bag,1pcs per paper bag
Delivery Time: 3~5 working days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Splitter Packing: Stainless Steel Tube Tube Type: Φ0.9mm,
Connector: SC Operating Temperature (℃): -40~85
Length: 1~2meter Fiber Type: G657A



Steel Tube PLC Splitter 1x32 G657A Cable .0.9mm With SC/UPC Connector





Description:



PLC splitter(planner light wave circuit splitter) is based on planner light wave technology, and it has the advantages as smart apperance, wide range in working wave, high reliability and excellent uniform distribution. It is widely used to connect the terminal device and distibution the light signals in FTTX, EPOM, and GPON filed. We are avariable to supply 1XN and 2N series products, complying RoHS, which is customized to produced TLC certificated splitters in all occasions.





The PLC splitter family(1x4,1x8,1x16,1x32,2x16,2x32 1x64 ) has two classes-grade and S-grade, with specifications that are tailored
for different applications and markets. All splitter's feature guaranteed performance specifications and high reliability that surpass Telcordia requirements.


H-LIN adopts the FBT technique to produce the SM coupler with the high performance and liability which achieve the advanced level of similar products in the world. The extremely low excess loss greatly increases the coupler’s liability and long-term stability. H-LIN adopts the unique craft to eliminate the reflection of the 1X2 coupler’s spare input fiber end and ensure its long-term stability and at least 60dB directivity. H-LIN  also supply the 1XN (NXN) Tree/Star type coupler by grade-connection 1X2 coupler.





Parameters





Parameters 1x4 1x8 1x16 1x32 1x64
1 Operating Wavelength(nm) 1260-1650
2 Insertion Loss (dB) Max(S/P) 7.4/7.2 10.7/10.5 13.7/13.5 16.9/16.5 21
3 Loss Uniformity (dB) Max 0.6 0.8 1.2 1.7 2.5
4 Return Loss (dB) Min(S/P) 50/55 50/55 50/55 50/55 50
5 PDL (dB) Max 0.2 0.3 0.3 0.3 0.4
6 Directivity (dB) Min 55 55 55 55 55
7 Pigtail Length(m) 1.0 or customer specified
8 Fiber Type SMF -28e or customer specified
9 Wavelength Dependent Loss(dB) 0.2 0.2 0.3 0.3 0.3
10 Temperature Stability(-40~85)(dB) 0.3 0.3 0.4 0.4 0.4
11 Operating Temperature -40~85
12 Storage Temperature -40~85
13 Packaging Size(L x W x H)(mm) 40x4x4 40x4x4









Features

Environmentally Stable.
• Easy Installation.
• Low insertion Loss.
• High uniformity.
• High reliability.





Application





1) FTTX (FTTP, FTTH, FTTN, FTTC)
2) Passive Optical Networks (PON)
3) Local Area Networks (LAN)
4) CATV Systems
5) Test Equipment


Package:




Steel Tube Fiber Optic Splitter , PLC Optical Splitter G657A Fiber 1 - 2meter Length
