MTRJ SM MM Fiber Optic Cable Adapter Black Color SC Footprint ABS Material

China MTRJ SM MM Fiber Optic Cable Adapter  Black Color SC Footprint  ABS Material supplier
MTRJ SM MM Fiber Optic Cable Adapter  Black Color SC Footprint  ABS Material supplier MTRJ SM MM Fiber Optic Cable Adapter  Black Color SC Footprint  ABS Material supplier

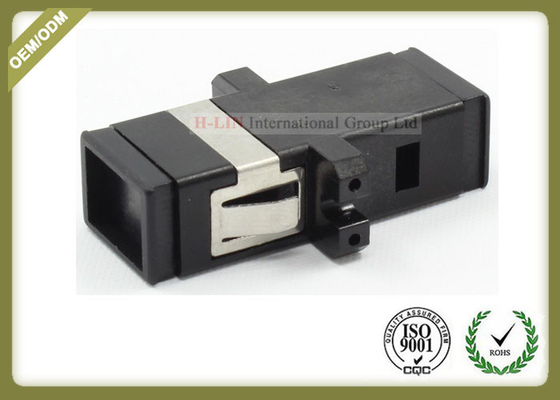

Large Image :  MTRJ SM MM Fiber Optic Cable Adapter Black Color SC Footprint ABS Material

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/FCC/ROHS
Model Number: MTRJ Adapter

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: negotiable
Packaging Details: Packed with packing bag for each piece
Delivery Time: 3days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Material: Plasic Housing Inner Core: Ceramic Sleeve
Durability: <= 0.20 DB Temperature: -40°C To 80°C
Seramic Sleeve: IL<=0.5dB Type: Singlemode

SC Footprint MTRJ SM MM Fiber Optic Adapter ABS Material Black Color



MTRJ Adapter, black plastic housing.SC Footprint.






Detailed Description:



Fiber adapters are usually called flanges, which are mainly used for connection and fixation between optical fiber active connectors, so that optical signals can be transmitted with small insertion loss. The connection mode of the MT-RJ adapter is not the same as the SC adapter. The SC connector uses a ceramic sleeve to accurately aligns the connector's plug, while the MT-RJ adapter and the MPO adapter are used to connect the guide hole with the guide pin (also called PIN needle) on the end of the MT-RJ connector plug and the guide pin (also called PIN needle). The adapter and the MPO adapter do not have single multimode division. There are two types of MT-RJ adapters, one for the RJ45 structure and the other for the SC structure, with the same performance, but only based on the specific use. MT-RJ adapters and MPO adapters are widely used in the base station of the communication system, the fiber wiring frame (ODF), communication equipment and various testing instruments in the building machine room.

Specifications

The products have passed RoHS;ISO9001;ISO14001;OHSAS18001


Parameter
MTRJSM MTRJMM
Insertion loss ≤0.5dB ≤0.5Db
Repeatability 1000times ≤0.2dB
Exchange ≤0.2dB
Temperature range -40 - +85



Item Specification
Type MT-RJ
Color Black
Test wavelength 1310nm, 1550nm, 850nm, 1300nm
IL typical ≤0.20dB,Max≤0.30dB
Repeatability ≤0.10dB
Changeability ≤0.20dB
Pull charactics pull 500times,loss variability≤0.20dB
Material ABS
Operating temperature -20℃to +70℃
Storage temperature -40℃to +85℃





Features:



Low insertion loss, high return loss

Good compatibility

High precision of mechanical dimensions

High reliability & stability

Ceramic or Bronze Sleeve

PC,APC,UPC optional

Simplex / Duplex







Application:





CATV Metro Test Equipment
Active dvice termination Local Area Networks(LANs) Premise installations
Telecommunication networks Data Processing networks Wide Area Networks(WANs)
Name optical fiber communication adapters MTRJ





Order Information



Common Adapters
Connector Type Ceramic Ferrule Bore End Face Single mode/Multi-mode Remark
FC PC/UPC/APC SM/MM Round, Square, Split Square, Rectangular
SC PC/UPC/APC SM/MM
ST PC/UPC SM/MM
LC, MU PC/UPC SM/MM Double
MTRJ PC/UPC SM/MM
Common Adapters
Connector Type Ceramic Ferrule Bore End Face Single mode/Multi-mode Remark
FC-SC PC/UPC/APC SM/MM
FC-ST PC/UPC/APC SM/MM
FC-LC PC/UPC SM/MM
SC-ST PC/UPC SM/MM
SC-LC PC/UPC SM/MM
FC-MU PC/UPC SM/MM





Drawing:

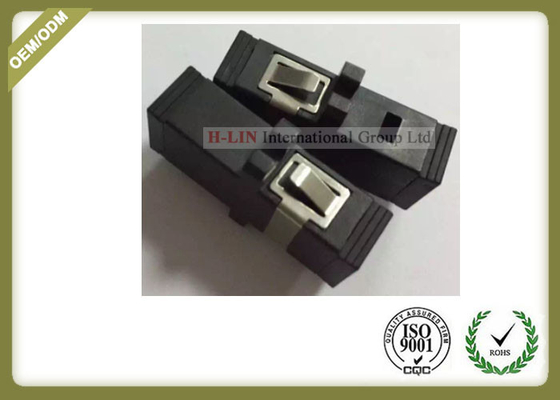

MTRJ SM MM Fiber Optic Cable Adapter  Black Color SC Footprint  ABS Material





Packeing





MTRJ SM MM Fiber Optic Cable Adapter  Black Color SC Footprint  ABS Material
