H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber

China H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber supplier
H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber supplier H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber supplier H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber supplier H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber supplier

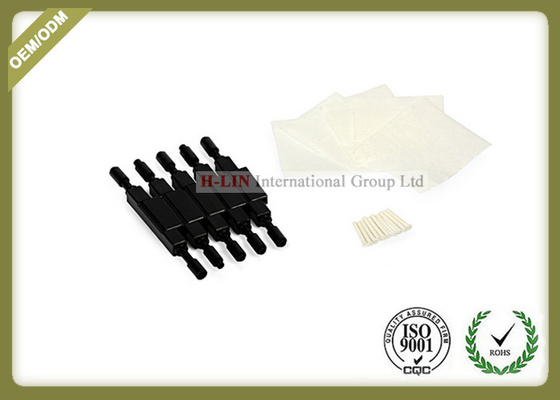

Large Image :  H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/FCC/ROHS
Model Number: cold connector

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: negotiable
Packaging Details: standard export packing for Fiber Optic SC/UPC Quick/Fast Connector/Conector de fibra optica rapida
Delivery Time: 1-3 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Applicable For: φ0.25 Mm &φ0.90 Mm Fiber Optical Fiber Diameter: 125μm ( 652 & 657 )
Tight Buffer Diameter: 250μm & 900μm Applicable Mode: Single & Multimode
Insert Loss: ≤ 0. 25 DB(1310nm & 1550nm) Return Loss: ≤ -45dB



L925B Optical Fiber Mechanical Splice for 0.9mm and 0.25mm fiber
Optical Fiber Mechanical Splice for cable cold connection


Description:

L925B fiber cold connector is used for fiber optic docking fiber or fiber optic docking pigtail. This is equivalent to making a joint.(Fiber optic docking pigtail refers to the fiber core butt fiber core but not the fiber pigtail.) The thing used for this cold connection is called the fiber cold junction.



Refers to the mechanical connection of the cable through the "cold joint", the entire connection process can be completed within 2 minutes.

This connector is different from fast connecor.



Specification:



ItemParameter
Applicable forφ0.25 mm & φ0.90 mm fiber
Size45*4.2*4.7mm
Optical fiber diameter125μm ( 652 & 657 )
Tight buffer diameter250μm & 900μm
Applicable modesingle & multimode
Operation timeabout 10s (without fiber cut)
Insert loss≤ 0. 25 dB(1310nm & 1550nm)
Return loss≤ -45dB
Fastening strength of naked fiber>5 N
Clamping force of fiber with tight buffer>8 N
Using temperature-40~+75℃
Reusability (10 times)IL ≤ 0.2dB RL ≤ 5dB


Features:


  1. Fast splice without fusion machine
  2. Low insertion loss
  3. High tensile strength
  4. Good thermal and environmental stability
  5. Good design for simple assemble


Application:

FTTH fiber into the home;
Telecommunications, CATV engineering and maintenance;
Integrated wiring construction and maintenance;
fIber room line transformation


HOW TO USE?
Assemble Tools:

  1. Fiber cleaver
  2. Fiber jacket/buffer tube stripper
  3. Fiber stripper
  4. Fiber needle
  5. Alcolhol
  6. Kimwipe
  7. White adhesive tape
  8. Kevlar shear


Step 1. Cut the fiber(0.9mm) as shown. Length of fiber is 12.5mm.


H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm FiberH - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber


Step 2.Put the fiber (buffer diameter=0.9mm) into the splicer . Push the tube.


H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm FiberH - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber



Step 3.Cut the fiber as shown . The reducer is used to adapt the fiber (coating diameter=0.25mm) to the splicer.Length of fiber is 12.5mm.

H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm FiberH - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber



Step 4 .Put the fiber (coating diameter=0.25mm)through the reducer into the splicer .Push the tube .

Make sure the fiber is to the end . Fit the tube .

H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm FiberH - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber

 Step 5.Press the side cover .

H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber




Detailed Image:
H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber

H - LIN Fiber Optic Accessories , Mechanical Fiber Fast Connector For 0.9mm Fiber
