Cat5e Network Patch Cord Solid Bare Copper With Different Kind RJ45 Connector

China Cat5e Network Patch Cord Solid Bare Copper With Different Kind RJ45 Connector supplier
Cat5e Network Patch Cord Solid Bare Copper With Different Kind RJ45 Connector supplier Cat5e Network Patch Cord Solid Bare Copper With Different Kind RJ45 Connector supplier

Large Image :  Cat5e Network Patch Cord Solid Bare Copper With Different Kind RJ45 Connector

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/ISO9001/FCC/UL
Model Number: Cat6 patch cord

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: negotiable
Packaging Details: 1.PE packing/Carton. 2. Paper Packing/Carton. 3.Customized
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Conductor: Solid Bare Copper Conductor Size: 24AWG
Connector: RJ45 Plug Test: 100% CONITUNITY
Color: Red,blue Or Yellow As Customerized Shield: Unshielded Twisted Pair

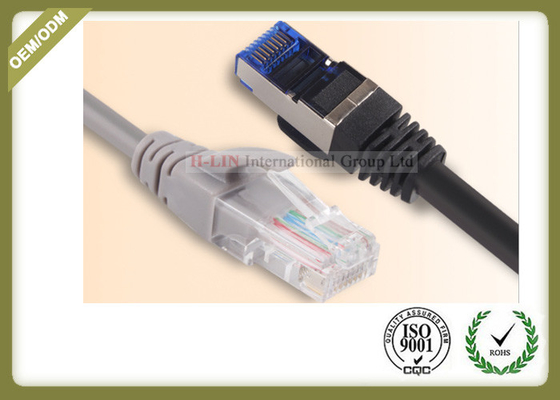

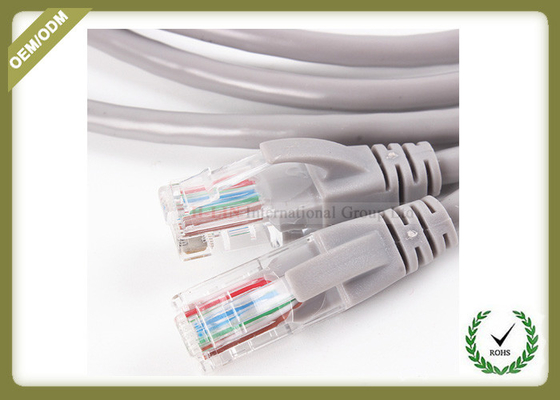

Cat5e Patch Cord With different kind RJ45 Connector for Option

Description:


In the whole network wiring, a kind of wiring method is used, but both ends have RJ-45 plug network connection, whether it is the end connection mode A, or the end connection mode B, in the network all are common. The order of twisted pair is corresponding to the pin number of the RJ45 head.



The Ethernet connection of 10M Ethernet uses 1, 2, 3, 6 number of core wires to transmit data, and 100M Ethernet lines use 4, 5, 7, 8 numbers of core wires to transmit data. Why do we now use 4 pairs of (8 core) twisted pair? This is mainly for the purpose of adapting to more scope of use. Without changing the infrastructure, it can meet the wiring requirements of various kinds of user equipment. For example, we can use one pair of twisted pair to achieve voice communication.



The provisions of 100BASE-T4 RJ-45 for twisted pair wire netting are as follows:



1, 2 for sending, 3, 6 for reception, 4, 5, 7 and 8 are two-way lines.



The 1 and 2 lines must be twisted pair, 3, 6 twisted pair, 4, 5 twisted pair, 7 and 8 twisted pairs.



Materials:


It adopts high purity oxygen free copper conductor, high quality environmental protection PVC outer cover, 64K gold plated plug, fashionable and durable. The ultra five standard four pairs of twisted core line structures are used to combat external magnetic wave interference, reduce misunderstanding bit rate, realize high speed transmission of data, and be applicable to the interconnection of personal computers with modem, jumper panel and network distributor quality inspection.

Product and packaging conform to ROHS standard!





UTP Cat 5 patchcord





Electrical characteristics for Cat 5e UTP

Property Nominal Value Tolerance Unit ref
Characteristic impedance @ 100 MHz 100 ± 15 Ω [10]
Nominal characteristic impedance @ 100 MHz 100 ± 5 Ω [10]
DC-Loop resistance ≤ 0.188   Ω/m [10]
Propagation speed 0.64   c [10]
Propagation delay 4.80-5.30   ns/m [10]
Delay skew < 100 MHz < 0.20   ns/m [10]
Capacitance at 800 Hz 52   pF/m [10]
Inductance 525   nH/m [11]
Cutoff frequency 50323   Hz [11]
Max tensile load, during installation 100   N [10]
Wire size AWG-24 (0.205 mm² )     [10][12]
Insulation thickness 0.245   mm [10]
Maximum current per conductor 0.577   A [12]
Temperature operating -55 to +60   °C [10]

Dielectric

Example materials used as dielectric in the cable

Acronym Material
PVC Polyvinyl Chloride
PE Polyethylene
FP Foamed polyethylene
FEP Teflon/fluorinated ethylene propylene
FFEP Foamed Teflon/fluorinated ethylene propylene
AD/PE Air dielectric/polyethylene





Individual twist lengths

By altering the length of each twist, crosstalk is reduced, without affecting the characteristic impedance.[11][dubious – discuss]

  Pair color [cm] per turn Turns per [m]
  Green 1.53 65.2
  Blue 1.54 64.8
  Orange 1.78 56.2
  Brown 1.94 51.7




Gold-plateing  crystal head, crystal head contact using 15U advanced gold plating, anti-oxidation ability, is 3 times the life of the ordinary crystal head, transmission is not exhaustion, and the lifespan is long







Advantage of Gold-plating cystal connector,More durable, longer service life, stronger interference, less household electrical appliances, smaller network transmission loss and faster network speed.​
