Cat5e Copper Network Patch Cable Multi Wire With Orange Color PVC Jacket

Certification
Good quality Network Fiber Cable for sales
Good quality Network Fiber Cable for sales
10years nice cooperation by reasonable price,stable quality and patient attitude to deal with all related work,we are not only partners but also friends with H-LIN Team.

—— Arabnia

H-LIN is professional,responsible,efficient in our business cooperation.We are very glad to work with those excellent ladies, looking forward to the long partnership with them.

—— Sarah Grant

We are very satisfied with H-LIN,they can provide fiber materials which all meets our requirements.They are doing a good job.

—— Steve Toner

I'm Online Chat Now

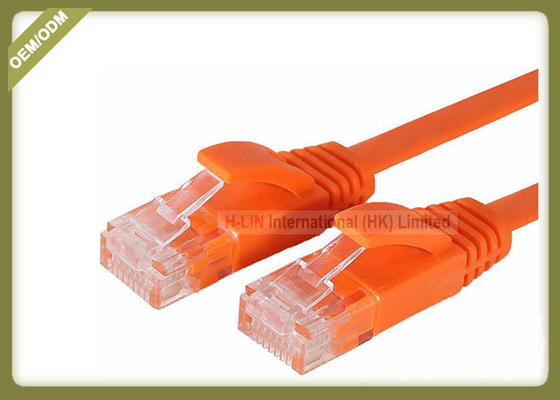

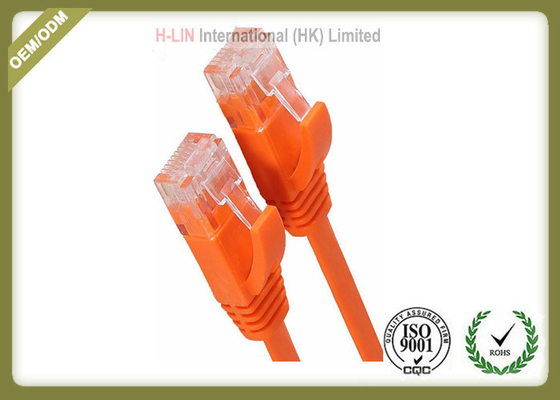

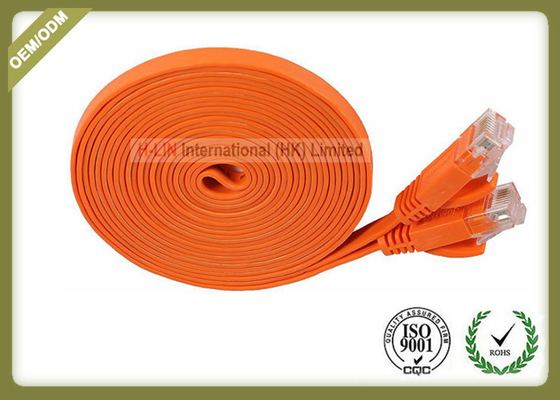

Cat5e Copper Network Patch Cable Multi Wire With Orange Color PVC Jacket

China Cat5e Copper Network Patch Cable Multi Wire With Orange Color PVC Jacket supplier
Cat5e Copper Network Patch Cable Multi Wire With Orange Color PVC Jacket supplier Cat5e Copper Network Patch Cable Multi Wire With Orange Color PVC Jacket supplier Cat5e Copper Network Patch Cable Multi Wire With Orange Color PVC Jacket supplier

Large Image :  Cat5e Copper Network Patch Cable Multi Wire With Orange Color PVC Jacket

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: UL,ROHS,CE,QC,CCC.
Model Number: Cat5e UTP cable

Payment & Shipping Terms:

Minimum Order Quantity: 50 Box/Boxes
Price: negotiable
Packaging Details: 1. Pull out pox 305m/pull out box, 2boxes/outer carton. 2. Plastic reel 3. Wooden reel 4. As client' s request .
Delivery Time: 8days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60000 Box/Boxes per Month
Contact Now
Detailed Product Description
Number Of Conductors: 8 Conductor: Solid Copper,Bare Copper,Pure Copper
Jacket Material: PVC Or LSZH Diameter: 4*2*0.48MM
Color: Blue,Grey , Black Or As Request Length: 305m(1000ft) / Roll Or 500m/Roll
High Light:

fiber patch cord

,

data patch cord

Cat5e UTP Network cable 4*2*0.48mm 100% Solid pass fluke test with real OD 0.48mm





There are two standards for the net crystal head, the standards are TIA/EIA 568B and TIA/EIA 568A respectively. First, the crystal head will have the crystal head with the side of the card downward, the side of copper face upward, one side of the open side toward their own body, from left to right to sort to 12345678, the following is TIA/EIA 568B and TIA/EIA 568Av line sequence (priority selection 568B line connection):
TIA/EIA-568B: 1, white orange, 2, orange, 3, white green, 4, blue, 5, white, blue, 6, green, 7, white brown, 8, brown.
TIA/EIA-568A: 1, white green, 2, green, 3, white orange, 4, blue, 5, white, blue, 6, orange, 7, white brown, 8, brown.





In the whole network wiring, a kind of wiring method is used, but both ends have RJ-45 plug network connection, whether it is the end connection mode A, or the end connection mode B, in the network all are common. The order of twisted pair is corresponding to the pin number of the RJ45 head.
10M Ethernet wiring uses 1, 2, 3, 6-numbered cores to transmit data, and 100M Ethernet wiring uses 4, 5, 7, 8-numbered cores to transmit data. Why do we now use 4 pairs of (8 core) twisted pair? This is mainly to adapt to more scope of use, without changing the infrastructure, can meet a wide range of user equipment under the premise of the network wiring requirements. For example, we can use one pair of twisted pair to achieve voice communication.
The provisions of 100BASE-T4 RJ-45 for twisted pair wire netting are as follows:
1, 2 for sending, 3, 6 for reception, 4, 5, 7 and 8 are two-way lines.
The 1 and 2 lines must be twisted pair, 3, 6 twisted pair, 4, 5 twisted pair, 7 and 8 twisted pairs.







Product characteristics:



*100% passes the FLUKE PATCH test.

* modular jumpers are made of pure copper multi conductor cables, supporting T568A (ISDN) and T 568B (ALT) pins.

* the surface of the crystal reed is plated with gold, ensuring very good contact and signal transmission performance.

* data communication for 155MHz.

* the process is made by glue filling process, and the conductor is sealed without oxidation.

* provide Jumpers with different colors and lengths, and cable management is simpler.

* multi conductor, PVC is flat, cable is soft and comfortable, convenient wiring does not occupy space.
* easy to receive and carry. Suitable for notebook computers;

* provide various lengths: 0.15m to 60m and user specified length, and the outer covers can provide many colors.

* achieve or exceed ANSI/TIA/EIA-568-B.S-2, CSAT529-95 to five kinds of specifications for connecting hardware.

* molded wire, plug and play, flexible and durable, longer life.

Product application:

* data transmission of structured cabling, transmission of digital and voice and video signals;

* multiuser Telecom socket;

* concentrated junctions;

* support all applications designed for ultra 5 or lower level cabling systems.



Specification:



Item No 01 02
Cable type UTP CAT5E FTP CAT5E
Conductor  Diameter(mm) 0.505±0.005 0.515±0.005
 Material Bare Copper/CCA Bare copper /CCA
 Type Solid Solid
Dielectric(Insulation) Diameter(mm) 0.91±0.01 1.00±0.02
Material PE PE
colors
 Pair 1 : Blue,White / Blue
 Pair 2 : Orange,White / Orange
 Pair 3 : Green,White / Green
 Pair 4 : Brown,White / Brown
Shielding  Material - Aluminium+ foil +Tinned copper drain wire
 Coverage 100%
Jacket(sheath) Diameter(mm) 5.1±0.2 5.6±0.2
Thickness(mm) 0.55±0.05 0.55±0.05
Material Flame retardant PVC/PE PE/PVC
colors  CUSTOMIZED  CUSTOMIZED
Number of Pairs 4pairs 4pairs
Length(m) 305 305
package 305M/Roll in Box 305M/Roll in Box
 Dimensions Box  Size(mm) 34x34x21 42x42x21
CBM/Box 0.024 0.038
Net Weight (kgs/box) 9 12
Gross  Weight (kgs/box) 10 13
Electrical characteristics
Attenuation (100MHz dB/100m) 22.0 22.0
NEXT  (100MHz dB/100m) ≥35.3 ≥35.3
ELFEXT  (100MHz dB/100m) 23.8 23.8
RL  (100MHz dB/100m) 20.11 20.11
Impedance (ohms ) 100±15 100±15
Operating Temperature Range(℃) -20 to 75 -20 to 70





Product Structure






Cat5e Copper Network Patch Cable Multi Wire With Orange Color PVC Jacket



Cat5e Copper Network Patch Cable Multi Wire With Orange Color PVC Jacket
