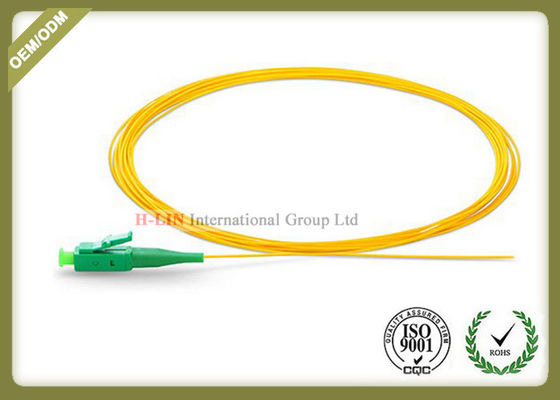

LC / APC Pigtail Fiber Optic Cable Single Mode 0.9mm Simplex With Green Tip

China LC / APC Pigtail Fiber Optic Cable Single Mode 0.9mm Simplex With Green Tip supplier
LC / APC Pigtail Fiber Optic Cable Single Mode 0.9mm Simplex With Green Tip supplier LC / APC Pigtail Fiber Optic Cable Single Mode 0.9mm Simplex With Green Tip supplier LC / APC Pigtail Fiber Optic Cable Single Mode 0.9mm Simplex With Green Tip supplier

Large Image :  LC / APC Pigtail Fiber Optic Cable Single Mode 0.9mm Simplex With Green Tip

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: LC/APC pigtail

Payment & Shipping Terms:

Minimum Order Quantity: 50 Piece/Pieces
Price: negotiable
Packaging Details: 1 piece in a separate plastic bag, 10pcs or 15pcs for a big plastic bag. With the export standard carton
Delivery Time: 5days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Piece/Pieces per week
Contact Now
Detailed Product Description
Connector Type: LC Polishing: UPC
Colour Of Connector: Green Cable Diameter: 0.9mm
Cable Jacket: PVC/LSZH Length: 1m/3m/customized
High Light:

optical patch cord

,

fiber optic patch cables



LC/APC Single mode simplex fiber Optic pigtail 0.9mm with Green Tip



Product Description
A fiber pigtail is a single short piece of optical fiber, that has an optical connector on one end and a length of exposed fiber at the other end.



The end of the pigtail is stripped back and fusion spliced to another single fiber. This is done easy in field with a multi-fiber trunk to break out the multi-fibers cable into its component for connection to the end equipment.



Pigtails can have female connectors and be mounted in a wall mount or patch panel, often in pairs although single-fiber solutions exist, to allow them to be connected to endpoints or other fiber runs with patch cables. Alternatively they can have male connectors and plug directly into an optical device.



This type of pigtail is LC/APC connector.



Specifiaction



Parameter Single Mode Multi Mode
Basic Fiber connector FC, SC, LC, ST, MU, MTRJ, MPO
Ferrule End-face PC UPC APC UPC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.3dB ≤0.3bB
Return Loss ≥50dB ≥55dB ≥60dB ≥35dB
Ceramic Ferrule Specification 125.5um concentricity deviations:<=1um 127um concentricity deviations:<=3um
Suitable Fiber 9/125um 50/125um,62.5/125um
End-face Geometry Radius of Curvature 7~25mm 5~12mm N/A
Fiber Protrusion ≤50nm ≤100nm N/A
Fiber Under Cut ≤100nm ≤100nm N/A
Apex offset ≤50um
Mechanical Exchangeability ≤0.2dB
Salt Spray ≤0.1dB
Drop ≤0.2dB(1.5M, 5 drops)
Vibration IL ≤0.2dB(550Hz, 1.5mm)
Repeatability ≤ 0.1dB(1000 times)
Durability > 1000 times
Operating Temperature -40°C ~ +85°C


Features

  1. 100% test before shipment
  2. Low insertion loss and high return loss
  3. Serialized & Individual Test Records
  4. Meets ROHS and Bell core GR 326-core standards
  5. Custom Configurations Available at No Extra Charge
  6. Available in fiber bunch, ribbon fan-out, pigtail available


Applications:



  • CATV, metro test equipment;
  • Telecommunication networks;
  •  Local area networks (LAN);
  •  Wide area networks (WAN);
  •  Premise installations;
  • Data processing networks;
  •  Video and military active device termination.
