High Speed Fiber Optic Tools , Dual - Channel Optical Power Meter 850 ~ 1700 Nm

China High Speed Fiber Optic Tools , Dual - Channel Optical Power Meter 850 ~ 1700 Nm supplier
High Speed Fiber Optic Tools , Dual - Channel Optical Power Meter 850 ~ 1700 Nm supplier High Speed Fiber Optic Tools , Dual - Channel Optical Power Meter 850 ~ 1700 Nm supplier

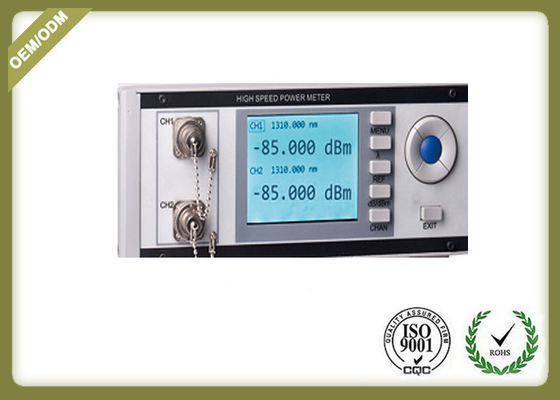

Large Image :  High Speed Fiber Optic Tools , Dual - Channel Optical Power Meter 850 ~ 1700 Nm

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-Lin
Certification: CE/RoHS
Model Number: HL-56

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: 1pc/box
Delivery Time: 4days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Piece/Pieces per week
Contact Now
Detailed Product Description
Sensor Element: InGaAs Detector Size: Φ2.0mm
Wavelength Range: 850~1700 Nm Power Range: +5dBm~-85dBm
Averaging Time: 100uS~1S Operating Temperature: -5~+40

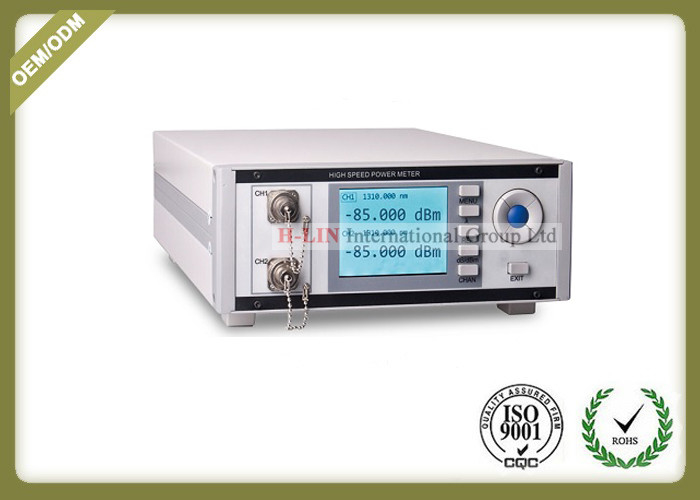

Dual-channel High Speed Optic Power Meter





Description:

Desktop dual channel high-speed optical power meter is according to the latest optical power testing needs, combined with the technical features of domestic and overseas optical power meter and the development of optical test equipment; the double channel high speed optical power meter has the advantages of the fast sampling rate (reach 51200 sampling points per second) and fast settling time, greatly improves the test efficiency; provide large area InGaAs detector and various adapters, to make it applicable to the bare optical fiber environment and dynamic range test; provides a more comprehensive menu setting function for various test cases.



Key Features:

1: the wavelength of each 5pm can be adjusted;
2: the highest sampling rate: 50KSPS;
3: the maximum external rate: 10KHz;
4: to provide external synchronous trigger and single trigger sampling function;
5: to provide the maximum value of automatic search mode (PDL mode);
6: to provide dual channel automatic ratio calculation (UNI mode)
7: up to 30 user defined calibration wavelengths;
8: rich menu set content, more comprehensive system function;
9: optical power detection is as low as -85dBm;



Specifications:

Sensor element InGaAs ①
②Detector size Φ2.0mm
Wavelength range 850~1700 nm
Power range +5dBm~-85dBm
③Linearity ±0.04dB (+5~-55dBm)
±0.08dB (-55~-65dBm)
±0.15dB (-65~-75dBm)
±0.3dB (-75~-85dBm)
Data logging capability 20,000 points/channel
Averaging time 100uS~1S
Applicable fiber type Standard SM and MM ≤ 62.5 μm core size
④Total uncertainty ±3%
⑤Sampling rate(Max) 50KSPS
⑥Dynamic range(logging mode) +5~60dBm
Frequency response
0 ~ 5 dBm range 10 kHz⑦
-10~0 dBm range 0 kHz
1-20 ~-10 dBm range 5 kHz
-30 ~-20 dBm range 1 kHz
Noise (peak-to-peak) (pW) <10pW⑧
External trigger rate 0.1Hz~10 KHz
Relative port to port uncertainty(continued) 0.04 dB⑨
nits dBm/Wattu
Accuracy 0.002dB
Resolution 0.1/0.01/0.001 dB
Communication interface RS232/USB
Operating temperature -5~+40
Storage conditions -25~+70
Power AC90~260(50Hz)
Weight 5
Dimensions 235*380*96



Application:
- The production and research of optical devices
- Fiber optic sensing research
- optical fiber CATV project
- Optical fiber communication engineering
- other optical fiber engineering



Packinglist:

1 dual channel high speed optical power meter main machine 1 sets
2 FC 2.5, Phi Phi 1.25 adapter (optional) 2
3 SMA to BNC line 2
4 SMA (M-M) line 2
5 USB line 1
6 power cord 1
7 CD CD 1
