Colorful 0.9mm Fiber Optic Patch Cord With ST / FC / SM Connector High Return Loss

China Colorful 0.9mm Fiber Optic Patch Cord  With ST / FC / SM Connector High Return Loss supplier
Colorful 0.9mm Fiber Optic Patch Cord  With ST / FC / SM Connector High Return Loss supplier Colorful 0.9mm Fiber Optic Patch Cord  With ST / FC / SM Connector High Return Loss supplier Colorful 0.9mm Fiber Optic Patch Cord  With ST / FC / SM Connector High Return Loss supplier Colorful 0.9mm Fiber Optic Patch Cord  With ST / FC / SM Connector High Return Loss supplier

Large Image :  Colorful 0.9mm Fiber Optic Patch Cord With ST / FC / SM Connector High Return Loss

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: ST 0.9mm

Payment & Shipping Terms:

Minimum Order Quantity: 100 Piece/Pieces
Price: negotiable
Packaging Details: 1 piece in a separate plastic bag, 10pcs or 15pcs for a big plastic bag. With the export standard carton
Delivery Time: 5days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Fiber Type: SM Or MM Connector: ST
Jacket: PVC/LSZH/OFNP Length: 1Meter
Cable Type: Indoor 0.9mm Clour: Various

various kinds of colorful 0.9mm cable with ST,FC SM connector





Product Description:





Fiber Optic Pigtail only one end has a connecting head, and the other end is a broken end of a fiber optic cable, connected with other fiber core by welding, installed in the fiber terminal box, used to connect the fiber cable and terminal equipment.





The tail fiber adopts advanced equipment and instruments and the most stringent production test standards in the industry. Its optical and mechanical properties reach the international highest and IEC standards. Using high quality ceramic core and high quality optical cable, the insertion loss is very small. It is suitable for the high demand optical fiber network environment such as telecommunications, broadcasting and television.
Adopt the most advanced grinding technology in the industry.
No scar and no dirt on the face.





Specifiaction:





Type SM MM
parameter UPC APC UPC PC
IL ≤0.2dB ≤0.2dB ≤0.3dB 0.3dB
RL ≥50dB ≥60dB ≥50dB ≥35dB
Max attenuation 0.4dB@1310nm 0.4dB@1310nm 3.0dB@850nm 3.0dB@850nm
0.3dB@1550nm 0.3dB@1550nm 1.2dB@1300nm 1.2dB@1300nm
Attenuation SM:1310 nm≤0.35dB/km;1550 nm≤0.25dB/km
MM:850 nm≤3.0dB/km; 1300 nm≤1.0dB/km
Durability ≥1000/Matings
Working operating -30℃~ +70℃





Feature:



Insertion loss is low
High return loss
Small volume and high density
High precision mechanical properties
Easy installation and operation





Application:



Optical fiber communication room / network cabinet
Optical cable transfer box
Image transmission CATV
FTTH, cable TV, LAN,,Wan

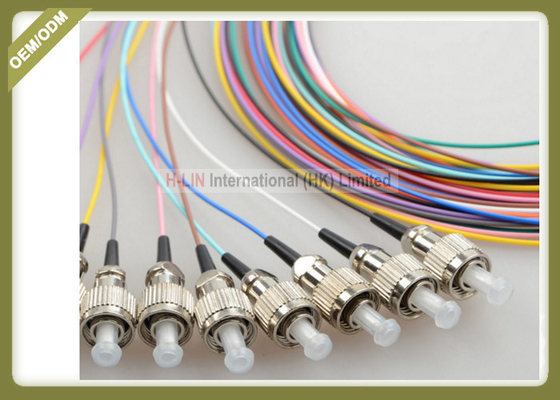

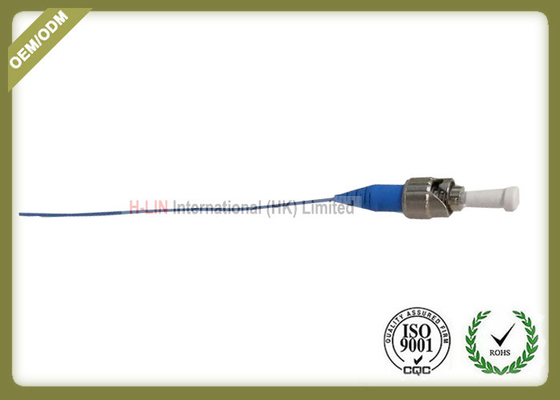

This one pigtail is simplex 0.9mm pigtail,it can be connected by ST,FC,SC,LC,no matter for color jacket or the boot of connector,there are various color for option.it can be supplied as request.

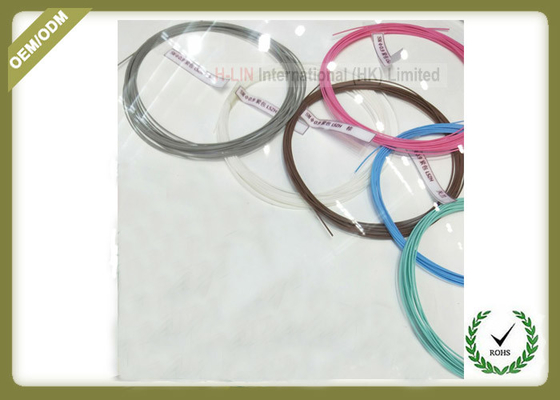

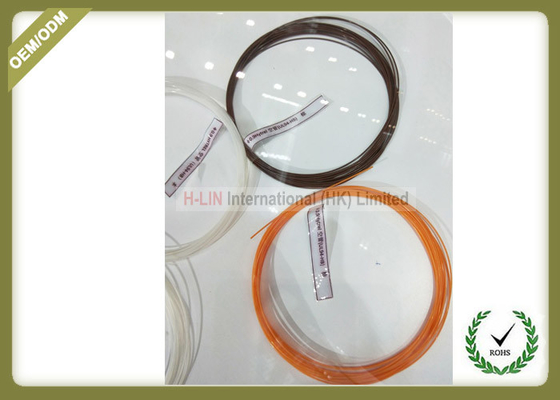

Fiber Optic pigtail usually diameter is 0.9mm,SM can be white color or yellow color jacket or even can be 12colors a pack.Can be made as client's request.And MM usually is orange color.



Our company do not have MOQ limit for pigtail,also it can be packed by plastic bag or plastic box.



All the connector used high quality plastic or metal material,and san huan ceramic ferrule,yantze fiber or corning fiber.









Colorful 0.9mm Fiber Optic Patch Cord  With ST / FC / SM Connector High Return Loss



Colorful 0.9mm Fiber Optic Patch Cord  With ST / FC / SM Connector High Return Loss
