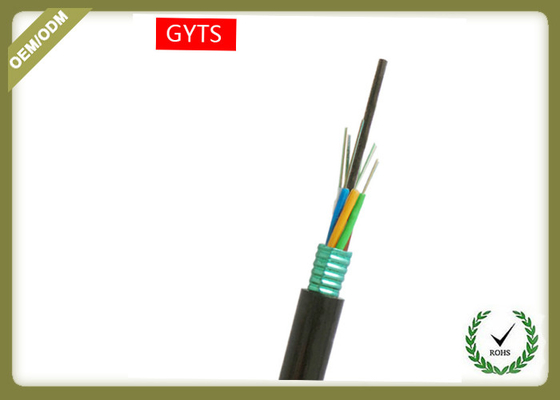

11.2mm Diameter Outdoor Fiber Optic Cable , Light Armored Fiber Cable With PE Jacket

China 11.2mm Diameter Outdoor Fiber Optic Cable , Light Armored Fiber Cable With PE Jacket supplier
11.2mm Diameter Outdoor Fiber Optic Cable , Light Armored Fiber Cable With PE Jacket supplier 11.2mm Diameter Outdoor Fiber Optic Cable , Light Armored Fiber Cable With PE Jacket supplier

Large Image :  11.2mm Diameter Outdoor Fiber Optic Cable , Light Armored Fiber Cable With PE Jacket

Product Details:

Place of Origin: China
Brand Name: H-LIN
Certification: CE,ISO
Model Number: GYTS

Payment & Shipping Terms:

Minimum Order Quantity: 1km
Price: Negotiable

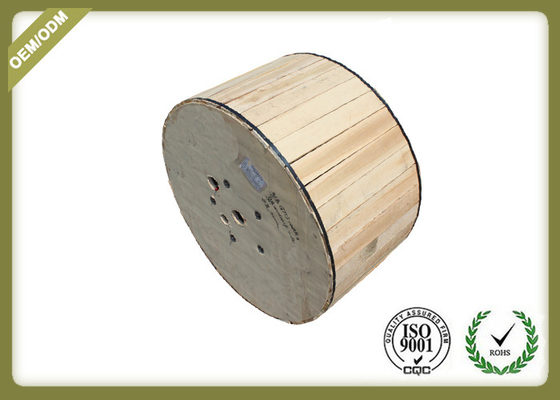

Packaging Details: wooden drum,2 or 3km fiber cable per drum,and by pallet to fix
Supply Ability: 8000 Kilometer/Kilometers per Month
Contact Now
Detailed Product Description
Fiber Cable Type:: Optical Fiber Cable GYTS Fiber Number:: 1-96fibers
Fiber Type: G652D/G655/G657/OM1/OM2.. Fiber Jacket: Black Color
Fiber Jacket Material: PE Fiber Diameter: 11.2mm
Armour Material: Corrugated Steel Tape Operating Temperature: --40°C~+70°C

Outdoor optical fiber cable GYTS with light armored PE jacket black color



Description:



The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.





Specifications:



Special tube filling compoud ensure a critical protection of fiber

Special design compact structure is good at preventing loose tubes from shrinking

Steel wire used as the central strength member

PSP enhancing moisture-proof



Our High quality PE sheath



11.2mm Diameter Outdoor Fiber Optic Cable , Light Armored Fiber Cable With PE Jacket



High Strength,

Resistance to aging,

easy peel,l

ong working life,

good bending performance



11.2mm Diameter Outdoor Fiber Optic Cable , Light Armored Fiber Cable With PE Jacket



Our Corrugated Steel tape Increased mechanical strength and improve the anti erosion capacity





Technical Parameters:



Item

Parameters
Loose tube
Material
PBT

Color
All colors display
Filler
Material
PE

Color
Black
CSM
Material
Phosphating steel wire
Armoured
Material
Plastic coated steel strip
Outer jacket
Material
MDPE

Color
Black
Min. bending radius
Static
10 times cable diameter

Dynamic
20 times cable diameter
Repeating bending
Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance
Short term
1500N
Crush
Short term
1000N/100mm





Characteristic


1. Accurately controlling the excess length of optical fiber ensures that the optical cable has excellent tensile and temperature characteristics.

2. The loose sleeve material itself has good water resistance and high strength. The tube is filled with special ointment, and the fiber is protected critically from pressure and softness.

3. PE sheath has excellent UV radiation resistance and environmental stress cracking resistance.

4, the following measures should be taken to ensure the waterproof performance of the cable.
A) single steel wire central reinforcement;
B) fill the loose tube with special adhesive.
C) 100% cable core filling;
D) GYTA double-sided plastic coated aluminum strip (APL) to improve the anti penetration capacity of optical cable.
E) good water blocking material prevents longitudinal seepage of optical cable.
