10/100M Railed Optical Media Converter Unmanaged Industrial Switch With 5 RJ45 Ethernet Port

China 10/100M Railed Optical Media Converter Unmanaged Industrial Switch With 5 RJ45 Ethernet Port supplier
10/100M Railed Optical Media Converter Unmanaged Industrial Switch With 5 RJ45 Ethernet Port supplier 10/100M Railed Optical Media Converter Unmanaged Industrial Switch With 5 RJ45 Ethernet Port supplier 10/100M Railed Optical Media Converter Unmanaged Industrial Switch With 5 RJ45 Ethernet Port supplier

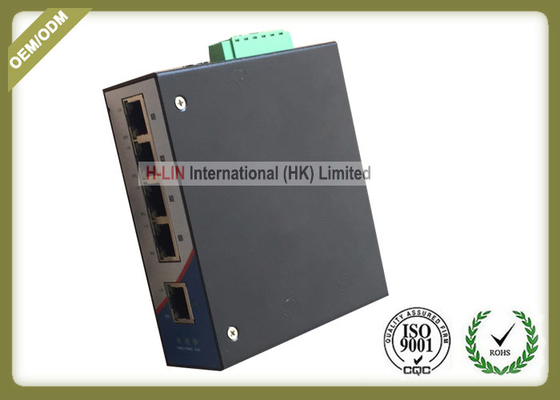

Large Image :  10/100M Railed Optical Media Converter Unmanaged Industrial Switch With 5 RJ45 Ethernet Port

Product Details:

Place of Origin: China
Brand Name: H-Lin
Certification: CE,Rohs,FC
Model Number: HL-RS1001

Payment & Shipping Terms:

Minimum Order Quantity: 2 pcs
Price: negotiable
Packaging Details: 1pc a separate box,20pcs,/ carton
Delivery Time: 5~8working days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: 5port Ethernet Switch Standard: IEEE 802.3af Standard
Size: 185*123*435mm Housing: Metal,IP30 Protection
Certification: CE,Rohs,FC Operating Voltage: 110-240V AC
Weight: 700g





100Mbps electric interfaces 5port ethernet industrial switch

power characteristics: DC9-60V, AC110-240V





The 100-mega series is a guideway Industrial Ethernet switch developed by Yuantuo Optoelectronics for the needs of wind power, transportation, petroleum and petrochemical industries. It contains 5 electrical contacts, 1 light and 4 electricity, 2 light and 3 electricity. High speed packet forwarding capability and ample backplane bandwidth ensures clear and smooth transmission of images. The anti-vibration rail clamping seat has the optional material of iron and aluminium shell, low power design without fan, extreme environmental temperature adaptability of -40 ~85 ~C and good EMC performance, which make the series products have the ability to work stably and reliably in harsh industrial environment.







Product features




Main ports: providing 100 megabytes and 100 megabytes, and supporting 10/100Mbps adaption.
Power characteristics: DC9-60V AC110-240V supports dual power input and anti reverse protection function.
Transmission distance: 0-100 meters; 20km
Meet standards: IEEE802.3, IEEE802.3u standard;
Safety and anti-interference: Excellent lightning protection, anti-static and anti-electromagnetic interference capabilities, supporting 1-way relay alarm output;
Appearance structure: IP40 grade protection, high strength aluminium shell and metal shell, DIN rail mounting, no fan, low power design;







Project Describe
Model
Power supply part Power supply mode Support dual power input
Adaptive voltage range DC9-60V , AC110-240V
Power waste <5W
Network port parameters Network port parameters Electric outlet:10/100Mbps FIBER PORT:100Mbps
transmission distance ethernet port:0-100m
fiber endface:20km
Network switching specification Network standard support IEEE 802.3,IEEE 802.3u
Packet cache 512Kbits
MAC address capacity 1K
State indication Power light PWR
SPD light Light indicator 100M, light indicator 10M
L/A electric indicator light 2 (green) lights indicate Link, flashing indication Act.
Certification standard Electromagnetic interference (EMI) FCC Part 15/CISPR22(EN55022):Class A
Standard IEC61000-4-2 (ESD): + 8kV contact discharge, + 15kV air discharge
  IEC61000-4-3(RS):10V/m(80~1000MHz)
Certification standard Electromagnetic sensitivity (EMS) IEC61000-4-4 (EFT): power line: + 4kV; data line: + 2kV
IEC61000-4-5 (Surge): power line: CM + 4kV; data line: + 2kV
IEC61000-6-2(general industrial standard)
Anti vibration IEC 60068-2-6
Impact resistance IEC 60068-2-27
Free fall IEC 60068-2-32
Operating environment working temperature -40℃~85℃
Storage temperature -40℃~85℃
Humidity (no condensation) 5-95%
Body property Size (length * width * height) contains interfaces. 110mm * 95mm * 30mm
Material Science 110mm * 95mm * 30mm/113mm*110mm*33mm
Color Aluminum shell / iron shell
Weight 350g
reliability Mean time between failures (MTBF) ≥500000h
Quality assurance 5 years warranty period

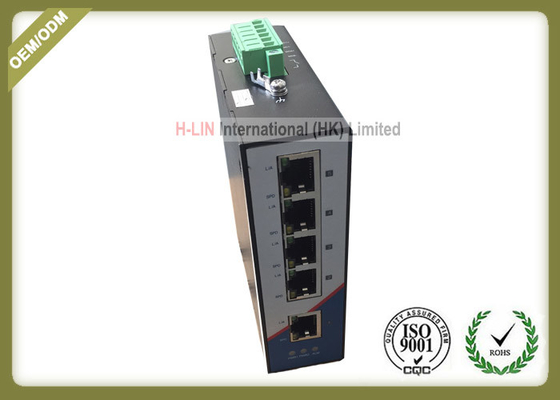

10/100M Railed Optical Media Converter Unmanaged Industrial Switch With 5 RJ45 Ethernet Port

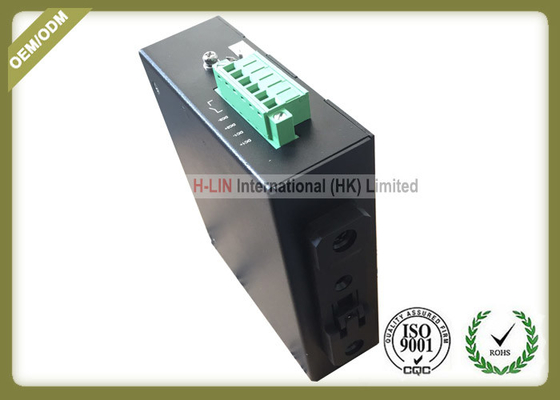

10/100M Railed Optical Media Converter Unmanaged Industrial Switch With 5 RJ45 Ethernet Port



Packing list:




Industrial Ethernet switch
Installation accessories
Instructions for use
Warranty card
Certificate of conformity
