|Core Number:||2||Jacket:||PVC Or LSZH|
|Mode:||Single Mode||Fiber:||G652B,G652D Or G657A|
|Steel Messenger:||FRP Or Steel Wire||Certification:||CE/ISO/ROHS|
|Diameter:||5.0*2.0mm||Temperature:||-20 Degree-+ 70 Degree|

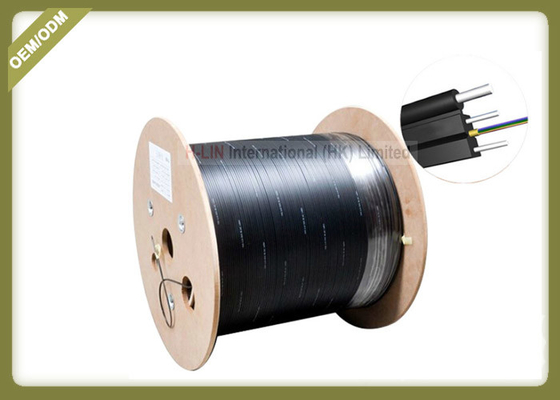

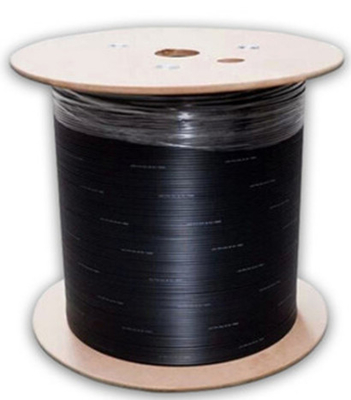

Outdoor 2cores 5.0*2.0mm FTTH Drop Cable with FRP strength member LSZH jacket black color
Self-supporting cable is also a kind of cable, also known as butterfly-shaped introducing cable for access network. It is a kind of cable which is different from ordinary cable in structure.
GJYXCH: Low Smoke Halogen-Free Butterfly Fiber Cable Reinforced by Metal for Indoor and Outdoor Use
Strengthen Component Requirements
The reinforcing members in optical cable can be metal reinforcing members of high strength stainless steel wire or phosphating steel wire, or non-metal reinforcing members of polyester aramid filament or other suitable fiber bundles. They should have sufficient Young's modulus and elastic strain range.
(2) The reinforcement component of the optical cable should be two, parallel symmetrical to the optical cable, and a thick steel wire suspension on the side.
(1) For PVC sheathed optical cable, sheath material should conform to HR-70 type of "70 C soft sheath grade PVC plastic" in GB/T 8815, and for flame retardant polyethylene sheathed optical cable, sheath material should conform to YD/T 1113.
(2) The surface of the sheath should be smooth and smooth, and there should be no visible cracks, bubbles and sand holes on the cross-section.
The sheath should be continuously extruded and wrapped on the optical fiber and reinforced components.
(4) The color of the sheath is generally black. It can also be produced according to other colors required by users.
FTTH (Fiber to The Home) is a kind of transmission cable used to connect directly to a home user or a business user. With no limits to its bandwidth, wavelength and transmission technology and being suitable for the application of various new services, FTTH cable is the best solution for the connection between the internet backbone to the user’s desktop.
Many domestic small factories modified electric-wires equipment to produce FTTH cable. They used unqualified fibers which is with very cheap price 3USD/KM to imitate G657 bend-resistant fiber, waste electric-wires and rubber slippers smashed as pvc raw material for the LSZH outer sheath. Those inferior cables will cause many problems such as short transmission distance, low bandwidth, intermittent signal and easy-to-crack of the cable jacket in several months, etc.
FTTH outdoor 2 core self-support Fiber Optic drop Cable G657A1

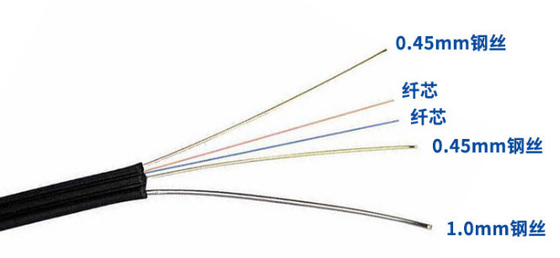

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.
A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
1.Special low-band-sensitivity fiber provides high bondwidth and excellent communication transmission property;
2.Two parallel strength members ensure good performance of crush resistance to protect the fiber;
3.Simple structure.light weight and high practicability;
4.Novel flute design,easily strip and splice,simplify the installation and maintenance
|Cable Count||Out sheath
|(MM)||(KG)||short term||long term||short term||long term||short term||long term||(℃)|
|Fiber Sort||Multimode||G.651||A1a:50/125||Graded-index fiber|
|G.652D||B2: Zero dispersion shifted|
|G.655||B1.2 :Cut-off wavelength shifted|
B4: Main technical data for positive
Cable construction details
