Payment & Shipping Terms:
|Core Number:||4||Jacket:||PVC Or LSZH|
|Weight:||22kg||Fiber:||G652B,G652D Or G657A|
|Steel Messenger:||Steel Wire||Certification:||CE/ISO/ROHS|
|Diameter:||4.0*2.0mm||Temperature:||-20 Degree-+ 70 Degree|

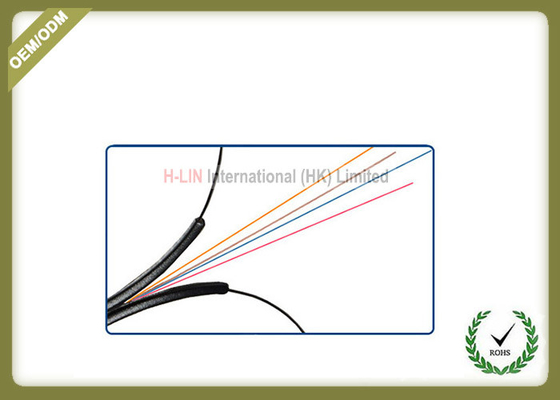

Indoor 4 core Fiber Optic Drop Cable for fiber to the home use black LSZH jacket
The optical fiber unit is positioned in the centre. Two parallel steel wire are placed at the two sides.then the cable is completed with white LSZH sheath
1 · Small bending radius, flexible performance can meet the requirement of FTTH
2· Adopt the fiber core excellent than ITU G.657 standard
3 Groove design of 8 type, easy to rip, install and maintain
3· Strength member at both side use as metal or FRP,outer jacket is PVC or LSZH
4· Small diameter, light weight and high practicability;
5: Fiber cores can be 1~12core,as client's request
FTTH (Fiber to The Home) is a kind of transmission cable used to connect directly to a home user or a business user. With no limits to its bandwidth, wavelength and transmission technology and being suitable for the application of various new services, FTTH cable is the best solution for the connection between the internet backbone to the user’s desktop.
Many domestic small factories modified electric-wires equipment to produce FTTH cable. They used unqualified fibers which is with very cheap price 3USD/KM to imitate G657 bend-resistant fiber, waste electric-wires and rubber slippers smashed as pvc raw material for the LSZH outer sheath. Those inferior cables will cause many problems such as short transmission distance, low bandwidth, intermittent signal and easy-to-crack of the cable jacket in several months, etc.
No weak current space, no extra space, non suspended ceiling area, from wire distribution cabinet to floor termination box,FTTH , reconstruction of old buildings
A-level optical fiber is fast and stable, with long transmission distance, uniform thickness and good flexibility of optical fiber. New sheath material, smooth appearance, flame retardant, anti-corrosion, new LSZH material, using FRP material reinforcement, corrosion resistance, high strength.
Super flexural optical fibers provide greater broadband and enhance network transmission characteristics. Easy to achieve 100M/S
|Cable Weight (kg/km)||
Long/ Short term
Long/ Short term
Min. Bend Radius (mm)
Note: Range of temperature: -30~+70°C
Cable construction details
