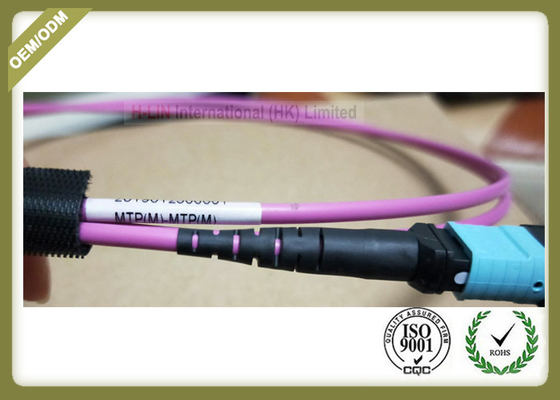

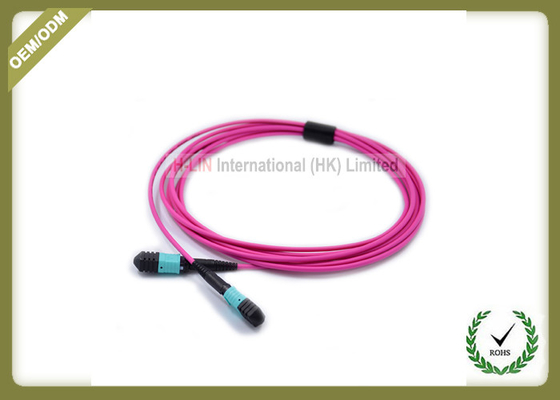

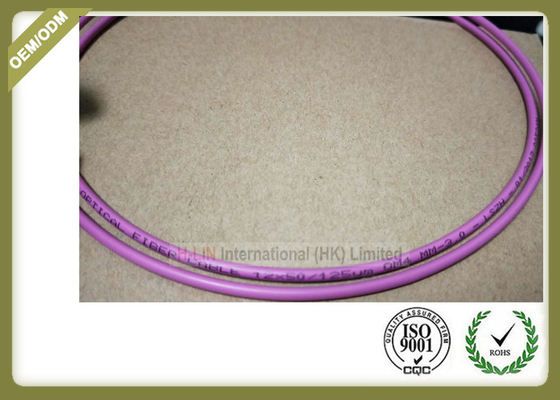

MTP TO MTP OM4 12 Core Fiber Optic Patch Cord Violet Color Multimode LSZH Jacket

China MTP TO MTP OM4 12 Core Fiber Optic Patch Cord Violet Color Multimode LSZH Jacket supplier
MTP TO MTP OM4 12 Core Fiber Optic Patch Cord Violet Color Multimode LSZH Jacket supplier MTP TO MTP OM4 12 Core Fiber Optic Patch Cord Violet Color Multimode LSZH Jacket supplier MTP TO MTP OM4 12 Core Fiber Optic Patch Cord Violet Color Multimode LSZH Jacket supplier

Large Image :  MTP TO MTP OM4 12 Core Fiber Optic Patch Cord Violet Color Multimode LSZH Jacket

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/ROHS/IOS9001
Model Number: MTP patchcord

Payment & Shipping Terms:

Minimum Order Quantity: 5 Piece/Pieces
Price: negotiable
Packaging Details: 1 piece in a separate plastic bag, 10pcs or 15pcs for a big plastic bag. With the export standard carton
Delivery Time: 5days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Fiber Type: Multimode Connector: MTP Female
Jacket: LSZH Length: 1M
Cable Type: OM4 Dianeter: 3.0mm
High Light:

optical patch cord

,

fiber optic pigtail

MTP TO MTP OM4 12Core Fiber Trunk Cable Patch Cord Violet color





Product Description:





Optical fiber hopping can be divided into single-mode and multi-mode hopping of common silicon-based optical fiber according to the transmission medium. According to the structure of connector, it can be divided into FC hopping, SC hopping, ST hopping, LC hopping, MTRJ hopping, MPO hopping, MU hopping, SMA hopping, E2000 hopping, DIN hopping and so on. The more common optical fiber jumpers can also be divided into FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST and so on. The number, length and physical structure of jumper core can also be defined by the customer. The company uses high-precision grinding machine, first-class test control means, rigorous inspection mechanism, all optical fiber sleeves are made of high-quality ceramics, so that any configuration of fiber tail line and jumper can make optical signal loss very small, to ensure that there is very low insertion loss and reflection loss.





LCuniboot dual-core fiber jumper is suitable for dense high-density fiber optic wiring rack, highly flexible 2-core single fiber cable reduces the congestion of fiber optic cable, and in high-density wiring rack can be fast and convenient plug-and-pull connectors, further improving the convenience of jumper management and laying.





Specifiaction:





Product Name MTP female to MTP female patchcord
Modle Number MTP-MTP
Diameter 3.0mm
Color Violet or Aqua for option
Cable length 1.2.3...Customized
Polishing yes,polished
Material LSZH
Form of sale OEM/ODM
Use Connect the optical transmitter, receiver, and the terminal box.
Custom Design Welcome
Sample Lead Time 1-3days
Certificate CE,ROHS
Advantage Low IL,High RL









Parameter Unit FC, SC, LC ST, MU MT-RJ, MPO E2000
SM MM SM MM SM MM SM
PC/UPC APC PC PC/UPC PC PC/UPC PC PC APC

Insertion loss(typical)

dB ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3 ≤ 0.3
Return loss dB ≥ 50 ≥ 60 ≥ 30 ≥ 50 ≥ 30 ≥ 50 ≥ 30 ≥ 55 ≥ 75
Operating wavelength nm 1310, 1550 1300(OM1)850 1310, 1550 1300(OM1)850 1310, 1550 1300(OM1)850 1310, 1550
Exchangeability dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Vibration dB ≤ 0.2 ≤ 0.2 ≤ 0.2 ≤ 0.2
Operating temperature   -40~75 -40~75 -40~75 -40~75
Storage temperature   -45~85 -45~85 -45~85 -45~85
Cable diameter mm φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0, φ 0.9 φ 3.0, φ 2.0




Feature:



• Low insertion loss,high return loss
• Excellent Temperature stability
• Good repeatability and exchangeability
• Excellent mechanical endurance
• Strict curing time and temperature control
• Strict testing standards and methods for quality
• Environment protection (ROHS Compliance)
• The fiber optical patch cord can be customized according to customers'specific
requirements (Customized Connector/Length/package...)
• 100% NEW raw material and well quality control ensure the best life time.





Application:



Optical fiber communication system, optical fiber access network, optical fiber data transmission, optical fiber CATV, local area network (LAN), test equipment







MTP TO MTP OM4 12 Core Fiber Optic Patch Cord Violet Color Multimode LSZH Jacket





MTP TO MTP OM4 12 Core Fiber Optic Patch Cord Violet Color Multimode LSZH Jacket
