OM3 Type Indoor Fiber Optic Cable PVC / LSZH Jacket GJFPH 4-24F For Data Center

China OM3 Type Indoor Fiber Optic Cable PVC / LSZH Jacket GJFPH 4-24F For Data Center supplier
OM3 Type Indoor Fiber Optic Cable PVC / LSZH Jacket GJFPH 4-24F For Data Center supplier OM3 Type Indoor Fiber Optic Cable PVC / LSZH Jacket GJFPH 4-24F For Data Center supplier

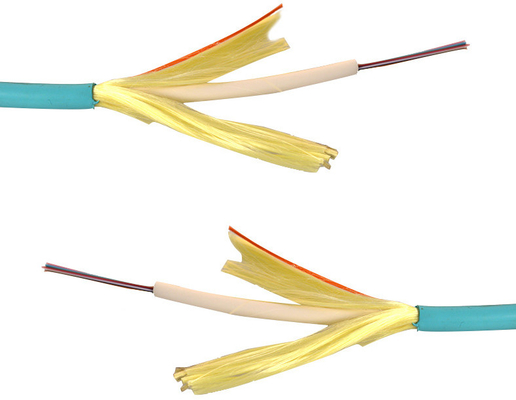

Large Image :  OM3 Type Indoor Fiber Optic Cable PVC / LSZH Jacket GJFPH 4-24F For Data Center

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE/FC/ROHS
Model Number: GJFJV-12B

Payment & Shipping Terms:

Minimum Order Quantity: 1 km
Price: negotiable
Packaging Details: package as per customer's request
Delivery Time: Shipped in 3 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Meter/Meters per Day
Contact Now
Detailed Product Description
Type: Indoor Cable Application: Telecommunications
Core Number: 4~24core Fiber Type: MM OM3
Jacket: PVC Or LSZH Diameter: 6.0mm
Fire Reatardant: YES Armoured: Aramid Yarn/Kevlar Yarn

Indoor OM3 type  Multicore Fiber optical Cable with customerized jacket color(GJFJV)









Optical Characteristics:

  G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm   ≤3.0 dB/km ≤3.0 dB/km
@1300nm   ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm   ≥500 MHz·km ≥200 MHz·km
@1300nm   ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture   0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm



Mechanical Characteristics



Tensile Strength(N)
Long term
400
Short term
1300
Crush Resistance(N/100mm)
Long term
300
Short term
1000
Bending Radius(mm)
Dynamic
20D
Static
10D



Fiber core color


No.
1
2
3
4
5
6
Color
Blue
Orange
Green
Brown
Gray
White
No.
7
8
9
10
11
12
Color
Red
Black
Yellow
Purple
Pink
Aqua

Product Description

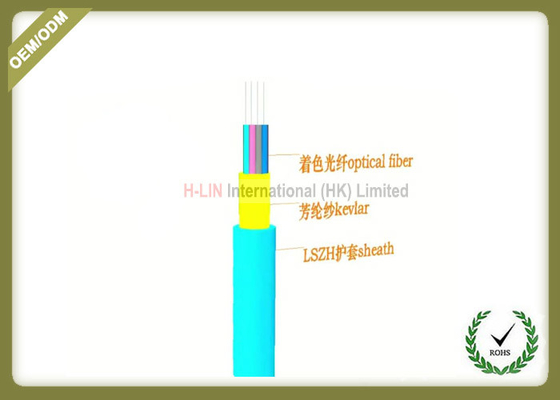

GJFJV cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVCor LSZH sheath, with dry-type water-blocking materials between fiber and sheath.




1 fiber, Φ900μm or Φ600μm tight buffer , spiral steel armor, layer of Kevlar yarn, LSZH/ PVC/ OFNR Jacket.





Applications

· Used in pigtails and patch cords;
· Used in optical connections in optical communication equipment rooms and optical distribution frames;
· Used in optical connections in optical apparatus and equipments.



Main Features


1.Hight strength Kevlar yarn member.
2.More tight buffered design.
3.Round construction.
4.Saft. Easy to strip.







OM3 Type Indoor Fiber Optic Cable PVC / LSZH Jacket GJFPH 4-24F For Data Center

OM3 Type Indoor Fiber Optic Cable PVC / LSZH Jacket GJFPH 4-24F For Data Center





Product Introduction:



The jacket anti-corrosion,waterproof ,Ultraviolet ressistant,flame retardant environmental protection etc.

All diellectric structure,no electromagnetic interference,strict process scientific and reasonable design,

Aramid strengthening origianl ,enabling the cable tensile performance excellent,

Diameter and small bending radius,freely install in narrow space,to meet the different needs of indoor
