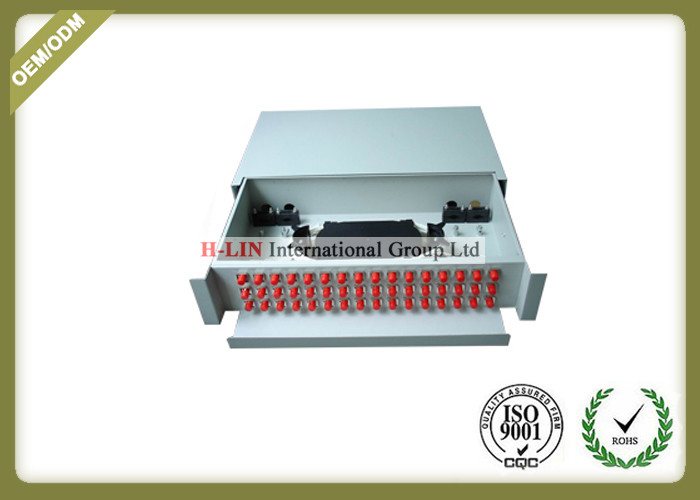

2U 48 Ports Slidable Fiber Optic Distribution Box / Distribution Cabinet Rack Mounted

China 2U 48 Ports Slidable Fiber Optic Distribution Box / Distribution Cabinet Rack Mounted supplier

Large Image :  2U 48 Ports Slidable Fiber Optic Distribution Box / Distribution Cabinet Rack Mounted

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-Lin
Certification: CE/FCC/ROHS
Model Number: HL-RSODF-2U48

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: negotiable
Packaging Details: 1pcs a separate box , 5pcs a Carton
Delivery Time: 1week after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pieces/week
Contact Now
Detailed Product Description
Material: Cold-roll Steel Painting Method: Electrostatic Painting
Port: 12, 24, 48, 96 Or Customized Dimension: 450x 320x46.5 Mm
Adapter Plate: FC, SC, LC, ST Splice Tray: ABS Plastic Tray Inside, 12cores Per Tray
Type: Rack Mouted Slidable Type, Indoor Using

2U 48 Ports Slidable Rack-mounted Optic Distribution Box without front cover



2U 19' Fixed Rack Mount Distribution Frame 48core



This slidable type fiber optic distribution frame is standard 19 inch design, cold-roll steel box, can be slided out with sliding rails, no front cover, applicable for existing systems.




Features:

Slide out drawer for easy cable management
4 fiber cable entry ports at rear side
Cable entry ports suitable for single fiber, bundle & ribbon fiber cables
Rack mouted slidable type, indoor using;



Application:



+ Telecommunications subscriber loop

+ Fiber to the home (FTTH)

+ LAN/WAN

+ CATV



Parameters:



Operating temperature Relative humidity Atmospheric pressure Durability Standard working wavelength
-5~+40℃ ≤85%(+30℃) 70~-106Kpa >1000 times 850nm, 1310nm, 1550nm




Specification:

Model Capacity Height Dimension Remark
HL-RSODF-2U48 48 cores 2U 450x 320x46.5 mm 4pc splice tray
