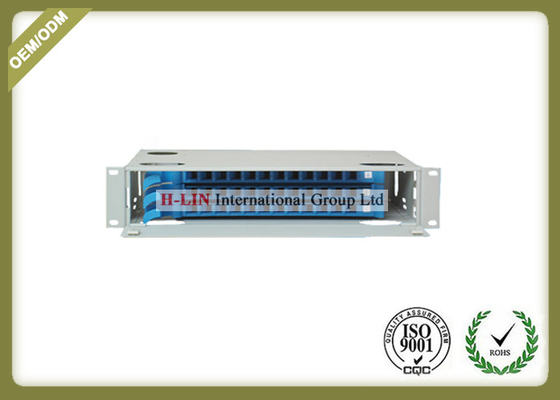

Metal Fiber Optic Distribution Box , 2U 36 Ports Network Optical Distribution Cabinet

China Metal Fiber Optic Distribution Box , 2U 36 Ports Network Optical Distribution Cabinet supplier

Large Image :  Metal Fiber Optic Distribution Box , 2U 36 Ports Network Optical Distribution Cabinet

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-Lin
Certification: CE/FCC/ROHS
Model Number: HL-FODF-2U36SC

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: negotiable
Packaging Details: 1pcs a separate box , 5pcs a Carton
Delivery Time: 1week after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pieces/week
Contact Now
Detailed Product Description
Material: Cold-roll Steel Or Aluminum Painting Method: Electrostatic Painting
Color Painting: Black,White,Grey Or Customized Port: 12, 24, 36,48, 72,144 Or Customized
Dimension: 490x305x89mm Adapter Plate: SC,FC,ST,LC ,E2000 For Option
Type: Rack-mouted Fixed Type

2U 36 Ports Fixed Rack-mounted Optic Distribution Box for SC Simplex Adapter



It can be used in the termination and distribution of partial trunk fiber cable in fiber cable communication system,
easy to realize connection, distribution and adjustment, it is distribution and connection equipment.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure
to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and
management.

Rack-mount Fiber Optic Distribution Frame is modular design with drawable trays inside and cold-rolled

steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.



It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. This frame is ideal for indoor fiber optic cables connection storage, distribution and management.


Features:


1, Modular design with splicing and distribution function



2, Standard size, light weight and reasonable structure



3, Compact design for space saving



4, Suitable for ribbon and single fiber



5, Various panel plate to fit different adapter interface



6, Front access design panel design for easy operation



7, Suitable for 19'' or 23'' standard optic distribution cabinets.



8, Splice tray units inside changeable



9, Front mark on the plate is easy for identification and operation



10, 12 cores splice tray unit can storage max. 2m pigtail



Application:

• Telecommunications subscriber loop

• Fiber to the home (FTTH)

• LAN/WAN

• CATV

Specification:

Model Core Count Height Dimension(mm) Weight(kg)
HL-FODF-7U144 144 7U 490x305x311.5 17.1
HL-FODF-5U96 96 5U 490x305x222.5 11
HL-FODF-4U72 72 4U 490x305x178 9
HL-FODF-3U48 48 3U 490x305x133.5 7
HL-FODF-2U36 36 2U 490x305x89 5.7
HL-FODF-2U24 24 2U 490x305x89 4.6



Packaging & Shipping:

Metal Fiber Optic Distribution Box , 2U 36 Ports Network Optical Distribution Cabinet
