GJYXCH 4core Single Mode Outdoor Fiber Optic Cable with FRP messenger wire

China GJYXCH 4core Single Mode Outdoor Fiber Optic Cable with FRP messenger wire supplier
GJYXCH 4core Single Mode Outdoor Fiber Optic Cable with FRP messenger wire supplier GJYXCH 4core Single Mode Outdoor Fiber Optic Cable with FRP messenger wire supplier GJYXCH 4core Single Mode Outdoor Fiber Optic Cable with FRP messenger wire supplier

Large Image :  GJYXCH 4core Single Mode Outdoor Fiber Optic Cable with FRP messenger wire

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE,Rohs
Model Number: FTTH-4core

Payment & Shipping Terms:

Minimum Order Quantity: 1 Roll/Rolls
Price: negotiable
Packaging Details: 1km/reel,2 reels/carton,or Package as per customer request
Delivery Time: 3-5Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Kilometer/Kilometers per Day
Contact Now
Detailed Product Description
Number Of Cores: 4 Fiber: G652B,G652D Or G657A
Strength Member Material: FRP Messenger Wire Material: Phosphating Steel Wire
Outer Jacket Material: LSZH Operation Temperature: -20℃~+70℃
High Light:

ftth aerial drop cable

,

fiber drop cable



GJYXCH 4core FTTH Drop Cable




Feature



  • The optical cable has small diameter, lightweight, low cost, low construction cost.
  • It is suitable for mechanical splicing technology, fast, and flexible.
  • The optical cable has high-tension and anti-squash force,self-supporting structure can meet the requirement of 50 meters pull-fly.
  • It uses aromatic polyamide materials to be the strengthen material.
  • The optical cable is soft, good bending performance, and ensure that the bending performance can meet the requirements.
  • It uses low smoke zero-halogen material, ensure that the cable can meet there requirements for the flame-retardant materials indoor.
  • The optical fiber is the bend insensitive fiber which can meet requirement of ITU-T G.657.
  • Highcarbon steel wire should be used for Self-supporting strengthen device of optical cable, superior tensile properties contented.



Cable Data



(Item)   (Parameters)
Fiber Color All colors display
Number of cores 4
Strength member Material FRP
Messenger wire Material Phosphating steel wire
Outer jacket Material LSZH
Color Black/white/customized
Cable diameter (Rip off the messenger wire) (mm) 2.0±0.2*4.0±0.2
Static 15mm
Min. bending radius(Rip off the messenger wire) Dynamic 30mm
Tensile performance Short term 600N
Crush Short term 2200N/100mm





Technical Parameters



Fiber Count Cable Diameter Cable Weight Tensile Strength Crush Resistance Bending Radius
mm kg/km Long/Short Term Long/Short Term Static/Dynamic
    N N/100mm mm
1 (2.0±0.2)×(5.0±0.2) 20 60/120 300/1000 15/30
2 (2.0±0.2)×(5.0±0.2) 20 60/120 300/1000 15/30
4 (2.0±0.2)×(5.5±0.2) 21 60/120 300/1000 15/30
6 (2.0±0.2)×(6.0±0.2) 22 60/120 300/1000 15/30





Application



  • With the development of the telecommunications industry, the communications networks develop from theunitary voice service to the full-service integratedcommunications networkwith various digital services of voice, data, and video.
  • The construction of optical networks develops from the backbone network, corenetwork to the MANand access net works.
  • Since the fiber withfrequencybandwidth has the strengths of high transmission capacity and lowattenuation,FTTH supports various kinds of services, the features such aswider bandwidth,convenient maintenance are the foundation for our company todesign the dropoptical cable, which is applicable to the accession of the user’send in thebroadband access network.



Package



Use Wooden Drum or as requirements.



Usually for each roll, the cable length is 2km, but we could provide customized package for different cable lengths.





Product Show

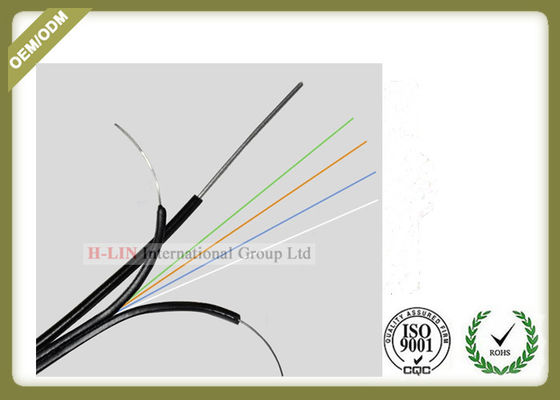

GJYXCH 4core Single Mode Outdoor Fiber Optic Cable with FRP messenger wire
