|Type:||GYFTY||Central Strength Member:||FRP|
|Jacket:||PE||Outer Diameter:||10.5 +_0.3mm* 17.8mm +_0.3mm|
|Fiber Count:||6~144core||Loose Tube Material:||PBT|
waterproof fiber optic cable,
outdoor armored fiber optic cable
Loose tube stranding fiber optic cable also Thunder-proof cable GYFTY

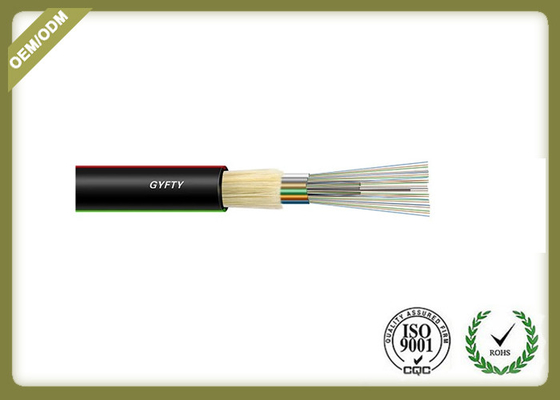

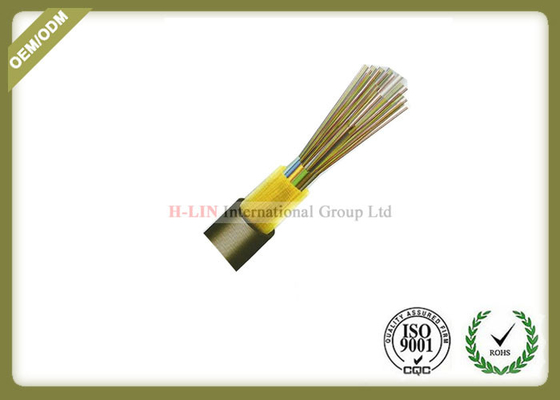

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.
|Attenuation||@850nm||≤3.0 dB/km||≤3.0 dB/km|
|(+20℃)||@1300nm||≤1.0 dB/km||≤1.0 dB/km|
|Bandwidth (Class A)||@850nm||≥500 MHz·km||≥200 MHz·km|
|@1300nm||≥1000 MHz·km||≥600 MHz·km|
|Cable Cut-off Wavelengthλcc||≤1260nm||
☆ Good mechanical and temperature performance
☆ High strength looes tube that is hydrolysis resistant
☆ Special tube filling compound ensure a critical protection of fiber
☆ Single Fiber Reinforced Plastic as the central strength member
☆ Crush resistance and flexibility
☆ Loose tube filling compound
☆ 100% cable core filling
☆ Adopted to Outdoor distribution.
☆ Adopted to trunk power transmission system.
☆ Access network and local network in high electromagnetic interfering places Adopted to Outdoor distribution.
Label will be sticked at wooden drum,include style of optical cable and fiber account,length,Gross weight KGS,Total drums amount,manufacture date
