Single Sheathed Nonmetallic Waterproof Fiber Optic Cable PE Jacket GYFTY-12B1.3
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Place Of Origin: | Shenzhen,China | Fiber Count:: | 2-288 Core |
|---|---|---|---|
| Jacket:: | PE | Fiber Optic Type: | G652D Or G652B |
| Temperature Range: | -40℃~+70℃ | Non-Centeral Strength Member:: | FRP |
| Certificate:: | ISO/CE/RoHS/SGS | Installation:: | Aerial |
| Highlight: | waterproof fiber optic cable,outdoor armored fiber optic cable |
||
Stranded loose tube non-metallic non-armored fiber optic cable GYFTY
Description:

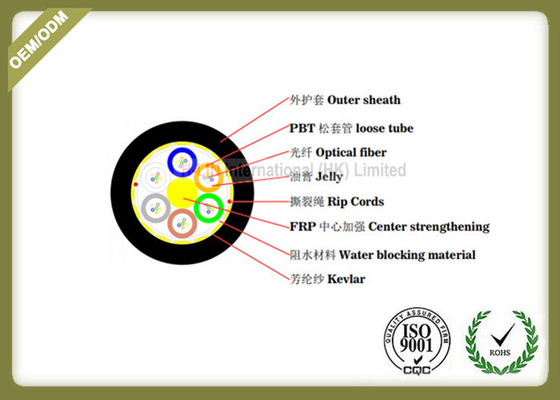

The fibres are positioned in a loose tube made of PBT. The tube is filled with a water-resistant filling compound. A fibre reinforce plastic locates in the center of core as a non-metallic strength member. The tubes (and the fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Specifications
a)Low loss,low chromatic dispersion;
b)Excellent flexible capability and protection capability against bending;
c)Special excess-length control method and cabling mode ensures perfect machanical
d)and enviromental properties;
e)Filling water-blocking jelly brings entirly cross section double water blocking capability
Application
l Suitable for a minefield and electronagnetic interference, seritously aera of cable distribuion
I Suitable for Aerial, trunk power transmission system
I Access network and local network in high electromagnetic interfering places
Transmission Charactics:
| Fiber style | Unit | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-300 | ||
| Condition | nm | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | ||
| Attenuation | dB/km | 0.4/0.3 | 3.5/1.5 | 3.5/1.5 | 3.5/1.5 | ||
| Dispersion | 1550nm | Ps (nm ·km) | ≤18 | ----- | ----- | Dispersion | |
| 1625nm | Ps (nm ·km) | ≤22 | ----- | ----- | |||
| Bandwidth | 850nm | MHZ ·.km | ----- | ≥400 | ≥160 | Bandwidth | |
| 1300nm | MHZ. ·km | ----- | ≥800 | ≥500 | |||
| Zero dispersion wavelength | nm | ≥1302 ,≤1322 | ------ | ------ | ≥1295 ,≤1320 | ||
| Zero dispersion slope | nm | ≤0.091 | ------ | ------ | ≤0.11 | ||
| PMD Maximum Individual Fibre | um | ≤0.2 | ------ | ------ | ------ | ||
| PMD Design Link Value | Ps/(nm2*km) | ≤0.08 | ------ | ------ | ------ | ||
| Fibre cutoff wavelength λc | nm | ≥1180 ,≤1330 | ------ | ------ | ------ | ||
| Cable cutoff wavelengthλcc | nm | ≤1260 | ------- | ------- | ------- | ||
| Mode field diameter(MFD) | 1310nm | um | 9.2±0.4 | ------ | ------- | ------- | |
Technical parameter:
| Fiber count(core) | 2-42 | 44-72 | 74-84 | 86-96 | 98-108 | 110-120 | 122-132 | 134-144 |
| Outer diameter(mm) | 10.4 | 11.2 | 12.2 | 14.0 | 14.8 | 15.8 | 16.6 | 17.4 |
| Cable weigh(kg/km) | 90 | 100 | 115 | 180 | 195 | 220 | 240 | 265 |
| Minimum tensile strength(N) | Short-term: 1500 | |||||||
| Long-term: 600 | ||||||||
| Minimum crushing(N/100mm) | Short-term: 1000 | |||||||
| Long-term: 300 | ||||||||
| Bending radius | Static:15 times of diameter Dynamic:30 times of diameter | |||||||

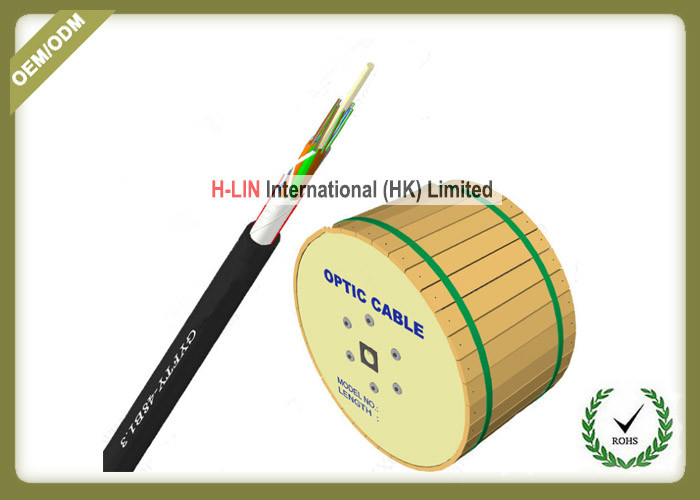

Detailes Image:
