Media Converter Single Mode Fiber To Rj45 With 1 10/100M UTP Ports And 1 Fiber Port
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | 100Mbps Fiber Media Converter | Standard: | IEEE802.3u 100Base-TX |
|---|---|---|---|
| Fiber Type: | Singlemode Duplex Fiber | Wavelength: | 1310nm |
| Power Supply: | External Power Supply | Certification: | CE,Rohs,FC |
| Fiber Port: | SC Port | Network Port: | 1 RJ45 Port |
| SIZE: | 95mm X 70mm X 25mm | ||
| High Light: | optical media converter,network media converter |
||
High Quality 10/100M Singlemode Duplex Fiber 1 Fx Port + 1RJ-45 Ports Optical Media Converter
10/100M 1 RJ45 port + 1 Fiber Port Switch

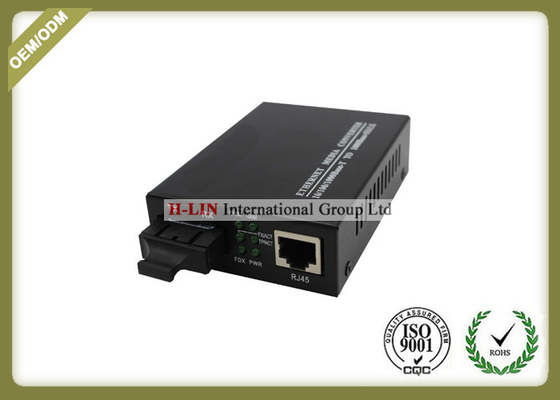

This media converter has 1 10/100M UTP ports and 1 fiber port.
The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet.
Features:
1. One 10/100Base-T RJ45 ports and one SC fiber port .It can convert Optical Electric Ethernet signals between 10/100M UTP ports and 100M optical fiber ports and switch Ethernet singnals between port and port.
2. Complies with IEEE802.3 (10BASE-T) and IEEE802.3u (100BASE-TX/FX) standards
3. Auto-negotiation support on RJ45 port
4. Auto-Negotiation of duplex(HDX/FDX) on RJ45 port
5. Auto MDI/MDI-X support on RJ45 port
6. Distances up to 20~120km, single fiber
Quality Assurance
MTBF > 100,000 hours;
Replacement within one year and non-charge repair within three years guaranteed
Application
Application Fields
- For intranet prepared for expansion from 10M to 100M
- For integrated data network for multimedia such as image, voice and etc.
- For point-to-point computer data transmission
- For computer data transmission network in a wide range of business application
- For broadband campus network, cable TV and intelligent FTTB/FTTH data tape
- In combination with switchboard or other computer network facilitates for: chain-type, star-type and ring-type network and other computer networks
Application Industries
Intelligent transport monitoring system, safety and security monitoring system, campus network, industrial monitoring (electric power, chemical industry, steel, oil, railway and water conservancy etc.); military monitoring (warehouse, guard and confidentiality etc.) TV program transfer system;
