Number Of Conductors: | 2-12 | Jacket: | PVC/LSZH /PE |
---|---|---|---|
Strength Member: | Aramid Yarn/Glass Yarn | Certification: | CE/ROHS/ISO9001 |
OD: | 6.5mm~9.5mm | Filling: | Ointment Filling |
High Light: | waterproof fiber optic cable,outdoor armored fiber optic cable |

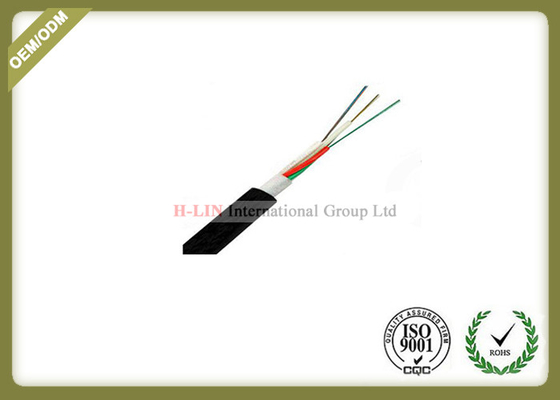

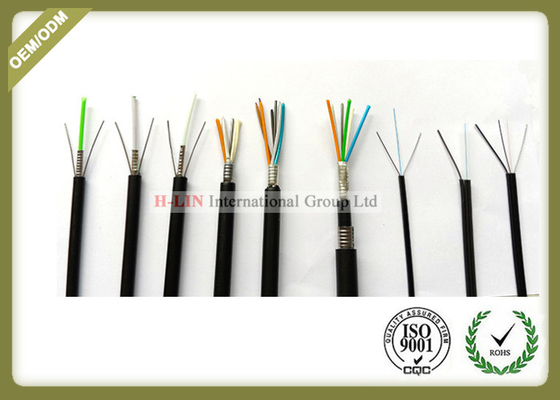

Multi-core fiber optic loose tube cable for outdoor and indoor use with Aramid yarn OR Glass yarn
Description:
A: Fibers centrally bundled in the PBT loose tube,
B: The loose tube bound by high strength aramid yarn
C: Polyethylene( PE) jacket or PVC,LSZH jacket
Characteristics:
1. 12 different colors according to the chromatogram
2. Small cable diameter,light weight.
3. Fibers protected by filling compound
Company Profile:
H-Lin is the trademark of H-Lin International Group Limited
It is a Hi-Tech enterprise specialized in manufacturing and exporting optical communications equipments and network accessories.
It has more than 10 years experience in optical and telecom communication field.
At present the products including fiber optic assembly,optic distribution frame,optic media converter,SFP Module,CAT5E-7 cable,optical fiber cable etc.
The main markets focus on Mid East, North America and Southeast Asia.
It is well-thought-of in old clients by quick response and good service. Keeping faith and empressement will be always in all staff's mind.
Structure and Technical Specifications GYFTY
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
Short Term | Long Term | Short Term | Long Term | |||||
2~36 | 10.2 | 85 | 6 | 6 | 1500 | 600 | 1000 | 300 |
38~72 | 11.1 | 100 | 12 | 6 | 1500 | 600 | 1000 | 300 |
74~96 | 12.6 | 130 | 12 | 8 | 1500 | 600 | 1000 | 300 |
98~120 | 14.1 | 162 | 12 | 10 | 1500 | 600 | 1000 | 300 |
122~144 | 15.9 | 204 | 12 | 12 | 1800 | 600 | 1000 | 300 |
146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 | 600 | 1000 | 300 |
>144 | Available upon customer request |
