NSN boot LC duplex Fiber Optic Jumper NSN-NSN LSZH 7.0mm diameter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | NSN-NSN | Fiber Count: | 2 |
|---|---|---|---|
| Fiber Type: | SM Or MM | Outer Diameter: | 7.0mm OR 5.0mm |
| USE: | FTTx Solutions | Outer Material: | LSZH |

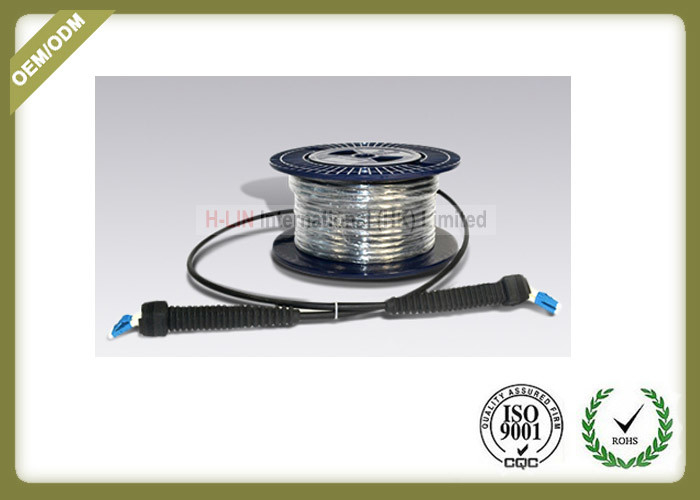

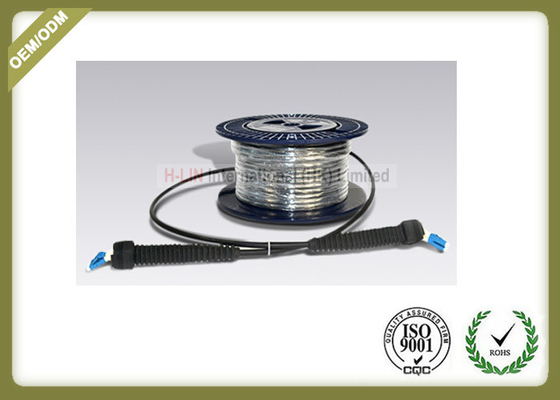

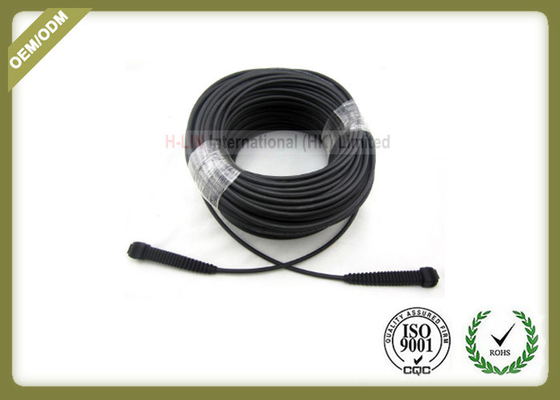

NSN boot LC duplex Fiber Optic Jumper NSN-NSN LSZH 7.0mm diameter
Duplex Outdoor Nsn Ftta (fiber to the antenna) Patch Cord

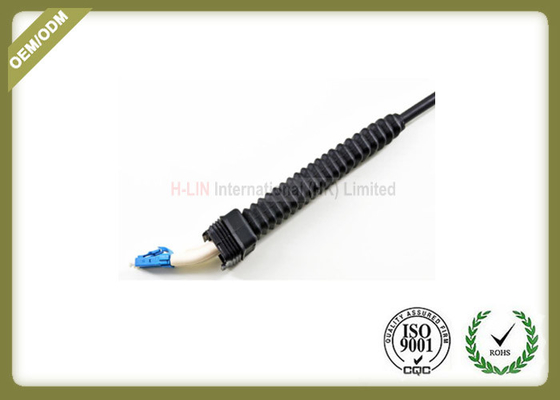

It is mainly used in terminal systems of Nokia Siemens. This boot is corrugated waterproof square rubber
-for protecting LC duplex connectors inside.
NSN FTTA Duplex Branch Patch Cord for the new generation wireless base stations pulled far tailored
products that can be meet the FTTA (fiber to the top of the tower) program requirements for outdoor
environment conditions and adverse weather conditions.
Features:
The material in the jumer cable are all-weather and UV-resistant
IP67 water and dust protection
• Good mechanical and environmental characteristics;
• Flame retardant characteristics meet the requirements of relevant standards;
• The mechanical characteristics of jacket meet the requirements of relevant standards;
• Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
Application:
Multi-purpose Outdoor,
For connection between distribution box and RRH,
Deployment in remote radio head cell tower applications.
NSN boot 90degree duplex LC fiber optic jumper
4 Types of Cable Structure For Option:
A type:
B type:
C type:
D type:
Cable parameter:
| Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Tensile N | Crush N/100mm |
Min. Bend Radius mm |
Range of Temperature
|
|||
| Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
| 2~4 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -30-+70 |
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
Optical fiber characteristic:
|
Item |
Unit |
Specification |
|
Attenuation |
dB/km |
1310nm≤0.4 1550nm≤0.3 |
|
Dispersion |
Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
|
Zero dispersion wavelength |
Nm |
1300~1324 |
|
Zero dispersion slope |
Ps/nm.km |
≤0.095 |
|
Fiber cutoff wavelength |
Nm |
≤1260 |
|
Mode field diameter |
Um |
9.2±0.5 |
|
Mode field concentricity |
Um |
<=0.8 |
|
Cladding diameter |
um |
125±1.0 |
|
Cladding non-circularity |
% |
≤1.0 |
|
Coating/cladding concentricity error |
Um |
≤12.5 |
|
Coating diameter |
um |
245±10 |
|
bending, dependence induced attenuation |
1550nm, 1turns,32mm diameter 100rums,60mm diameter |
≤0.5 db |
|
Proof test |
kpsi |
≥100 |
