Product Details:
Payment & Shipping Terms:
|
Material: | UPC(blue) And APC(green) Version | Inner Core: | Ceramic Sleeve |
---|---|---|---|
Durability: | <= 0.20 DB | Temperature: | -40°C To 80°C |
Fiber Type: | Simplex | Fiber Mode: | Singlemode |
Highlight: | fiber optic connector adapters,fiber optic cable adapter |

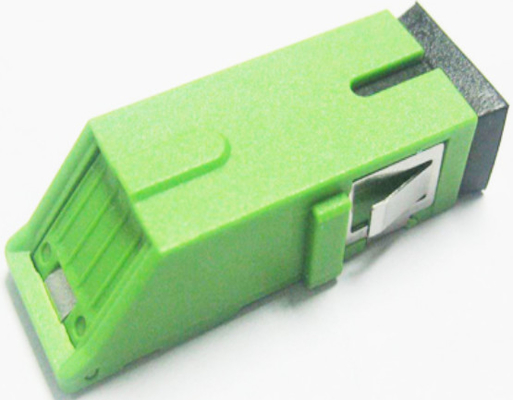

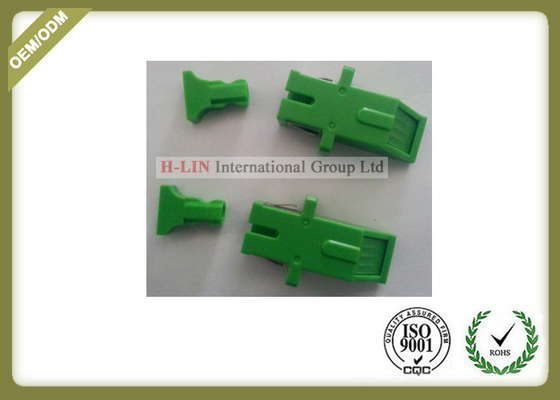

SC APC UPC Fiber optical green adapter with shutter Flange type with Bronze sleeve
SC APC/UPC shuttered adapter (simplex)
Detailed Description:
The SC SX adapter with integrated swing shutter is designed for FTTH applications. It can be used with the euroclust FTTH wall outlet as its integrated swing shutter ensures a maximum eye protection from the laser beam. The adapter can also be used in harsh environments because the shutter provides excellent dust protection.
Features:
- UPC(blue) and APC(green) version
available
- Flange version as well as flangeless
version available
- Maximum dust & eye protection
- Shutter opens and closes automatically
Specification:
Color Blue (UPC Version), Green (APC Version)
Insertion loss (I.L.) < 0.3dB
Durability (500 Mating)
UPC Version: ≤ 0.06 (IL) ≤ 1.1 (RL) APC Version: ≤ 0.02 (IL) ≤ 0.6 (RL)
Withdrawal Force (g/f) UPC Version: 0.47kg - 1.09kg (shutter side) UPC Version: 0.55kg - 1.05kg (regular side)
APC Version: 0.42kg - 1.07kg (shutter side) APC Version: 0.52kg - 0.84kg (regular side)
Flammability: UL94 V-0 Grade
Operating Temperature -40°C to +85°C
Weight 4 grams (net)/ 5.68 grams (gross.)
Standards JIS C5973, IEC 60874-14, Telcordia GR-326, RoHS compliant
Application:
1. CATV
2. Telecommunication Networks
3. Test equipment
4. Active device
5. Fiber to the home.
Various SC Duplex Adapter
Production:
Packing:
Application:
Fiber optic adapters are used in Telecommunication,FTTX+LAN,FTTH, Video Transmission,Optical
Fiber Sensor,Testing equipment,CATV.
