Detection Distance: | 5km/10km/20/km/30km | Color: | Black |
---|---|---|---|
Connector: | 2.5mm Universal Connector | Output Power: | 1MW,3MW,5MW,10MW,15MW |
Dimension: | 13.5mmX170mm | Weight: | 88 G |
Highlight: | fiber optic cable tools,fiber optic cable testing tools |
Description:

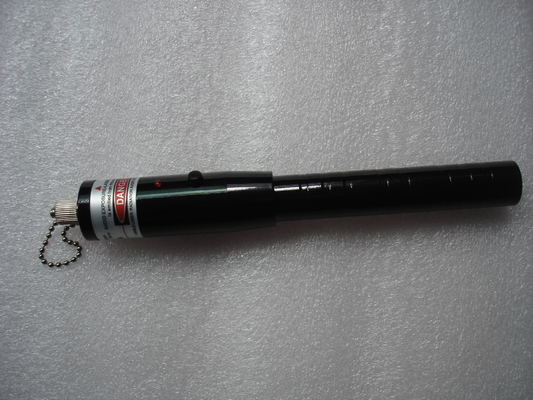

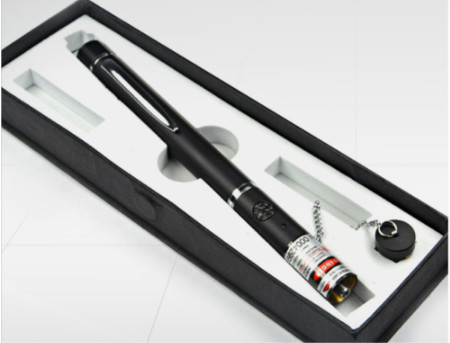

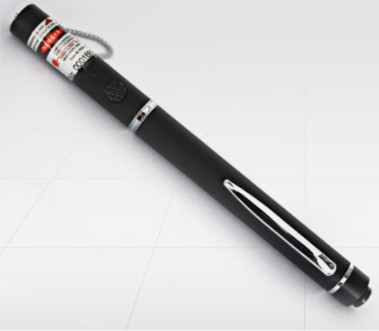

The Pen Type VFL is the easiest way to identify fibers from end
to end and locate polished connector end faces. Its red laser
shines through most yellow-jacketed fibers to help you pinpoint
breaks, bends, faulty connectors, splices and other causes of
signal loss. It has a reach of up to 20 km*.
Key Features:
(a) Visual Fault Locator is used for locating broken point in fibers.
(b) Visual Fault Locator is equipped with a 650-nm visible laser diode, can be operated in continuous or pulse modes for the clear noticeable results
(c) One green LED indicator shows the operating mode .
(d) Power switch on the end for battery on/off .
(e) Push button operate CW / Mod. (2.5 Hz frequency) / pause .
(f) Clip pocket-size pen design.
(g) Protective cap for extra protection .
(h) Low Battery Indicator: the Status LED will turn to red when batteries power are low.
Specifications:
(1) Central Wavelength : 650 +/- 10 nm
(2) Output Power: >0.5mW into Single-modefiber
(3) Spectral Width: < 10 nm
(4) Transmission: CW or 2.5 Hz pulse
(5) Batteries: 2xAAA Alkaline batteries
(6) Operating Temp.: 0¡æ~ 50 ¡æ
(7) Detecion Distance: < 6 Km
(8) Dimension/Weigth: 13.5mmX170mm / 88 g
(9) Light Source: Class 3A laser diode
* Option 1: Adapter Type (AC Adapter,DC 3V)
* Option 2: 1.25 Ferrule (VFL-125)
* Option 3: Output > 10 mw (VFL-1000)
