Outdoor optical fiber cable GYTS with light armored PE jacket black color
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Fiber Cable Type:: | Optical Fiber Cable GYTS | Fiber Number:: | 1-288 Fibers |
|---|---|---|---|
| Fiber Type: | G652D/G655/G657/OM1/OM2.. | Fiber Jacket: | Black Color |
| Fiber Jacket Material: | PE | Fiber Diameter: | 11.2mm |
| Armour Material: | Corrugated Steel Tape | Operating Temperature: | --40°C~+70°C |
| High Light: | waterproof fiber optic cable,outdoor rated fiber optic cable |
||
Outdoor optical fiber cable GYTS with light armored PE jacket black color
Description:

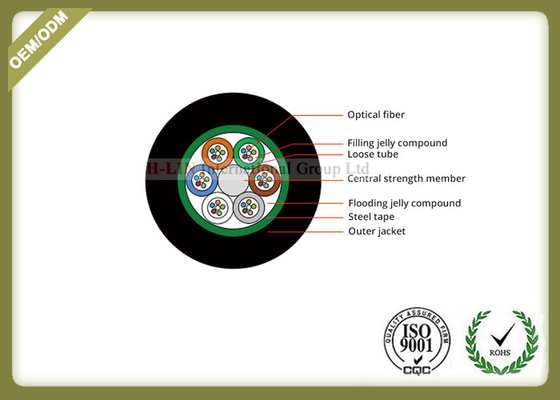

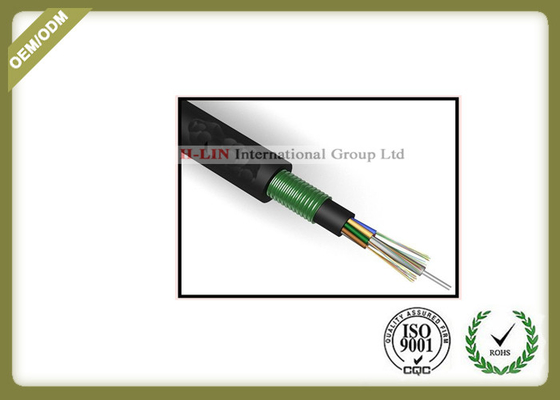

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.
Specifications:
Special tube filling compoud ensure a critical protection of fiber
Special design compact structure is good at preventing loose tubes from shrinking
Steel wire used as the central strength member
PSP enhancing moisture-proof
Our High quality PE sheath
High Strength,
Resistance to aging,
easy peel,l
ong working life,
good bending performance
Our Corrugated Steel tape Increased mechanical strength and improve the anti erosion capacity
Technical Parameters:
|
Item
|
|
Parameters
|
|
Loose tube
|
Material
|
PBT
|
|
|
Color
|
All colors display
|
|
Filler
|
Material
|
PE
|
|
|
Color
|
Black
|
|
CSM
|
Material
|
Phosphating steel wire
|
|
Armoured
|
Material
|
Plastic coated steel strip
|
|
Outer jacket
|
Material
|
MDPE
|
|
|
Color
|
Black
|
|
Min. bending radius
|
Static
|
10 times cable diameter
|
|
|
Dynamic
|
20 times cable diameter
|
|
Repeating bending
|
Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
|
|
|
Tensile performance
|
Short term
|
1500N
|
|
Crush
|
Short term
|
1000N/100mm
|
