Product Details:
Payment & Shipping Terms:
|
Core Number: | 1 | Sheath: | LSZH |
---|---|---|---|
Mode: | Single Mode | Fiber: | G657A |
Steel Messenger: | FRP | Certification: | CE/ISO/ROHS |
Diameter: | 3.0*2.0mm | Application: | FTTH , Access Network |
High Light: | ftth aerial drop cable,fiber drop cable |

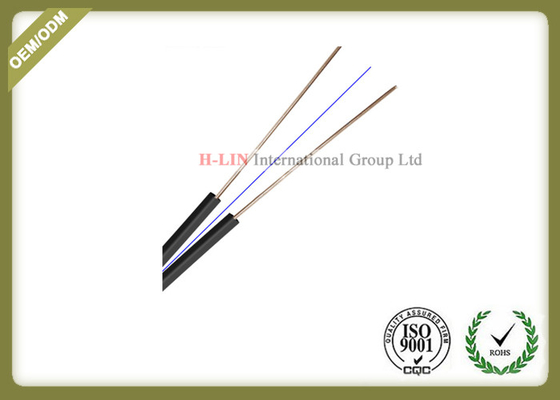

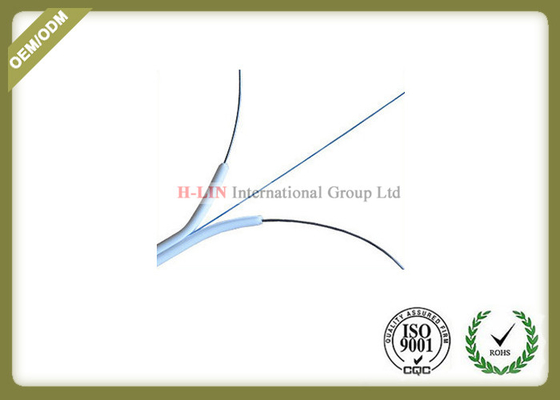

1core FRP FTTH Indoor Fiber Optic Drop Cable GJXH with Black or White jacket color
Description
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.then the cable is completed with white LSZH sheath
Technical Parameters:
Cable Code | Cable Count | Cable Size (mm) |
Cable Weight (kg/km) |
Tensile (N) |
Crush (N/100mm) |
Crush resistance (mm) |
Range of temperature ( ° C |
|||
Long Turn | Short Turn | Long Turn | Short Turn | Dynamic | Static | |||||
GJXV-01 | 1 | 3.0*4.0 | 15 | 40 | 80 | 500 | 1000 | 30D | 15D | -20-60 |
GJXV-02 | 2 | 3.0*4.0 | 17 | 40 | 80 | 500 | 1000 | 30D | 15D | |
GJXV-04 | 4 | 4.1*6.1 | 20 | 40 | 80 | 500 | 1000 | 30D | 15D |
specification
|
|
Cable Diameter
|
2.0mm
|
Insertion Loss
|
≤0.3dB
|
Strength Member Material
|
FRP
|
Fiber Type
|
Singlemode G652D
|
Return Loss
|
≥30dB
|
Tensile Strength (long/short term)
|
300/600N
|
Jacket Material
|
Low Smoke Zero Halogen
|
Cable Type
|
FTTH Indoor Patch Cable
|
Installation Temperature
|
-10 to +60°C
|
Operation Temperature
|
-10 to +60°C
|
Product Description
FTTH (Fiber to The Home) is a kind of transmission cable used to connect directly to a home user or a business user. With no limits to its bandwidth, wavelength and transmission technology and being suitable for the application of various new services, FTTH cable is the best solution for the connection between the internet backbone to the user’s desktop.
Product Features:
Top Quality Fiber,Flexible,Fast transmission,Stable,
New LSZH material ,Smooth,Environmental,Fire-Retardant,
Phosphated Steel Wires,Anti-corrosion,Anti-rust,Long life
Application:
1.Optical Distribution Frame
2.Computer Networks
3.Fiber Optic Communication Systems
4.Optical Access Networks
5.Local Area Network
6.Fiber Optic Sensors
7.Fiber Optic Data Communications
8.Fiber Optic Cable Television
9.Fiber Optic Test Equipment
10.Access wiring
11.Connecting Between Backbone Optical Cable and RX
