Material: | Metal Body | Focus Mode: | Auto Focus |
---|---|---|---|
Screen: | 5.1 Inch TFT Color Display | Typical Splicing Time: | 8S |
Typical Heating Time: | 18S | High-capacity: | 7800mAh |
High Light: | fiber optic cable tools,fiber optic splicing tools |
Description:

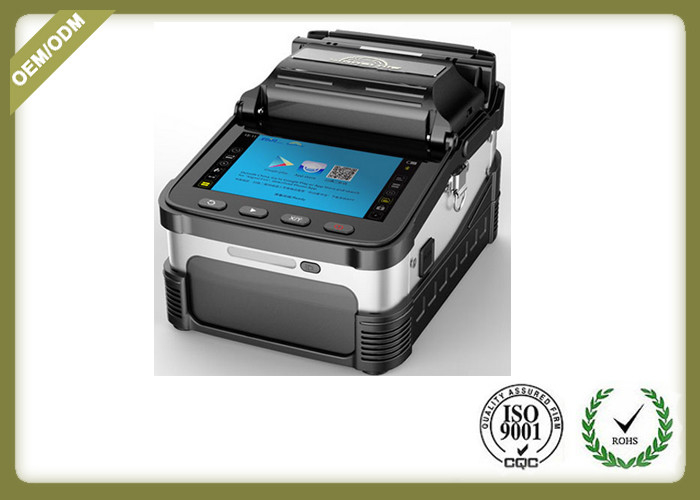

HL-FS7 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with 100 km trunk construction, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 8 seconds speed core alignment splicing, 18 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines.

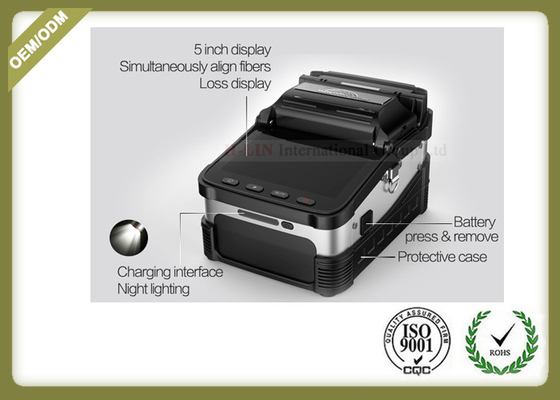

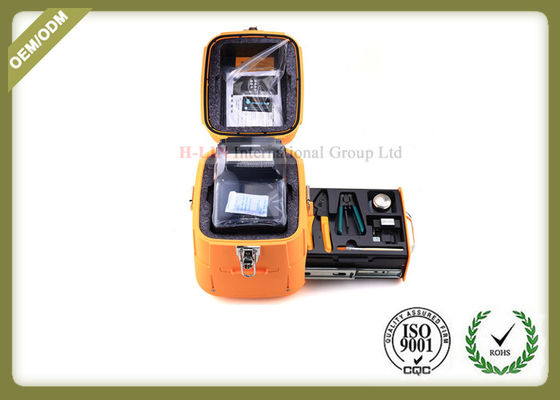

Large capacity lithium battery, fully charged state can splice & heat 240 fibers, also the splicer machine can charge the phone, to solve your trouble when your phone has no power at outdoor working. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.
Specification:
Applicable Fibers | SM(G.652&G.657),MM(G.651),DS(G.657),NZDS(G.655) |
Splice Loss | 0.025dB(SM),0.01dB(MM)0.04dB(DS/NZDS) |
Focus mode | Auto focus |
Fiber alignment | Core/cladding alignment Manual alignment |
Typical splicing time | 8S |
Typical heating time | 18 S |
Fast heating function, heating time can be set | |
Control technology | Real-time control and calibration of fusion ARC |
Return loss | Better than 60DB |
Fiber diameter | Cladding Diameter 80-150μm,Coating Diameter 100-1000μm |
Fiber Cleave Length | Coating less than 250µm:8-16mmCoating less m250-1000μm:16mm |
Heat shrinkable tube | 60mm,40mm |
Tension Test | Standard 2N |
Fiber holders | Multi function holders,Applicable for SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable |
Magnification | 300 for X or Y view, 150 for X or Y view |
Screen | 5.1 inch TFT color display |
Software upgrade | Mobile APP update,Turn on Bluetooth sync to the machine |
Splicing Mode | Normal / high precision splicing |
Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
Built-in battery | 7800 mA high-capacity lithium battery, charging time ≥ 3.5 hours, continuous splicing and heating about 200 times |
Power supply | Input AC100-240V 50 / 60HZ, output DC13.5V / 4A, the current power mode can be identified, real-time detection of battery power |
Operating Conditions | Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation),Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s |
Built-in lighting | easy for night operation |
