Cat6 UTP Outdoor Network Patch Cord Cable Custom Length With RJ45 Plug Copper Conductor
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Number Of Conductors: | 4 Pairs | Conductor Material: | BC / CCA / CCS / CU |
|---|---|---|---|
| Insulation Material: | HDPE, PE | Jacket Material: | Inner Jacket:PVC,Outer Jacket:PE |
| AWG: | AWG24 | Color: | Black Or Customized |
| Length: | 1m/2m/3m/5m Or Customized | Operating Temperature: | -40°C + 75°C |
| High Light: | fiber patch cord,internet patch cable |
||
RJ45 Plug Copper Conductor Cat6 UTP Outdoor Network Patch Cord Cable with customized length
Outdoor Network Patch Cord Cable
Description:
The Cat6 Network Patch Cables are intended for wired home and office networks. They offer universal connectivity to computers and network components, such as routers, switch boxes, network printers, network attached storage (NAS) devices, VoIP phones, and PoE devices.
Built for Future-Proof Speed and Reliable Connectivity
High performance Cat6 ethernet patch cables are designed with extremely well-matched components for outstanding uniform impedance and very low return loss, providing lower crosstalk, and a higher signal-to-noise ratio. They support frequencies of up to 550 MHz and are suitable for high-speed 10GBASE-T internet connection for LAN network applications such as PCs, servers, printers, routers, switch boxes, and more, while remaining fully backward compatible with your existing network.
Outdoor network patch cable connect two buildings together in a campus or connect an outdoor CCD security camera to your home security system.
| Conductor | OFC/BC/CU/Solid bare Copper/CCA/CCS |
| AWG | 23/24/25/26/27/28 |
| Conductor Diameter(mm) | 0.5-0.58mm |
| Insulation/Dia | PE/HDPE/0.91-1.0mm |
| Insulation average thickness | 0.2 |
| Shield | utp/ftp/sftp |
| Braiding | 64*0.12mm/96*0.12mm/112*0.12mm/128*0.12mm CCA or CCAG wire |
| Jacket | PVC/PE/LSZH PVC |
| OD | 5.4-6.8mm |
| Length | 0.5m/1m/2m/5m/customized |
| Connector | RJ45 8p8c |
| Twisting lay length(mm) | 30 undemeath |
| Cabling lay length(mm) | 200 undemeath |

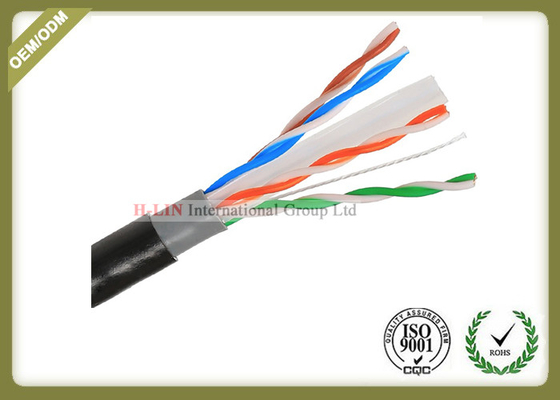

| Twisted Pair Colors | Orange-white/orange |
| Brown-white/brown | |
| Green-white/green | |
| Blue-white/blue |
Key Features:
• High Quality CAT6 U/UTP Unshielded Patch Cord Network Cable
• Meet TIA/EIA -568-C.2 and ISO/IEC 11801 Specification
• Provide outstanding transmission performance and low signal losses
• Tested to 500 MHz and support 1000 Base-T Gigabit Ethernet
• A wired Cat6 patch cable is more reliable and secure than a wireless network for your internet connections
