Cable Structure: | Uni-Tube Cable | Fiber Count: | 2-12 |
---|---|---|---|
Fiber Type: | Singlemode | Strength Member: | Two Parallel Steel Wire |
Loose Tube Materialaterial: | PBT | Outer Jacket Material: | MDPE |
Tensile Performance: | 1500N | Operating Temperature: | -40℃ To +60℃ |
Highlight: | waterproof fiber optic cable,outdoor armored fiber optic cable |
GYXTW 2-12 core fiber optic cable
Product Description:

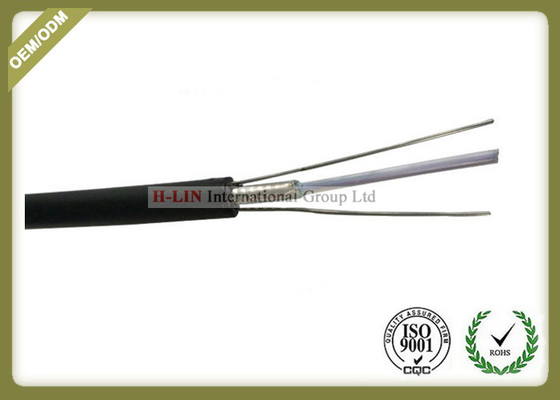

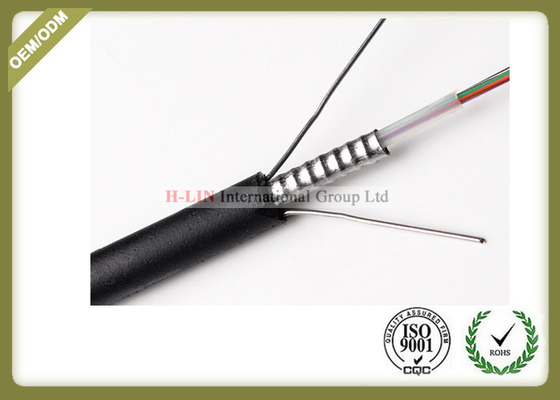

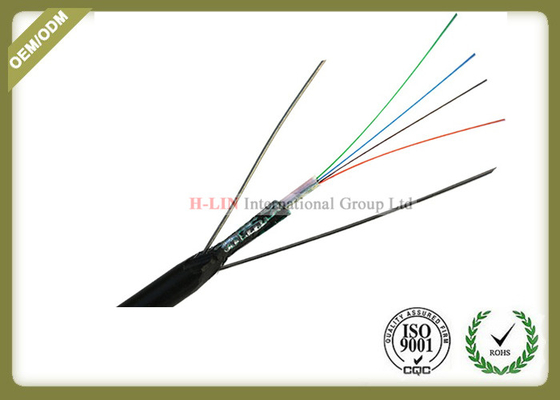

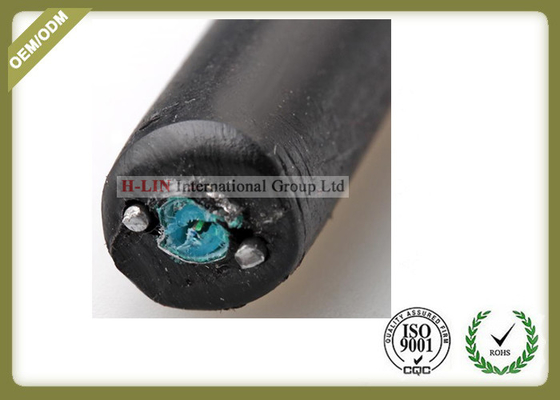

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
The tube is wrapped with a layer of PSP longitudinally,excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape,to ensure tensile strength.
The central loose tube optical fiber cable GYXTW is suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network.
Optical Characteristics:
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
@1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23 dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
Technical Parameters:
Optical cable model | Fiber number | Cable Diameter mm |
cable weight kg/km |
Maximum Tension(N) | Maximum Crush Resistance(N/per100cm) | Minimum Bending Radius |
GYXTW-2~12 | 2~12 | 8.2 | 75 | 600/1500 | 1000/3000 | 10D/20D |
Characteristics:
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
and flexibility
PSP enhancing moisture-proof
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length
Water proofing layer providing strong water-resistance performance
Steel tape with PE outer sheath and metallic strengthen member enhancing anti-cursh and tensile property of cable
Applicable fields:
Long distance communication and LAN
(recommended laying methods)
Aerial
