2 Core FTTH Fiber Optic Cable With FRP / Steel Wire Strength Member Outdoor
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Core Number: | 2 | Jacket Material: | PVC/ LSZH/Customized |
|---|---|---|---|
| Mode Type: | Single Mode/multimode | Fiber: | G652B,G652D Or G657A |
| Strength Member: | FRP/KFRP | Self-Supporting Member Material: | Steel Wire |
| Temperature: | -40℃~+70℃ | Color: | Black/white/accoring To Requirement |
| High Light: | ftth aerial drop cable,fiber drop cable |
||
Outdoor FTTH Singlemode aerial drop cable with FRP Strength Member or Steel wire Member(2core FTTH)
Product Description

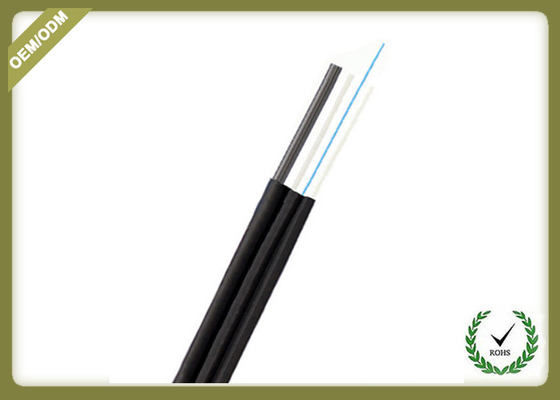

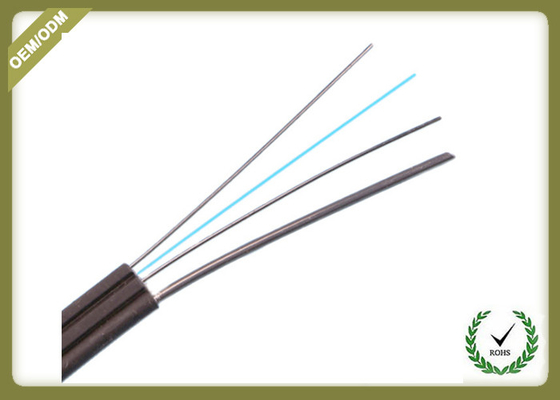

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.
A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
- Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
- Single steel wire or massagers as the additional strength member ensures good performance of tensile strength;
- Simple structure, light weight and high practicability;
- Novel flute design, easily strip and splice, simplify the installation and maintenance;
- Low smoke, zero halogen and flame retardant sheath.
Technical Parameters:
| Cable Count | Minimum allowable Tensile Strength(N) | Minimum allowable crush Load(N/100mm) | Minimum Bending Radius(mm) | Storage temperature(℃) | |||
| short term | long term | short term | long term | short term | long term | ||
| 2 | 600 | 200 | 1000 | 300 | 20D | 10D | 40-70 |
| Optical Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber | ||
| G.652D | B2:Zero dispersion shifted | |||
| G.655 | B1.2:Cut-off wavelength shifted | |||
| G.657(A1,A2,B3) | B4:Main technical data for positive dipersion shifted single-mode fiber | |||
Application
- Used in access network or as access cable from outdoor to indoor in customer premises .
- Used as access building cable in premises distribution system.
- Especially used in indoor or outdoor aerial access cabling.
Product Feature
Top quality fiber, flexible, fast transmission, stable
New LSZH Material,Smooth, Environmental, Fire-Retardant
Phosphated Steel Wires, Anti-corrosion, Anti-rust, Long life
Phosphating steel wire, surface phosphating treatment, rust resistance, corrosion resistance, high tensile strength. It has excellent waterproof properties. Some manufacturers use only about 700MPA of copper coated iron. Far below national standards
