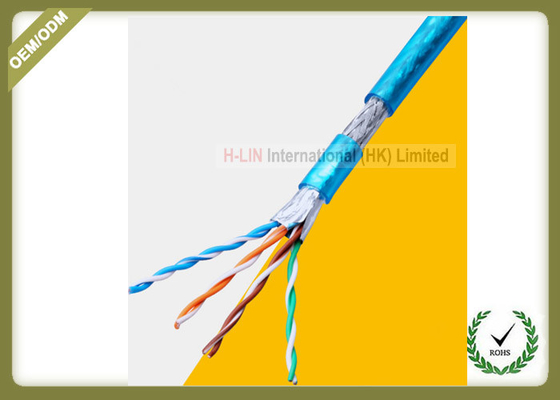

8 Cores Cat5e Network Cable SFTP Shield For 1000 Base - T Gigabit Ethernet

Shielded 24AWG Cat5e SFTP Network Fiber Cable With Pure Copper High Frequency 250MHz

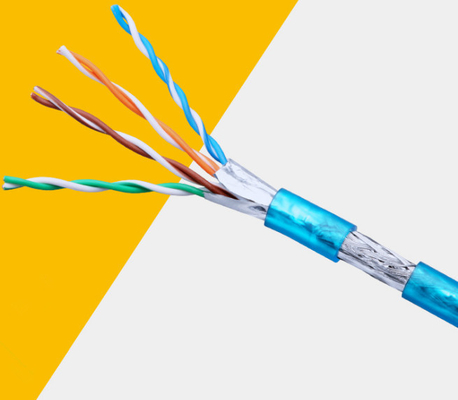

Product structure: Conductor: solid oxygen free copper, with a diameter of 0.51 + 0.01mm. Insulation: brand new HDPE, 0.91 + 0.05mm. Shielding layer: double shielding (aluminum foil + transparent film + woven net). Leather sheath: new PVC PVC or low smoke halogen free fuel LSZH. Line pair chromatography: White / Blue / Blue / White / orange / orange / White / Green / Green / White / Brown / Brown. Line logarithm: 8 cores, 4 pairs of twisted pair lines. Technical parameter resistance: (f=1-100MHZ) 100 + 15%. Delay deviation: (max) 40100m. Rated transfer rate (NVP): 72%. Tensile strength: (max) 400N. Temperature range: -20 C ~+75 C. The implementation of standard is TIA/EIA-568, YD/T1019-2001. Indoor wiring is suitable for military, hospital, banking and financial systems with special performance requirements. Double shielding protection is adopted to enhance the anti-jamming ability of the whole channel and ensure the correct transmission of data information under high-intensity electromagnetic interference. Transmit the highest rate of 100MHz signal. High transmission rate network applications.

Description:

It is used of 1rip cord and 4pairs twisted

Pair1: Orange/White Orange

Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown

for pure copper conductor,it is 0.51mm(24AWG),It is generally applicated in 100Mb/s Fast ethernet,to achieve the connection for desk switch with computer.

PRODUCT DESCRIPTION

Rated Temperature:60℃,75℃

Reference Standard:TIA/EIA-568B

Bare Solid or Stranded Copper Conductor

Colour-coded PE Insulation

Shield: Al/Mylar and braid

PVC or LSZH jacket

Flammability grade :CMX/CM/CM Optional

UTP/FTP/STP/SFTP Optional

APPLICATIONS & FEATURE

100 Base-T4

100 Base-TX

1000 Base-T (Gigabit Ethernet)

155 Mbps ATM

622 Mbps ATM

ELECTRICAL SPECIFICATIONS

Application scope: broadband Ethernet, intelligent building, security monitoring, voice communication, video camera.

Goods Advantage:

99.99% five copper oxide conductor has low resistivity and good flexibility.

Braided wire, aluminum magnesium wire + aluminum foil can block external interference and strengthen the normal operation of the network.

Transparent and dark blue PVC sheathed material has the properties of wear resistance and aging resistance.
