Product Details:
Payment & Shipping Terms:
|
Name: | 10g-T Sfp | Data Rate: | 10G |
---|---|---|---|

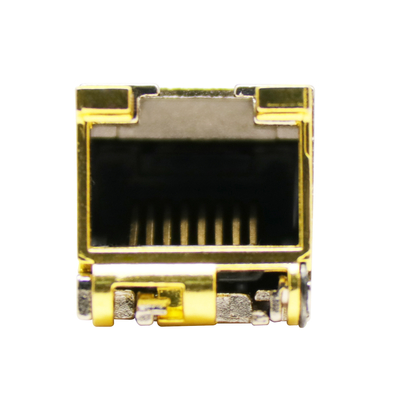

Connector Type: | RJ45 Port | Cabling Type: | Cat5 |
Temperature: | 0 ~ 70°C (32 ~ 158°F) | DDM/DOM): | Optional |
High Light: | sfp transceiver module,fiber optic sfp module |

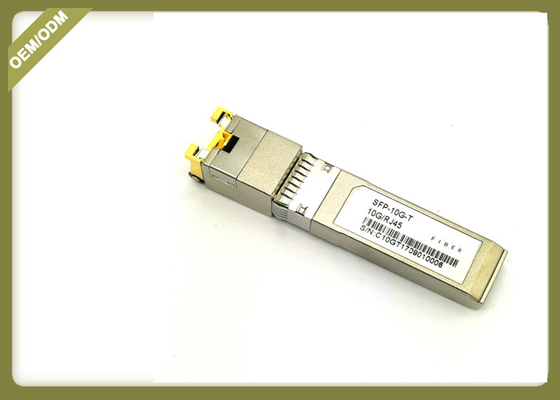

SFP+ 10GBASE-T Transceiver Copper RJ45 Module 10g copper sfp
Support | 10Gbase-T / 5Gbase-T / 2.5Gbase-T |
Compact | Compactnnector assembly |
RoHS | compliant and lead-free |
Supply | 3.3V |
Ambient Operating temperature | 0°C to +60°C |
2.PRODUCT DESCRIPTION
SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP's RX_LOS pin for link indication. If pull up SFP's TX_DISABLE pin, PHY IC be reset.
3. Cable Length
Standard | Cable | Reach | Host Port |
10gbase-T | CAT6A | 30m | xfi |
5Gbase-T/2.5Gbase -t | CAT5E | 50m | 5Gbase - R/2.5GBase-X |
1000base-T | CAT5E | 100m | 1000base-FX |
Feature:
Picture:
