Outdoor Fiber Optic ADSS Cable 24core SM with long span distance 200meter -1500Meter

Certification
Good quality Network Fiber Cable for sales
Good quality Network Fiber Cable for sales
We are very satisfied with H-LIN,they can provide fiber materials which all meets our requirements.They are doing a good job.

—— Steve Toner

H-LIN is professional,responsible,efficient in our business cooperation.We are very glad to work with those excellent ladies, looking forward to the long partnership with them.

—— Sarah Grant

10years nice cooperation by reasonable price,stable quality and patient attitude to deal with all related work,we are not only partners but also friends with H-LIN Team.

—— Arabnia

I'm Online Chat Now

Outdoor Fiber Optic ADSS Cable 24core SM with long span distance 200meter -1500Meter

China Outdoor Fiber Optic ADSS Cable 24core SM with long span distance 200meter -1500Meter supplier
Outdoor Fiber Optic ADSS Cable 24core SM with long span distance 200meter -1500Meter supplier Outdoor Fiber Optic ADSS Cable 24core SM with long span distance 200meter -1500Meter supplier Outdoor Fiber Optic ADSS Cable 24core SM with long span distance 200meter -1500Meter supplier

Large Image :  Outdoor Fiber Optic ADSS Cable 24core SM with long span distance 200meter -1500Meter

Product Details:

Place of Origin: China
Brand Name: H-Lin
Certification: CE,Rohs
Model Number: HLIN-ADSS

Payment & Shipping Terms:

Minimum Order Quantity: 1km
Price: negotiable
Packaging Details: 1km/wooden drum,2km or 3km/wooden drum ,as client's request
Delivery Time: 10days after get payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50000 Meter/Meters per Day
Detailed Product Description
Type: ADSS Central Strength Member: FRP
Jacket: PE Outer Diameter: 10.5~18.8+_0.5mm
Fiber Count: 2~144core Temperature Range: -40degree +70 Degeree
Laying Method: Self-support Life Span: 30 Years
Large Span: Largest Span Is Over 1000m

All Dielectric Self-supporting Aerial Fiber Cable ADSS 2~288core with FRP central strength member





Description:





ADSS fiber optic cable is also called all-dielectric self-supporting fiber optic cable. All-dielectric fiber optic cable is made of all-dielectric material. Self-supporting fiber optic cable means the fiber optic cable can bear self-weight and external load. Because it is self-supporting, so its mechanical strength plays a decisive role, the use of all-dielectric materials because the cable is in a high-voltage and high-voltage environment, must be able to withstand the impact of strong electricity. Since it is used overhead on the power tower, it is necessary to have matching hangers to fix the optical cable to the tower.



ADSS cable is loose tube stranded. Fibers,are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.



Characteristics.

A: The atenuation of fiber transmission is small,low dispersion to make sure fiber cable with excellent transmission performance.





B:Reasonable design, exact lengthiness controlling and cabling method,to make sure fiber cable with excellent mechnical performance and environment performance.



C:Adopt SZ stranded instructure,it is easy for branch,to make sure fiber cable will not be influenced by stress at the harsh environment.



D:PBT loose tube with good performance,and tube filled with thixotropy gel,it can protect fiber better.



E:Outside of strength member and inside of fiber are filled with water blocking gel,to make sure the whole cross section of fiber cable block water.



F:cable with light weight,thin outer diameter,to reduce the load by ice and wind and the load on towers
and backprops



G:Convenient operation and installment,it can use the owened tower,to save cost.



H:Can be installed without power off.H-Lin Group has the most advanced domestic ADSS aramid yarm stranding equipment, with the United States Dupont K49 series of high modulus aramid yarn, we can customized for clients at span range from 100 m -1800 m high quality ADSS cable.

Investing millions of dollars on national laboratory, we can provide the high and low temperature test from minus 70 degrees to 120 degrees, UV aging test, salt spray corrosion test, high tension, high torsion experiment, arc corrosion test, etc., to win customers praise with the excellent quality.





Important notice:

Many small factories are without aramid yarm stranding equipment, aramid yarn is directly into the machine with flat way, tension index of those ADSS cable serious unqualified.

With low modulus aramid yarn or inadequacy aramid yarn even the high strength yarn which is with just 1/15 cost of aramid yarn as the aramid yarn , the ADSS cable will break in a short time after installing.

In same cases, ADSS need arc-resistant sheathing materials, that is AT outer sheath. While some factories do not use it which cause the outer sheath corrosion,aging fast or cracked after a period of time.







Application:



The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.





Product perameter :





Model Number ADSS
Type Coaxial
Number of Conductors ≥ 10
Application Aerial fiber cable
Function Delivery signal light
Certification ADSS pass ISO9001,UL, TIL, CE
Sheath material PE or AT for adss fiber optic cable
Fiber type OS1/OS2,OM1,OM2,OM3,OM4
Length per roll 2km/3km/4km ADSS fiber
Marking printing
Fiber count 2core to 288 core
Strength member FRP

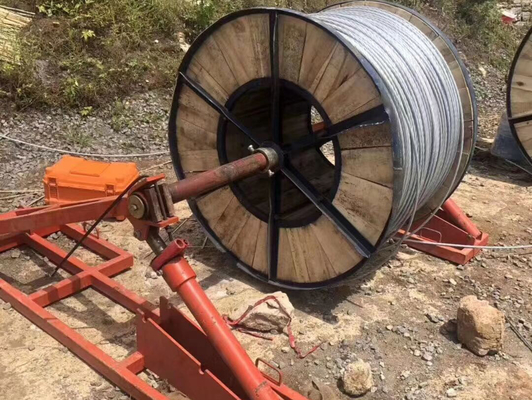

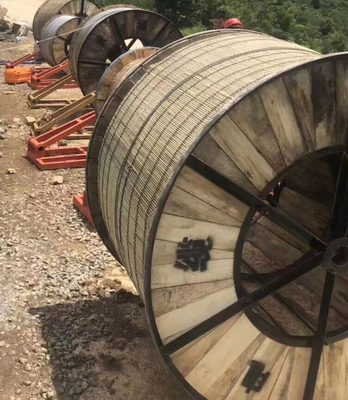

Operation on site:





Outdoor Fiber Optic ADSS Cable 24core SM with long span distance 200meter -1500Meter



Outdoor Fiber Optic ADSS Cable 24core SM with long span distance 200meter -1500Meter
