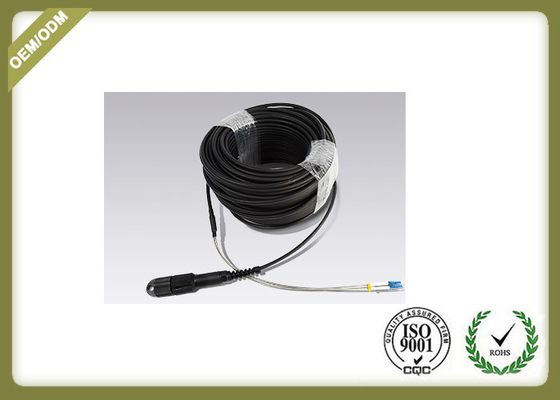

Fiber Optic Outdoor Patchcord with PDLC to LC connector with 2core 2.0mm outdoor fiber cable
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | PDLC-LC | Fiber Count: | 2 |
|---|---|---|---|
| Fiber Type: | SM Or MM | Outer Diameter: | 7.0mm |
| USE: | FTTx Solutions | Outer Material: | LSZH |

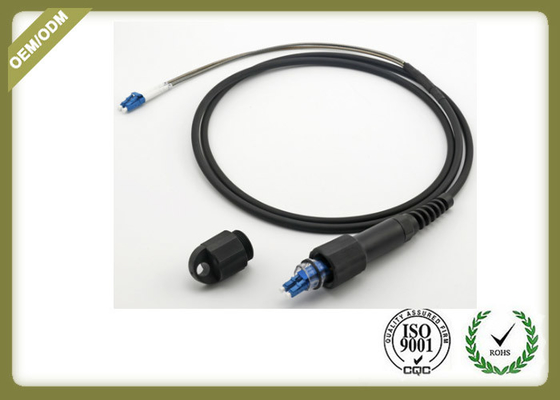

Fiber Optic Outdoor Patchcord with PDLC to LC connector with 2core 2.0mm outdoor fiber cable
PDLC fiber optic waterproof connector mainly used in the RRU terminal from/of HUAWEI&ZTE in the FTTA System, Main advantages of this connector are simplex structure, easy handling and low cost.
Features:
Standard DLC connector,well connected with standard LC adaptor,
The material in the jumer cable are all-weather and UV-resistant
IP67 water and dust protection
• Good mechanical and environmental characteristics;
• Flame retardant characteristics meet the requirements of relevant standards;
• The mechanical characteristics of jacket meet the requirements of relevant standards;
• Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
Application:
Multi-purpose Outdoor,
For connection between distribution box and RRH,
Deployment in remote radio head cell tower applications.
PDLC Outdoor Cable Assemblies
Cable Structure:
Cable Parameter:
| Fiber Count |
Cable Dimension mm |
Cable Weight kg/km |
Minumum allowable Tensile Strengh | Crush N/100mm |
Min. Bend Radius mm |
Storage Temperature
|
|||
| Long Term | Short Term | Long Term | Short Term | Short Term | Long Term | ||||
| 2 | 7.0 | 68 | 1000 | 600 | 3000 | 2000 | 20D | 10D | -20-+70 |
|
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
Optical fiber characteristic:
|
Item |
Unit |
Specification |
|
Attenuation |
dB/km |
1310nm≤0.4 1550nm≤0.3 |
|
Dispersion |
Ps/nm.km |
1285~1330nm≤3.5 1550nm≤18.0 |
|
Zero dispersion wavelength |
Nm |
1300~1324 |
|
Zero dispersion slope |
Ps/nm.km |
≤0.095 |
|
Fiber cutoff wavelength |
Nm |
≤1260 |
|
Mode field diameter |
Um |
9.2±0.5 |
|
Mode field concentricity |
Um |
<=0.8 |
|
Cladding diameter |
um |
125±1.0 |
|
Cladding non-circularity |
% |
≤1.0 |
|
Coating/cladding concentricity error |
Um |
≤12.5 |
|
Coating diameter |
um |
245±10 |
|
bending, dependence induced attenuation |
1550nm, 1turns,32mm diameter 100rums,60mm diameter |
≤0.5 db |
|
Proof test |
kpsi |
≥100 |
