White color 8core wall mountable fiber access terminal box for SC or LC fiber port

China White color 8core wall mountable fiber access terminal box for SC or LC fiber port supplier
White color 8core wall mountable fiber access terminal box for SC or LC fiber port supplier White color 8core wall mountable fiber access terminal box for SC or LC fiber port supplier White color 8core wall mountable fiber access terminal box for SC or LC fiber port supplier

Large Image :  White color 8core wall mountable fiber access terminal box for SC or LC fiber port

Product Details:

Place of Origin: Shenzhen China
Brand Name: H-LIN
Certification: CE ISO9001
Model Number: HL-FAT-8T

Payment & Shipping Terms:

Minimum Order Quantity: 50Pieces
Price: negotiable
Packaging Details: 1pc/box 20pcs/Carton
Delivery Time: 1week after get payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000Pieces per Day
Contact Now
Detailed Product Description
Application: FTTH System Dimension(mm): 24X13X6 Cm
Material: PC+ABS Plastic Capacity: 8cores
IP Grade: IP65 Installtion: Wall Mounted
Weight: 0.6kg Connector: SC Or LC

8 Ports Fiber Access Terminal





Introduction:

fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.





Product Features:



Integrated with splice cassette and cable management rods.

Manage fibers in a reasonable fiber radius condition.

Easy to maintain and extend the capacity.
Suitable for the fusion splice or mechanical splice.Fiber bend radius control more than 40mm.

1*8 Splitter can be installed as an option.

Efficient cable management.

8 ports cable entrance for drop cable.



Specification:







ITEM

PARAMETER

Suitable fiber type

3.0*2.0 flat cable

Capacity

8SC/ 16LC/ 1 1*8 PLC

Material

PC+ABS

Size (A*B*C)

235*125*50mm

Weight

0.6kg

Connecting Adapter

SC simplex or LC duplex

Operating temperature

-40~+85C

Color

White









































Package:



Carton size:51*29*33CM

Qty:20pcs/carton

Weight:11.00KG/carton

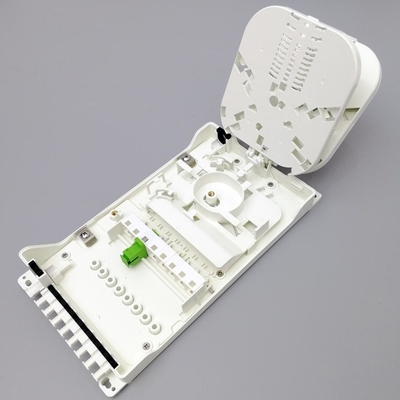

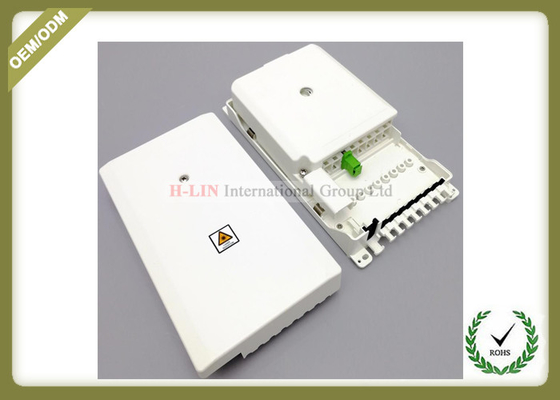

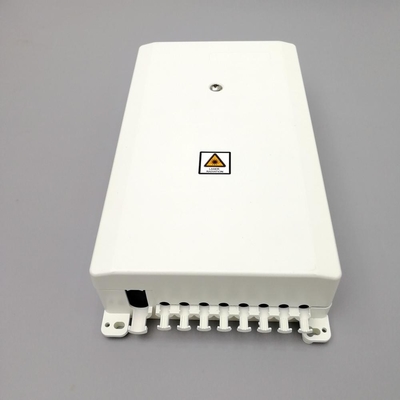

Picture:



White color 8core wall mountable fiber access terminal box for SC or LC fiber port
