NEW LC SC FC ST Fiber Optic Patch Cord for 90 degree tail bend connector
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Jacket Colour: | Yellow Or Customized | Jacket: | PVC/LSZH |
|---|---|---|---|
| Fiber Type: | Duplex | Mode: | Single Mode |
| Connectors: | ST FC LC SC 90degree | Length: | 1m/3m/5m/Customized Length |

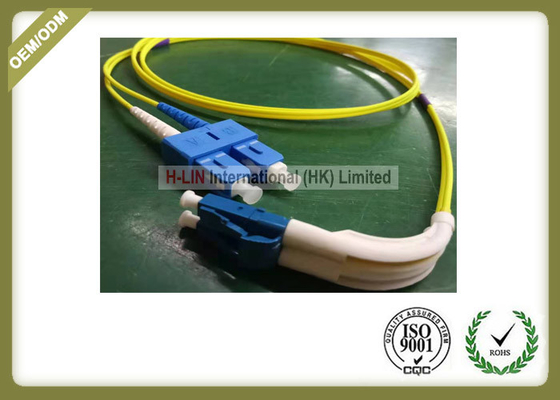

SC/UPC-LC/UPC-SM-9/125-DX-PVC Jacket PatchCord with 90degree tail bend connector
Description
The optical fiber pach cord is used to do the jumper connection from the device to the optical fiber wiring link. There is a thick layer of protection, usually used between the optical terminal and the terminal box, and is used in some fields, such as optical fiber communication system, optical fiber access network, fiber data transmission and local area network.
Features
(1) Ceramic Ferrule;
(2) High return loss;
(3) Low insertion loss;
(4) Good repeatability and and exchangeability;
(5) Excellent Polished and 100% tested;
(6) Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.
Applications
Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV
Performance Index
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652D/G655/G657A1/G657A2/G657B | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (℃) |
-40~+80 |
||||
Detailed Images
- High-performance single-mode optical fiber,fast and stable data transmission.
- Advanced grinding technology, Low insertion loss (＜0.3db).
- High-quality orginal parts,bear high temperature, environmental protection, strong.
- New environmentally PVC or LSZH jacket, low-carbon non-toxic, strong tensile properties.
