High quality 100% pure copper Cat5e 24awg UTP Cable for network use
PRODUCT DESCRIPTION
Rated Temperature:60℃,75℃
Reference Standard:TIA/EIA-568B
Bare Solid or Stranded Copper Conductor
Colour-coded PE Insulation
Shield: Al/Mylar and braid
PVC or LSZH jacket
Flammability grade :CMX/CM/CM Optional
UTP/FTP/STP/SFTP Optional
APPLICATIONS & FEATURE
100 Base-T4
100 Base-TX
1000 Base-T (Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM
Description:
Generic cabling products are used for modular and flexible transmission of information between buildings or groups of buildings. It can realize the connection of voice, data, exchange and all kinds of control equipments and communication network system. It includes network, telephone, monitoring, power supply and lighting system, etc.
On the market there are a lot of the cable, module inferior copper or alloy production, plastic parts made by the mould is not accurate and waste plastics into such products, which lead to the construction side can not pass test after laying.
Cat5e UTP(Unshielded Twisted Pair) Cable is composed by multi pair twisted wire and a plastic jacket,it is an improvement on the current Cat5,like charactisc parameter,Near end interference,Attenuation reference and Return loss.But the Transmission Bandwidth is still 100MHz.
It is used of 1rip cord and 4pairs twisted
Pair1: Orange/White Orange
Pair2: Blue/ White Blue
Pair3: Green/ White Green
Pair4: Brown/White Brown
for pure copper conductor,it is 0.51mm(24AWG),It is generally applicated in 100Mb/s Fast ethernet,to achieve the connection for desk switch with computer.
ELECTRICAL SPECIFICATIONS
DC Resistance | <9.38Ω/100m |
DC Resistance Unbalance | 5% |
Mutual Capacitance | 5.6nF/100m |
Capacitance Unbalance | <330 pF/100m |
Characteristic Impedance (ohms) |
1-100MHz:100+/-15% |
NVP | 65% |
TCL | 30-10log(f/100|dB |
Delay Skew | ≤45ns |
Delay(ns) | ≤545 |
PHYSICAL PROPERTIES
CMP | CMR | |
Pulling Tension(max) | 110N(25 lbf) | 110N(25 lbf) |
Bend Radius(min) | 25mm(1 in.) | 25mm (1 in.) |
Installation Temperature | 0 to 60℃(+32 to 140°F) | 0 to 60℃(+32 to 140°F) |
Storage Temperature | -20 to 75℃(-4 to 167°F) | -20 to 75℃(-4 to 167°F) |
Operating Temperature | -20 to 60℃(-4 to 140°F) |
-20 to 60℃(-4 to 140°F) |

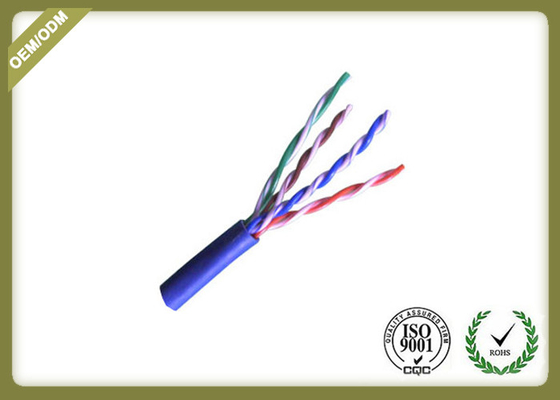

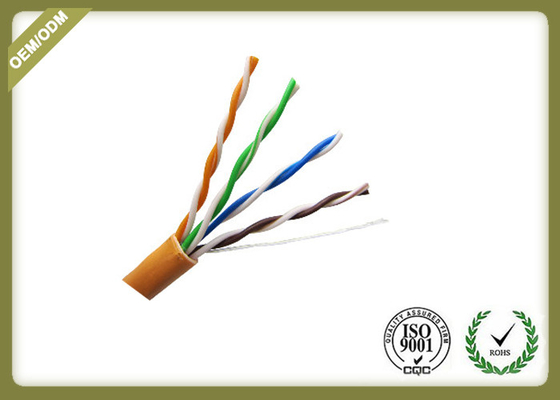

Pictures of CAT5E Cable With Various Color Jacket:
