Product Details:
Payment & Shipping Terms:
|
Number Of Conductors: | 8 | Conductor Material: | Solid Bare Copper |
---|---|---|---|
Insluation: | New PE | Color: | Request |
Conductor Size: | 23AWG(0.56MM) | Shield: | Shielded Twisted Pair (STP) |
Jacket: | New PVC | ||
High Light: | fiber network cable,fiber optic data cable |

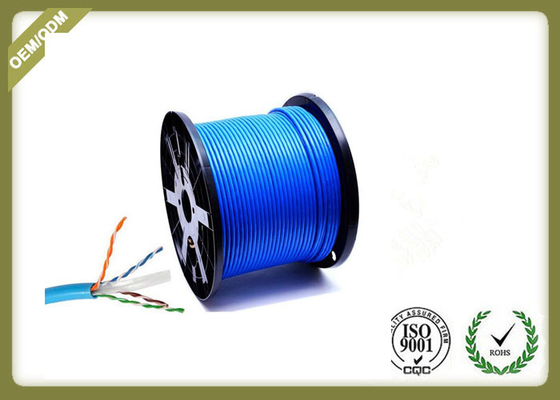

Cat6 STP 23AWG Pure Copper Network Lan Cable Pass Fluke Test Ethernet Cable
Description:
Generic cabling products are used for modular and flexible transmission of information between buildings or groups of buildings. It can realize the connection of voice, data, exchange and all kinds of control equipments and communication network system. It includes network, telephone, monitoring, power supply and lighting system, etc.
On the market there are a lot of the cable, module inferior copper or alloy production, plastic parts made by the mould is not accurate and waste plastics into such products, which lead to the construction side can not pass test after laying.
Cat6 Cable is a kind of network cable,which are often used for connection in Switch,router to computer.The transmission frequency is expend to 250MHz or higher.Compared cat5e,there is a difference in the appearance and structure,it does not only add the insulated cross,make the 4pairs wire into the groove of corss,and the diameter of cable is more thick.
Indoor wiring, digital communications horizontal twisted pair cables, used in building integrated wiring system in the work area of communication between the frame out wiring end and the transition between the user and the communication of residential cabling system leads to the wiring wiring between aircraft. The center cross PE frame is adopted to separate the 4 individual pairs of wires, and the electrical transmission performance is reliable and excellent, and the bandwidth and SNR margin are enhanced. For communication over 250MHz channel broadband, the maximum transmission rate is 1000Mbps.
Conductor:
material: solid or stranded copper (Copper Clad Aluminum, Copper Clad Steel, Aluminum, CCAM,CA available)
diameter: 23AWG (24AWG,26AWG,28AWG available)
construction 1/0.57±0.02mm
Insulator
material: HDPE
thickness: 0.24±0.05mm
diameter: 1.04±0.06mm
color: Blue,grey,red or request
elongation rate: Min.300%
tensile strength: Min.1.22kg/mm2
Jacket
material: PVC
thickness: average:0.50mm Min. at any point:0.40mm
diameter: 6.3±0.3mm
color: to your option
elongation rate: Min.125%
tensile strength: Min.1.41kg/mm2
flammability grade: CMX, CM
Application:
100 Base-T4
100 Base-TX
100 VG-AnyLAN
1000 Base-T (Gigabit Ethernet)
155 Mbps ATM
622 Mbps ATM
Electrical function:
1. DC resistance ≤5.8 Ω/100m
2. Resistance imbalance≤2.5%
3. Insulation resistance≥5000MΩ.Km
5. Dielectric strength (DC)
Conductor-conductor 2.5KV/2s
Conductor-shield 6.3KV/2s
8.Working temperature: -50+50 -40+122
Standard:
ANST/TTA/ETL-568-B,YD/T1019-2001
Packing:
