|Type:||Rack-mount Chassis 16slots||Application:||LAN Network|
|Operating Voltage:||DC5V, 12A||Weight:||6.5kg|
sm to mm fiber media converter,
network media converter

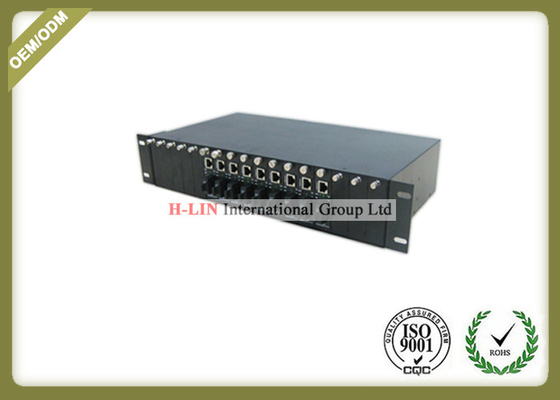

2U Height 16 Slots Rack Mount Chassis with Dual Power for card type 10/100M media converter
H-Lin have two types of rack-mounted chassis for unmanaged media converters :
2-U 14 slots media converter chassis and 2-U 16 slots media converter chassis .
The 16 slots media converter chassis media converter chassis should be used with card-type media converters .
The 16 slots media converter chassis can hold at most 16 card-type converters of 10/100M .
Fiber Optic Media Converter chassis can supply several media converters with power ,this will simple the links and structure , it can work stably and adapt broad width of voltage .It can store strong power and can be operated and managed easily. The maintenance of this chassis is also very easy. This option is the very one to meet the requirements of good stability, high capacity, good integration and good quality.
This option supports hot-swap convert modules .It can work with single power supply or dual power supply as users wish, when the power supply should be maintained or changed ,it is not necessary to pull-out the converters ,this makes the maintenance easy. With all these advantages, this option can supply users with an effective solution of networks.
Number of slots :16
Media converters adapted :
16 slots chassis : 10/100M card-type media converters
Power in :AC 100 V~260 V ; OR DC 48V
Power out :DC 5V , 12A
Diameter of DC plug :2.5/5.5 mm
Noise :≤50 Mv
Protection of power supply :circuit-breaker when overvoltage ;circuit-breaker when overflow ;circuit-breaker when short circuit
Operating Temperature :0℃~50℃
Dimensions:L485 ,W231,H90 mm ;19 inches 2U
FAULT AND MAINTENANCE
1. Finding out the problems.
When the electrical current becomes dangerous, the POWER LED Lamps of chassis will become red with alarm at the same time .When the problems have been cleared, the LED Lamps will back to normal.
If the fuse has blown, or the power supply has broken down, the POWER LED Lamps will be off, and the fans will not work. (The fuse is under the plug, you can pull it out for checking or changing when necessary.)
When the fans of chassis broken down, the POWER LED Lamps will be normal but the fans will not work. If this happens, the power supply must be changed for new ones, and we will do this for users, you should not do it by yourself, or you may break up the option s.
If the power supply of chassis is normal, but the LED Lamps of converters are off, there might be any problems with the connection between the plug board of chassis and the power supply, you should stop the electrical current and pull out the power adapter for checking and reinserting.
2. Changing the power supply for new ones
When one of the dual power supply broken down ,the chassis can work normally ,then you should pull out the broken one then pull out the plug from it ,and change it for another new one ,then connect the plug again. When this is been done ,the chassis and converters will keep working.
When single power supply broken down ,just follow the above steps .But when this is been done ,the converters installed in the chassis will stop working until new power supply works normally.
1. What does H-LIN supply?
Fiber optical assembling and accessories for FTTH solutions
Fiber optical Transmission products for Telecommunications and Networking.
2. How about your price and lead time?
The price is 50-90% off retail price
Lead time is less than 1 week for general products, in some special case, depending on our workrelationship, can prepare goods in advance once the order confirmed.
The good forwarder channel of us can save delivery time and cost for customers.
3. What mode of transportation I can select?
By Express (DHL,UPS,TNT,Fedex…), calculated by gross weight
Advantage: short time, safe, easy(door to door delivery),goods can be sent to appoint address.
Disadvantage: when the size of packing is heavry compared to the actual weight ,the cost is not very workable.And usually only favorable for above than 21kg weight.
By Air (Any flight), calculated by gross weight
Advantage: short time, safe, the cost is lower than by express in general.
Disadvantage: goods just sent to appoint airport, customers need take goods from airport by themselves.
By Sea, calculated by volume
Advantage: very cheap for big qty, safe
Disadvantage: long time
4. What's your product warranty policy?
All our products carry 2 years warranty after shipment.
5. Do you provide free samples?
Yes, some low-value goods can be offered as samples free of charge, the buyer bear the shipping cost in any case.
6. How do I pay?
We accept T/T, western union and L/C, normally it is T/T 100% in advance, when value is more than 20,000usd, we accept 30% in advance, balance before shipment or against copy of B/L.
7. What's your working hours?
Monday-Saturday, 8:00-18:00(Beijing time, GMT+08:00)
8. Can I become an exclusive distributor of H-LIN products in my area?
Yes, it is possible if we have not representative in your region, the best start is to prove your good intention with regular orders over a period of time.
