150H FM radio transmitter used in broadcasting, television, radio communication

Introduction

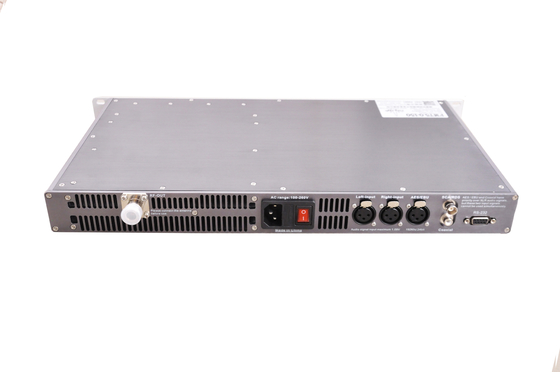

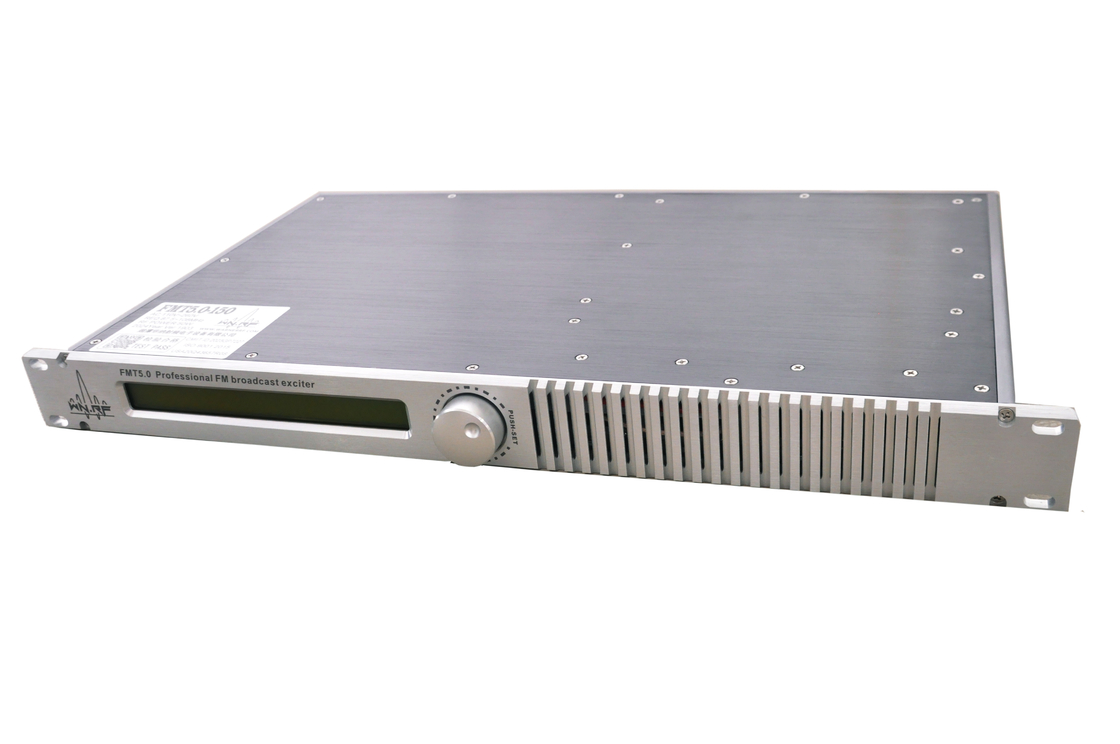

FMT5.0-150H FM radio transmitter is highly reliable, lighter in weight and easier to operate than previous version of transmitter. This transmitter adopts a simple-style design concept. It integrates the 150W FM stereo transmitter exciter, power amplifier, output filter and switching power supply in a 1U high 19-inch standard case, reducing the connecting cables between the components.

Technical Features:

• User-friendly digital LCD panel, using one rotary knob to control.

• The integrated LCD screen displays all the parametric including: transmitter frequency, stereo and mono, volume, amplifier tube temperature, audio signal UV meter, forward power, reflected power, modulation mode, pre-emphasis etc,.

• 1U 19-inch thickened all-aluminium case, strong and excellent heat dissipation.

• Precise PLL frequency generation system, to ensure that the frequency not drift away for more than10 years, with built-in high-quality stereo encoder.

• Outstanding power AGC balance control system, adjustable power output from 0 to 150 watts, and automatic gain power control to maintain output power within set range without drifting.

• Signal input supports XLR and RCA audio inputs, and also SCA and RDS signals using the BNC connector AUX.

• The RF amplifier uses LDMOS transistors to withstand even severe load mismatch exceeding the 65: 1 VSWR at a 5dB compression point.

Technical Parameters: Frequency: 87.5-108MHz Frequency step value: 10KHz

Modulation method: FM, peak deviation ± 75KHz Frequency stability: <± 100Hz

Frequency stabilization method: PLL frequency synthesizer RF output power: 0 ~ 150 W, step 0.1W, error ± 0.5dB Harmonic suppression: ≤-72dB

Inband residual wave: ≤-72dB

Asynchronous AM SNR: ≥-80dB (no modulation) ≥-65dB (400Hz, 100% modulation)
