|Cable Outer Diameter:||11.8mm||Cable Color:||Black|
|Jacket:||PE||Length:||1m,2m,3m,5m ,10m Or As Requested|
|Fiber:||1core,2core,4core Or 12core||Connector:||FC,LC,ST,SC For Option|
optical patch cord,
fiber optic pigtail

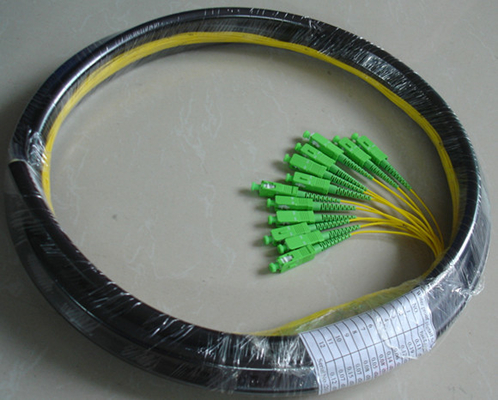

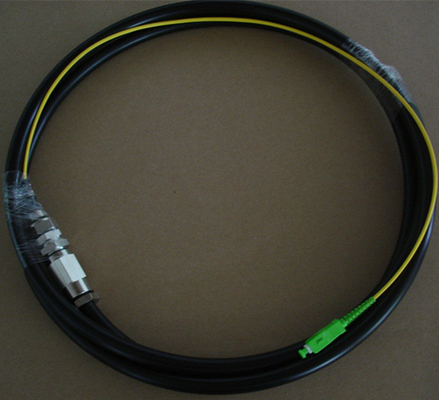

Waterproof 12core Fiber Optic Pigtail with SC APC Connector with coopery waterproof head
Fiber Pigtail is an fiber cable that has fiber connectors installed on one end. General use of these cable assemblies includes the interconnection of fiber cable systems and optics-to-electronic equipment.
When use such waterproof fiber optic pigtail, people do not need to worry that the rodent animals like the rats may bite the cables and make them broken.
1. Cable with loose tube construction, outer sheath made of PE, high tensile strength and crush resisitance.
2. Non-metallic strain relief elemetns
3. Longitudinally and transversely waterproof, due to water blocking fellce and gel-filled loose tubes.
4. No gel between loose tubes
5. Non-metallic rodent protection
6. Cable lengths: Up to 2000m.
7: breakout length 60cm or 40cm,with coopery waterproof head,
Low insertion loss
Ultra low back reflection
Wide operating temperature
Compliance with IEC,YD-T826/1996, NTT, YD/T826,YD/T895,YD/T896 standard.
1:All our patchcord use Sanhuan ceramic ferrule,with brand new Changfei or Corning fiber as customer requested.
2:The connector of patchcord can be with different color boot.
3: Jacket of cable can be marking description as requested.
4:For special marking cable,MOQ is 1km
5:The label of patchcord also can be made as customer's requirement.
Fiber Optic Pigtail packed by fresh film
